NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

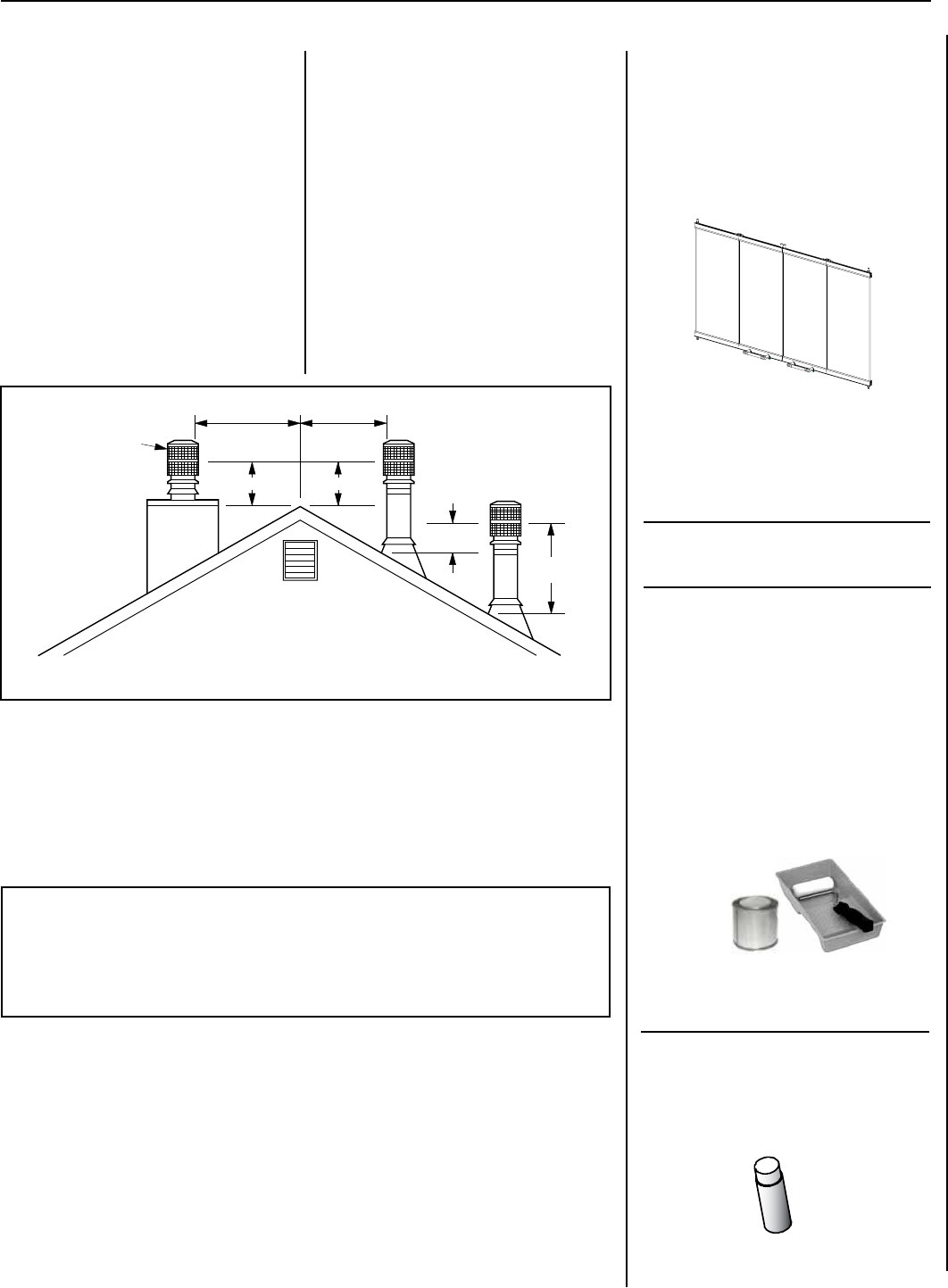

LENNOX HEARTH PRODUCTS • ESTATE™ SERIES WOOD-BURNING FIREPLACES • MODELS EST-36/42/50 • CARE AND OPERATION INSTRUCTIONS
3' Min.
(916mm)
Less Than 10' (3m)
2' Min. (610mm) 2' Min. (610mm)
2' Min.
(610mm)
CTDTM
Shown
Note: Both CTD and CTDTM terminations shown for illustration purposes.
Use appropriate termination for the fireplace model installed.
Figure 5
WARRANTY
This fireplace is covered by a limited warranty detailed separately from this document.
Retain this manual. File it with your other documents for future reference.
PRODUCT REFERENCE INFORMATION
We recommend that you record the following important information about your replace.
Bi-Fold Glass Doors
Your fireplace can be fitted with beautiful, easy-
to-install bi-fold glass doors.
Model LBF doors have a matte black nish.
Model LBF-BS doors have a beautiful brushed
stainless finish.
ACCESSORY COMPONENTS
To ensure warranty and prevent a
potential fire hazard, do not use any
other doors on these appliances.
7. Is your wood fuel too wet or unseasoned?
Or does it contain some chemical substance that
causes sputtering, smoking and toxic fumes?
8. Figure 5 illustrates the correct height of
your chimney top. It is unlikely that your
installation does not adhere to the installation
instructions. However, if not correct, you could
experience an unusual downdraft. Usually,
the best solution is to increase the chimney
height. This may also be necessary if nearby
trees, adjoining roof lines or a hill is causing a
downdraft condition.
9. Remember, your fireplace has been designed
as a supplemental heating device only, it is not
intended to heat your entire home.
Bi-Fold Glass Doors - Black
EST-36 12M17 36LBF
EST-42 H7962 42LBF
EST-50 H7965 50LBF
Bi-Fold Glass Doors - Brush Stainless
EST-36 12M19 36LBF-BS
EST-42 H7964 42LBF-BS
EST-50 H7967 50LBF-BS
5. If smoking occurs an hour or two after light-
ing the fire, perhaps your well-insulated house
is too airtight and there is scarcely any way
for replacement air to enter and feed the fire.
Check to see if your outside combustion air kit
(if installed) is open. Check outside to ensure
no obstructions are in front of exterior air entry.
Open a window slightly, open doors to one or
two rooms and see if this stops the smoking.
6. Is a vent fan, exhaust hood or central heat-
ing/cooling system stealing combustion air
from your replace? If their volume is high
enough, this can cause negative pressure and
an unwanted downdraft – and smoking.
Fireplace Model Number: ____________________________________________________
Fireplace Serial Number: ____________________________________________________
Date Fireplace Installed: _____________________________________________________
Dealer: __________________________________________________________________
Brick Stain Kits
Use the Brick Stain Kit to give unstained
refractory panels a new look or to touch up
existing stained panels. This permanent, high-
temperature refractory panel stain is designed
and approved for use in all new and previously
used masonry fireplaces.
Kit includes foam roller, roller handle, paint tray,
and one can of stain. Available stain colors are
Creamer (ivory), Rust (terra cotta), and Cap-
puccino (rosy taupe).
Creamer H8176 BSK-CR
Rust H8177 BSK-RT
Cappuccino H8178 BSK-CP
Touch-Up Paint
Use the touch-up spray paint to repair minor
scratches and discoloration of the appliance's
black painted surfaces.
Black 90L73 FTPK-B
REPLACEMENT PARTS
A complete parts list is found at the end of this manual. Use only parts supplied from the manu-
facturer.
With proper care and maintenance, your appliance will provide many years of enjoyment. If you
experience any problem, rst refer to the troubleshooting section of this manual. For further as-
sistance or for questions concerning the installation or application of this system, please contact
your Lennox Hearth Products distributor or dealer. For the number of your nearest Lennox dealer,
please call 1-800-9-LENNOX.
