4
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 2
The appliance flue damper must always re-
main open when operating.
2. The grate in the firebox should be centered
on or over the bottom hearth so your fire can
breath properly. Crumble and twist plenty of
newspapers UNDER the grate and criss-cross
some small dry kindling sticks on top of the
paper or on the bottom of the grate.
3. Build a pyramid of three split logs (split will
start much faster). Arrange the uneven wood to
provide plenty of air space between.
4. Now, light the paper at both sides of the
firebox.
5. Close the screens to prevent the escape of
sparks and embers.
6. Close the damper only when your fire is
completely out and ashes are cold. Keep closed
when fireplace is not in use to prevent unneces-
sary loss of heated or cooled air.
GLASS DOOR OPERATING SAFETY
PRECAUTIONS AND INSTRUCTIONS
These fireplaces may be equipped with glass
doors. Refer to the end of this document for a
listing of the glass doors approved for use with
these fireplaces.
HARDWOODS DENSITY
Alser, Red .41
Ash .49-.60
Aspen .38-.39
Basswood, American .37
Beech, American .64
Birch .55-.65
Butternut .38
Cherry, Black .50
Chestnut, American .43
Cottonwood .34-.40
Elm .60.63
Hackberry .53
Hickory, Pecan .60.66
Hickory, True .69-.75
Honey locust .66 (est.)
Locust, Black .69
Magnolia .48-.50
Maple .48-.63
Oak, Red .59-.67
Oak, White .64-.88
Poplar .42
Sassafras .42
Sweet gum .52
Sycamore, American .49
Tanoak .64 (est.)
Tupelo .50
Walnut, Black .55
Willow, Black .39
SOFTWOODS DENSITY
Bald cypress .46
Cedar .31-.47
Douglas Fir .46-.50
Fir .32-.43
Hemlock .40-.45
Larch, Western .52
Pine .39-.59
Redwood .35-.40
Spruce .35-.41
Tamarack .53
STARTING A FIRE
1. To start a fire in a the fireplace properly, first
check the operation of the flue damper.
2. To prevent smoking at start-up, close any
window located near the fireplace when first
lighting a fire. The closed windows may be
reopened once a chimney draft is drawn in the
fireplace.
DAMPER CONTROL
This fireplace is fitted with a manually con-
trolled chimney damper. The chimney damper
should be closed when the fireplace is not in
use to prevent cold air from entering the home
through the chimney system.

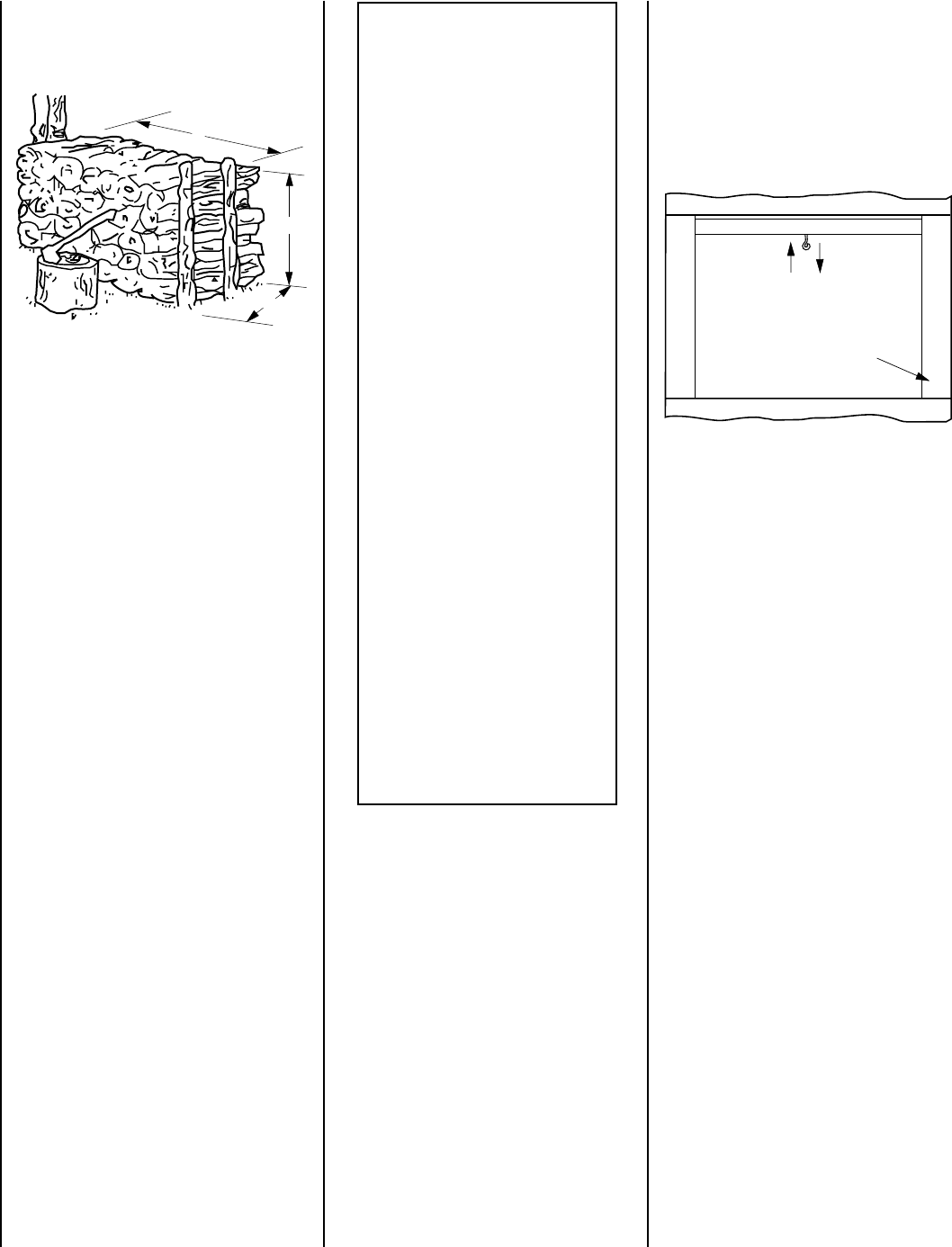

8. Be a knowledgeable wood buyer. There is a
difference in cord sizes. A standard cord stack
of logs is 4 ft. high by 8 ft. long by 4 ft. deep or
the equivalent of this cubic footage, (
Figure 1
).
Damper
Closed
Damper
Open
Combustion
Air Actuator
The damper is controlled through the use of a
control lever located within the firebox open-
ing at the top center just behind the firebox
lintel (
Figure 2
).
The control lever snaps into place at the ex-
treme range of motion, up and back in the
closed position. When pulled forward and
down, the damper is open.
A face cord is the same height and length as a
standard cord but the depth is only the length
of the logs (12, 18 or 24 inches). A face cord
can contain as little as 25% of the wood found
in a standard cord.
If you buy by the ton, remember that wood
becomes lighter as it dries. When buying green
or wet wood, ask for some extra poundage to
allow for the extra water you will be getting.
9. When comparing woods of the same mois-
ture content and same species, we find most
woods have approximately the same heating
potential per pound.
However, most wood is sold by volume, not by
weight. To determine the best heating source,
look at the density of various wood types.
(Density is the weight for a given size.) The
higher the density, the more potential heat
output. A standard cord has a volume of 128
cubic feet. This figure also includes the air
space between and around the wood. The ac-
tual volume in a standard cord is between 60
and 100 cubic feet; depending on how tightly
the wood is packed.
Assuming that you are comparing two standard
cords of different species but the same volume
and moisture content, the denser species will
provide more BTU’s. The table of wood species/
densities reveals more helpful guidelines.
4'
4'
8'
Standard
Cord of
Wood
Figure 1
