NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
4
Printed in U.S.A. © 2006 by Lennox Hearth Products
P/N 750,201M REV. A 05/2008
Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
LHP
1110 West Taft Avenue • Orange, CA 92865

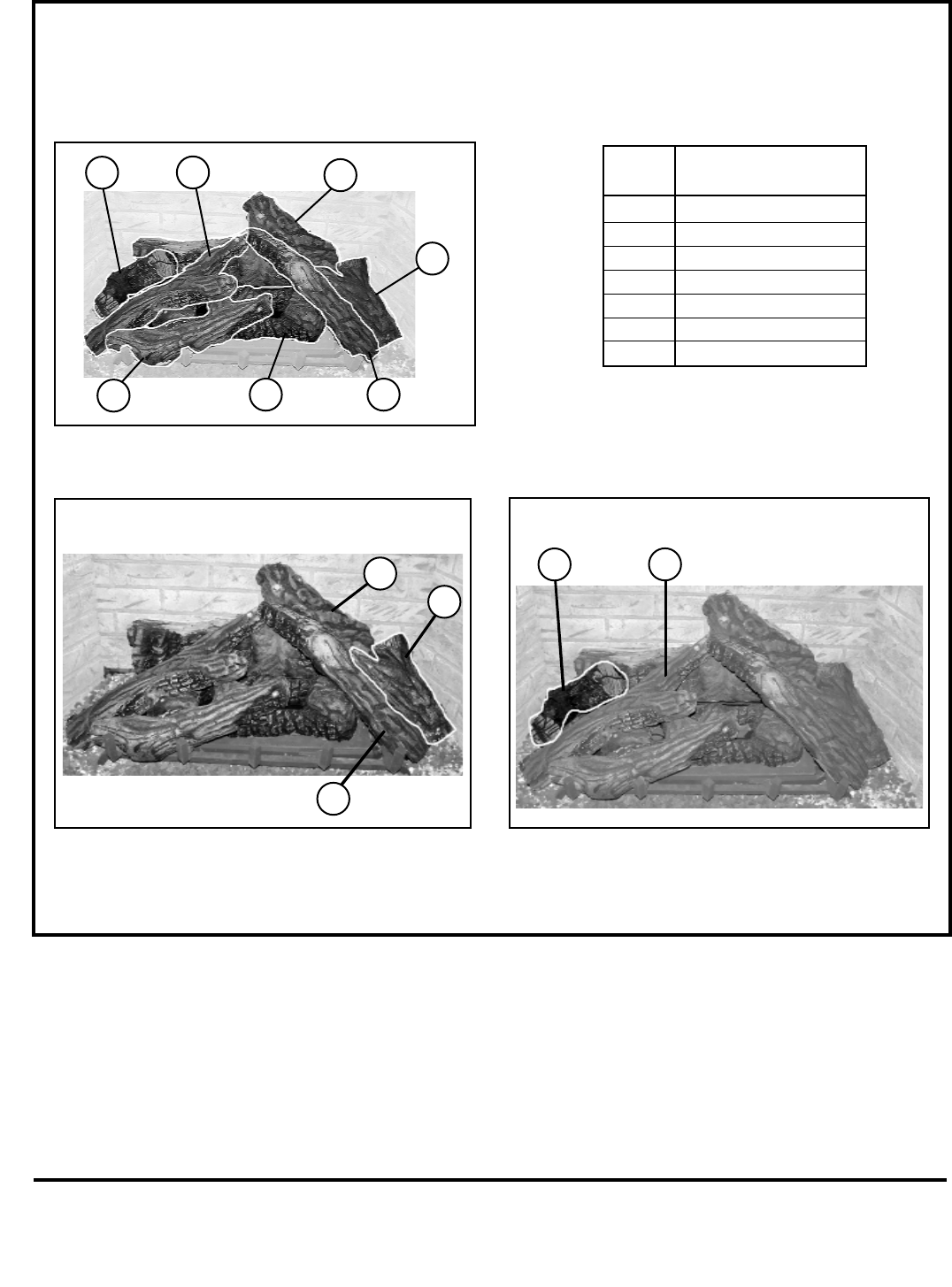

Figure 5
Log
Number Description
1 Log, Center
2 Log, Rear
3 Log, Front
4 Log, Left
5 Log, Right
6 Log, Right/Rear
7 Log, Left/Rear
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Catalog Number for the entire
log set: H4658
ELDV4540 LOG PLACEMENT
(REPEAT STEPS 1 THRU 4 FROM ELDV4035 LOG PLACEMENT AND THEN ADD THE FOLLOWING STEPS)
7
2
51
3
4
6
Step 5
Step 6
Place log (7) over log (4) as shown
Place log (6) between log (2) and log (5) as shown
2
6
5
7
4
