NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
3

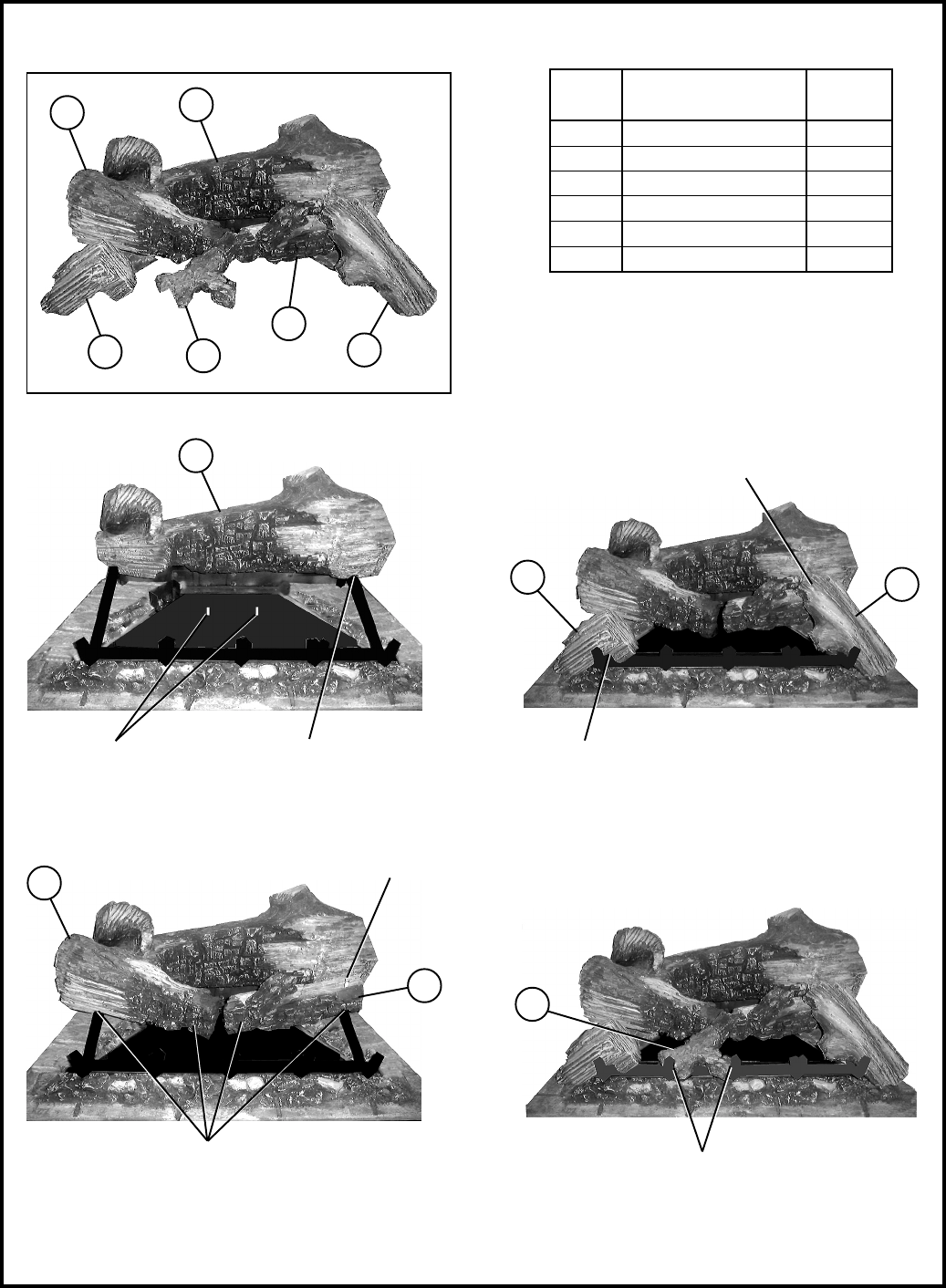

EDV3530 LOG PLACEMENT
Figure 4
Catalog Number for the entire log set: 55M0201
Log Part
Number Description Number
1 Log, Rear 55M0601
2 Log, Diagonal/Left 55M0701
3 Log, Diagonal/Right 55M0801
4 Log, Front/Left 55M0901
5 Log, Top/Right 55M1001
6 Log, Front/Center 55M1101
2
6
3
5
4
1
1
Locating Pins
Align Groove At The Bottom
Of Log (1) Over The Grate And
Push It Towards The Rear.
Align The Holes In One End Of Logs 2 & 3 Over The
Locating Pins And Align The Grooves On The Other
End Over The Grate And Push It Toward The Rear
Locating Pin
2
3
Align The Groove In The Bottom Of Log (4)
Over The Grate And Slide It Toward The Front.
5
4
Align The Hole On The Log (5) Over The Locating Pin
And Postition The Notch Over The Grate As Shown
Position The Grooves On Log (6)
Against The Grate As Shown
6
