OPERATION AND CARE OF YOUR APPLIANCE
WARNING
Young children should be carefully supervised when they are in the
same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict
access to a fireplace or stove, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out of the room
and away from hot surfaces.
AVERTISSEMENT
Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trou-
vent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants
ou les adultes peuvent subir des brûlures s’ils viennent en contact avec
la surface chaude. Il est recommandé d’installer une barrière physique
si des personnes à risques habitent la maison. Pour empêcher l’accès
à un foyer ou à un poêle, installez une barrière de sécurité; cette mesure
empêchera les tout petits, les jeunes enfants et toute autre personne à
risque d’avoir accès à la pièce et aux surfaces chaudes.
Gas Controls/Control Compartment
Access
The gas controls can be found behind the hinged
drop-down panel.
To open the hinged drop-down panel, actuate
the spring loaded magnetic catches securing
the door. First, gently depress the upper right
top corner of the panel until the magnet catch
"pops" the door free. Then, gently pulling the
panel forward, disengage the left magnet catch
and allow the panel to swing down to open.
On millivolt systems, the piezo ignitor, Hi/Lo
flame adjustment knob, and pilot and main gas
ON/OFF control knob are located on the modesty
panel. On both millivolt and electronic systems
the gas valve is located behind the modesty
panel. See Figure 1.
Remove the bottom compartment door by
sliding the hinge pin, located at the door’s left
side, to the right until it disengages from the
left corner post hole. Pull the door diagonally
to the left, away from the fireplace.
To ease door closure, depress the catches to
place them in their retracted position until they
stay there, then close the door.

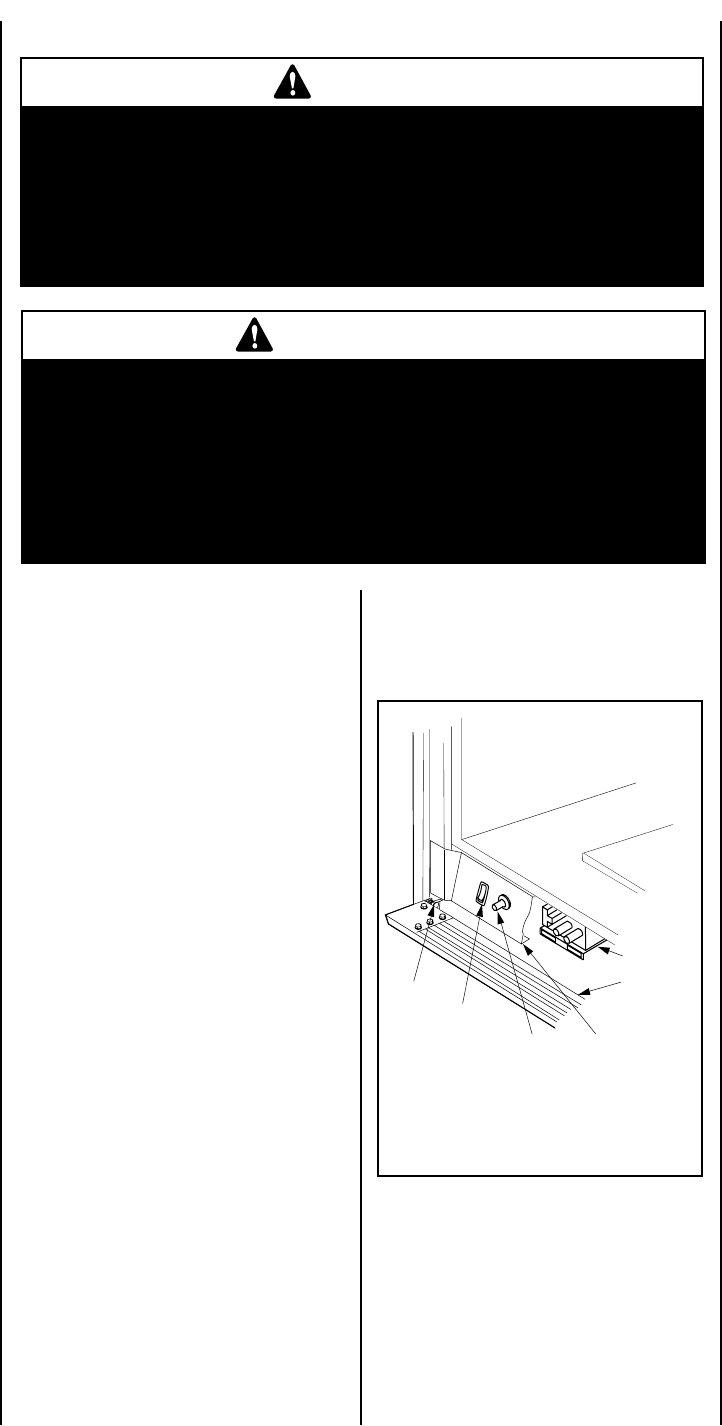

Figure 1
Control Compartment Access -
Millivolt Control Valve Shown
Piezo Ignitor
Gas Valve
Modesty Panel
Control
Compartment
Access panel
ON/OFF
Switch
Hinge Pin
Refer to Figure 1 for access to the gas control
valve. Millivolt appliances will be fitted with the
gas control valve shown in Figure 2.
Appliances with electronic systems will be fitted
with the electronic valve shown in Figure 3.
Familiarize yourself with the gas control valve
that your appliance uses.
Millivolt Appliances -
To light millivolt appliances refer to the detailed
lighting instructions found on page 26 (English)
and page 27 (French). Millivolt appliance
lighting instructions may also be found on the
pull out lighting instruction labels attached to
the gas control valve.
Millivolt appliances are fitted with an ON/OFF
Rocker Switch for appliance ON/OFF control.
Refer to Figure 1 for its location. Once the
pilot is lighted, the ON/OFF rocker switch will
control the appliance ON/OFF operation. To
operate: Toggle the switch between its ON and
OFF positions.
If your millivolt appliance is equipped with an
optional remote wall switch or remote control
kit and the pilot is lit, the appliance main burner
may be turned on and off with the wall switch
or remote control.
Electronic Appliances -
To light electronic appliances refer to the
detailed lighting instructions found in both
English and French on pages 28 and 29 of
these instructions respectively. Electronic
appliance lighting instructions may also be
found on the pull out lighting instruction labels
attached to the gas control valve. Electronic
appliances are fitted with an ON/OFF Rocker
Switch for appliance ON/OFF control. Refer to
Figure 1 for its location.
Once the pilot is lighted, the ON/OFF rocker
switch will control the appliance ON/OFF opera-
tion. To operate: Toggle the switch between its
ON and OFF positions.
If your electronic appliance is equipped with an
optional remote wall switch or remote control kit
the appliance main burner may be turned on and
off with the wall switch or remote control.
Operation of millivolt and electronic gas con-
trol systems are different. Before lighting and
operating your appliance determine if you have
a millivolt or electronic appliance.
