NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
4
Printed in U.S.A. © 2003 by Lennox
P/N 750,161M REV. B 10/2004
Lennox reserves the right to make changes at any time, without notice, in design,
materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
1110 West Taft Avenue • Orange, CA 92865

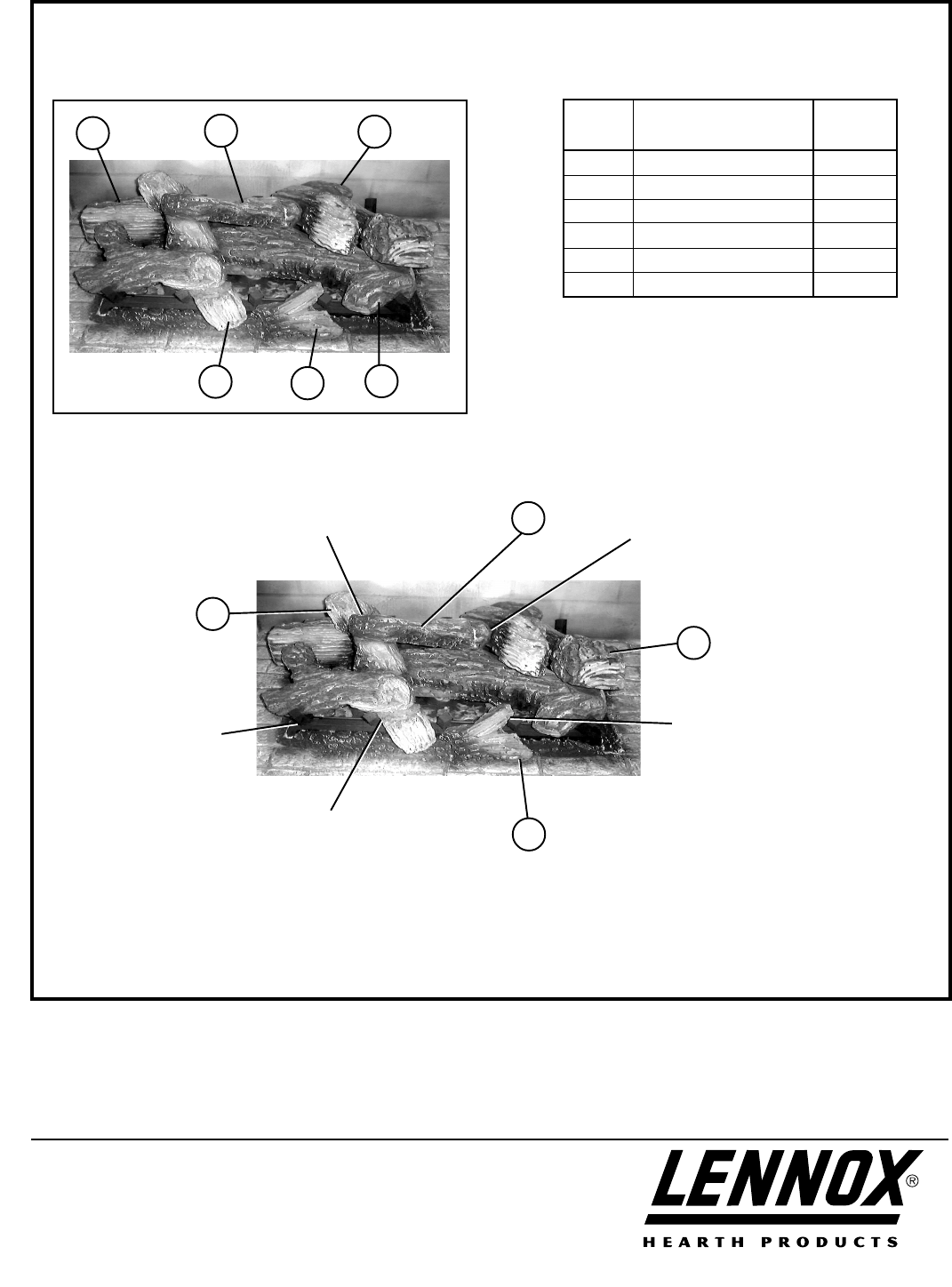

EDVPF, EDVST, EDVCL, EDVCR, EBVPF, EBVST, EBVCL & EBVCR LOG PLACEMENT (CONTINUED)
Catalog Number for the entire log set: 55M0401
Log Part
Number Description Number
1 Log, Corner 55M1801
2 Log, Rear/Left 55M1901
3 Log, Front/Left 55M2001
4 Log, Rear/Right 55M2101
5 Log, Front/Center 55M2201
6 Log, Center/Top 55M2301
2
6
5
4
1
3
Figure 4B
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
3
Grate
Assembly
5
Position Small End Of Log (6)
On The Notch Of Log (3) Here
6
4
Position The Round End Of Log (6)
Against The Notch Of Log (4) Here.
Two Charred Spots Face The Front
Position The Groove In The Back
Of Log (3) Against The Grate
Rest Log (5) Against
The Grate Here
Log (5) Sits In Front
Of The Grate
STEP 5
