Attach hose/cord
hook
Insert tabs on hook into slots on back of
cleaner. Snap hook onto cleaner.
Slide tabs (E) on caddy into slots (F) on
back of cleaner.
4

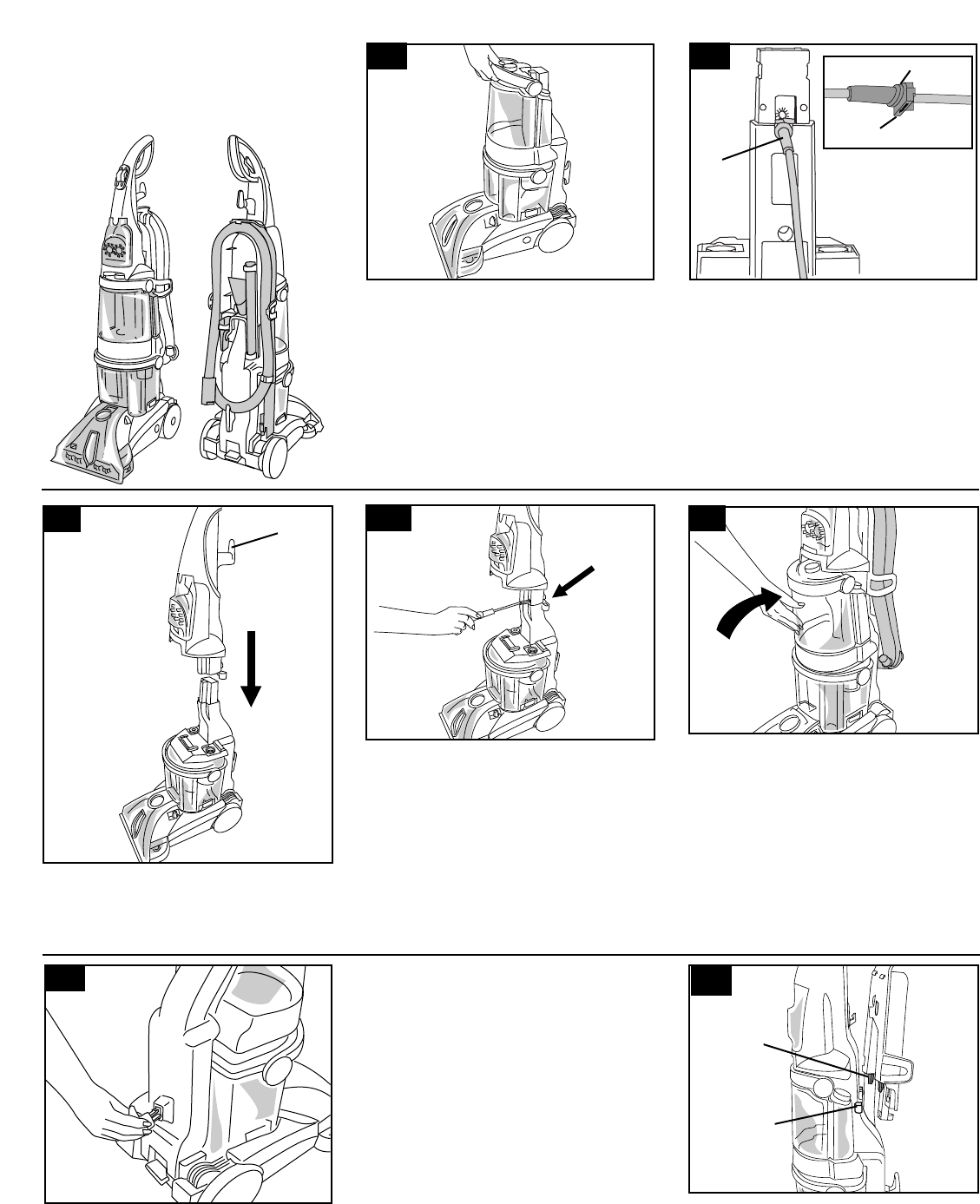

The assembled cleaner will look like this
drawing. Model with SpinScrub™ hand
tool is shown.
1-2
Attach upper handle
Remove clean water tank (upper tank)
from deep cleaner.
With cord hook (D) to back of deep cleaner,
push upper handle down onto lower
handle.
1-4
1-7
Push bolts into holes on front of handle. If
bolts will not go through hole easily, han-
dle is not pushed completely down.
Place nuts in recessed areas on back
of the handle. Hold each nut in place
while tightening each bolt securely (from
the front of the handle) with a Phillips
screw driver.
Only two nuts are needed on this model.
The extra nut is not required but has
been provided for your convenience.
1-5
1-6
Replace clean water tank (upper tank)
by positioning bottom first. Press tank
into place.
E
F
Attach hose/tool caddy
The hose/tool caddy is designed to be
used either on the cleaner for easy
access to the tools and hose, or if the
tools are not going to be used, it can be
removed and hung for storage.
If you do not want to attach the caddy to
the cleaner at this time, proceed to Fig.
1-10 for proper hose placement on the
caddy.
D
1-8
1-3
A
B
C
NOTE: If the cord protector (A) on back
of handle should become dislodged
during unpacking, make sure it is repo-
sitioned properly before continuing
with assembly of your deep cleaner.
With the arrow (B) on the cord protector
pointing down, press groove (C) in the
cord protector into slot in the lower
handle.
