UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown on the cover of this manual as soon
as possible.
INSTALLATION
Read the ENTIRE IMPORTANT
SAFETY INSTRUCTIONS
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Unplug the Fountain Pump
from its electrical outlet
before assembling,
inspecting, making any
adjustments, or servicing.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.

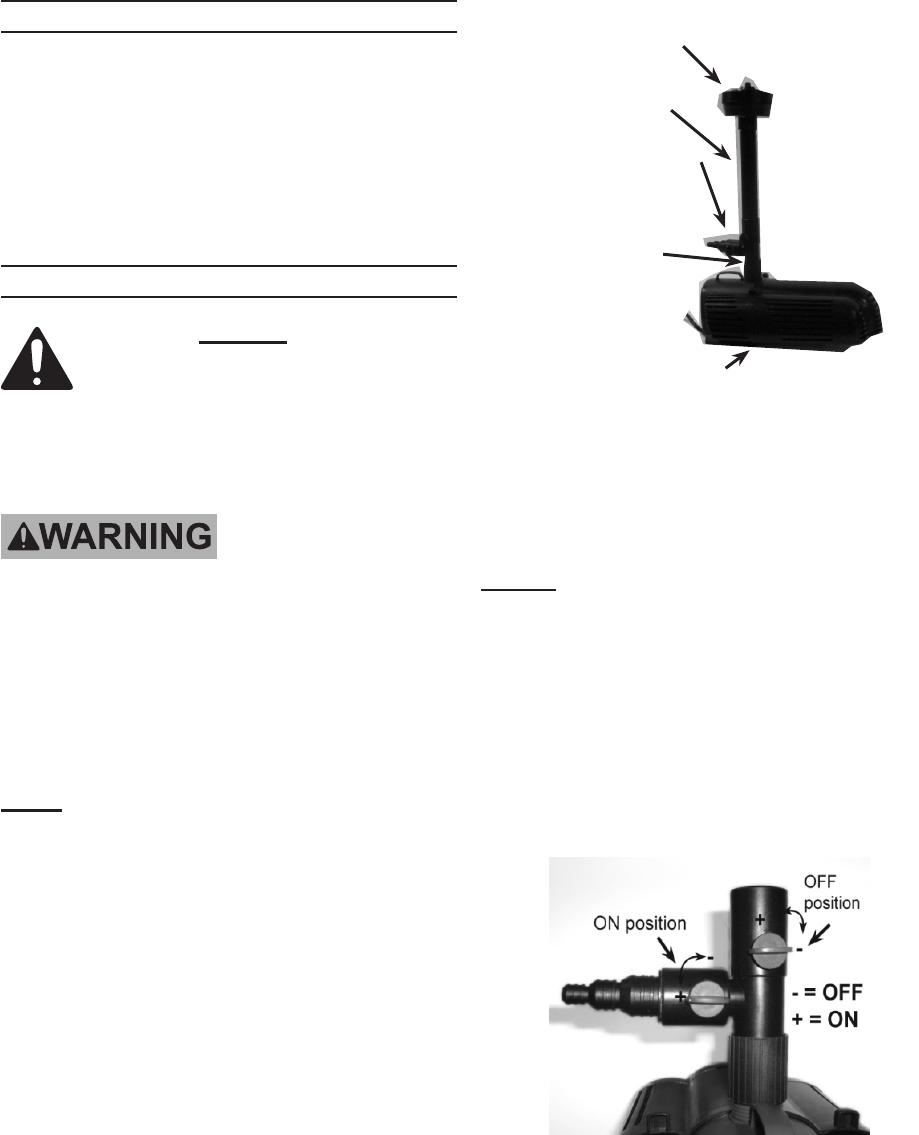

Figure 1
Spray Nozzle (9)
Output Tube (7)
Tee Fitting System
(10)
Coupling
Nut (5)
Main Housing (4)
1. Thread the Coupling Nut (5) to the
Main Housing (4).
Thread the Tee Fitting System (10) to 2.
the top of the Coupling Nut (5).
NOTE: There are two ON/OFF Switches
on the Tee Fitting System (10).
Turning either Switch 90° changes
it from OFF to ON, or ON to OFF.
(Stamped onto the Fountain Pump
parts are PLUS/MINUS symbols
showing either open, or closed.)
See Figure 2.
Figure 2
3. Thread the Output Tube (7) to the top
of the Tee Fitting System (10).
Thread the Bell Nozzle (8), the Bub-4.
bling Nozzle (6), or the Spray Nozzle
