Haier AB244FCAHA Air Conditioner User Manual



AB094FAAHA
AB124FAAHA
AB184FAAHA
AB244FAAHA
AB424FAAHA
AB484FAAHA
AU52LFIAHA
Electrical Wiring
C1
C2
R
R
C1
C2
R
ST
N
Lm1
Lm2
Note:
1:L(black)
2:N(white)
3:C(red)----It's no use for Builtin EEV Type on the indoor unit .
U
V
W
CM
Compressor
26
W B R
1 2 3
POWER SUPPLY:
3N~,380-400V,50 /60Hz
INDOOR UNIT TERMINAL BLOCK
OUTDOOR UNIT TERMINAL BLOCK
Y/G
POWER SUPPLY:1PH,220-230V,50/60Hz
communication
communication
Electrical construction should be made with specific mains circuit by the qualified personnel according
to the installation instruction. Electric shock and fire may be caused if the capacity of power supply
is not sufficient.
During arranging the wiring layout, specified cables should be used as the mains line, which accords
with the local regulations on wiring. Connecting and fastening should be performed reliably to avoid
the external force of cables from transmitting to the terminals. Improper connection or fastness may
lead to burning or fire accidents.
There must be the ground connection according to the criterion. Unreliable grounding may cause
electrical shocks. Do not connect the grounding line to the gas pipe, water pipe, lightening rod and
telephone line.
Warning
Attention
Only copper wire can be used. Breaker for electric leakage should be provided, or electric shock may
occur.
The wiring of the mains line is of Y type. The power plug L should be connected to the live wire and
plug N connected to null wire while should be connected to the ground wire. For the type with auxiliary
electrically heating function, the live wire and the null wire should not be misconnected, or the surface
of electrical heating body will be electrified. If the power line is damaged, replace it by the professional
personnel of the manufacturer or service center.
The power line of indoor units should be arranged according to the installation instruction of indoor units.
The electrical wiring should be out of contact with the high-temperature sections of tubing as to avoid
melting the insulating layer of cables, which may cause accidents.
After connected to the terminal tier, the tubing should be curved into be a U-type elbow and fastened
with the pressing clip.
Controller wiring and refrigerant tubing can be arranged and fixed together.
The machine cant be powered on before electrical operation. Maintenance should be done while the
power is shut down.
Seal the thread hole with heat insulating materials to avoid condensation.
Signal line and power line are separately independent, which cant share one line. [Note: the power line,
connecting line, signal line are provided by users. Parameters are shown as below: 3×(1.0-1.5) mm
2
;
parameters for signal line: 2×(0.75-1.25)mm
2
( shielded line)]

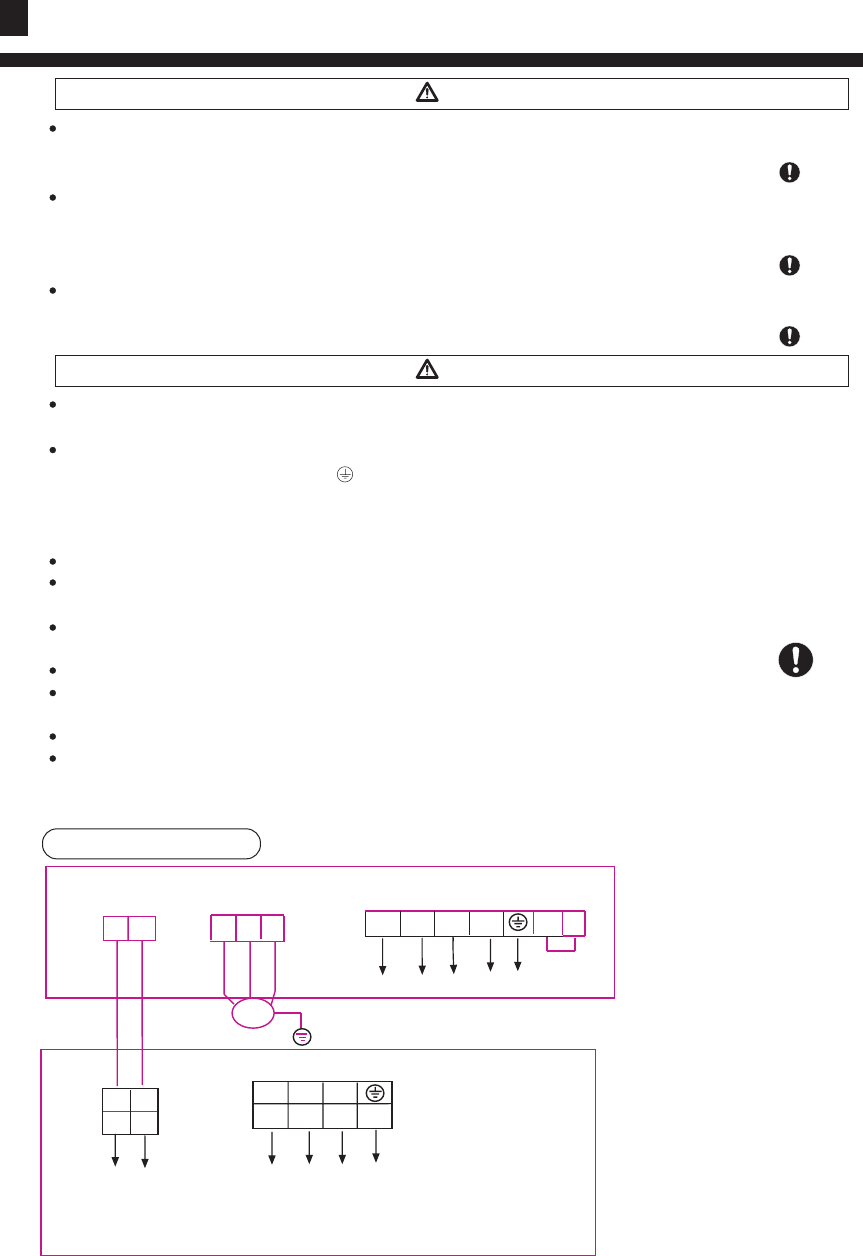

Supply Wiring Drawing
