1. Preparation of decorative panel
The treatment of decorative panel
The decorative panel cannot be put down with the front downwards,
cannot lean on the wall and cannot be put on the extruding objects.
Do not touch louver or force on it, otherwise the louver may have trouble.
(1) Dismantle the air inlet grille from the decorative panel
Pull the pole of the air inlet grille inwards, then lift one end of the pole
(referring to Figure 1).
Lift the air inlet grille for about 45*, dismantle the air inlet grille from the
decorative panel. Then tear off the adhesive tape to fixing the air filter on
the back of the air inlet grille (referring to Figure 2).
**
2.The installation of the decorative panel on the indoor unit.
As Figure 4 shown, make the position of the louver motor of the
decorative panel and the position of nozzle of the indoor unit face to face, then
install the decorative panel on the indoor unit.
(2) Dismantle the corner cover
Tear off the fixing adhesive tape on the corner
cover. When the corner cover can slide,
dismantle the corner cover (referring to Figure
3).
Note: When the air conditioner is under use, the fixing
adhesive tape can be removed, not use any longer.

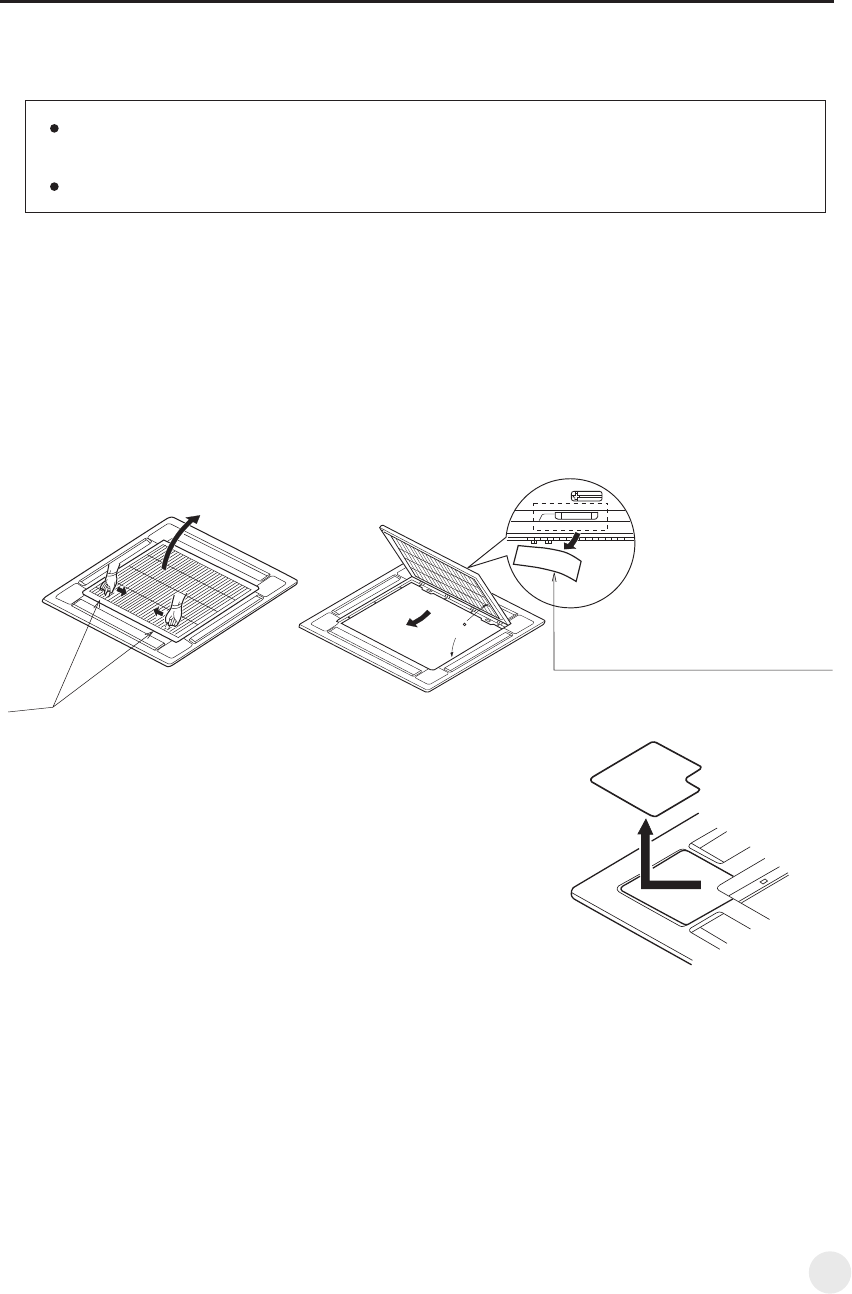

Figure 1
Adhesive tape (2 positions)
Figure 2
Pole
45
31
Installation procedure
Install the decorative panel
Slide
