SS-CKF50
3
P
RODUCT
S
PECIFICATIONS

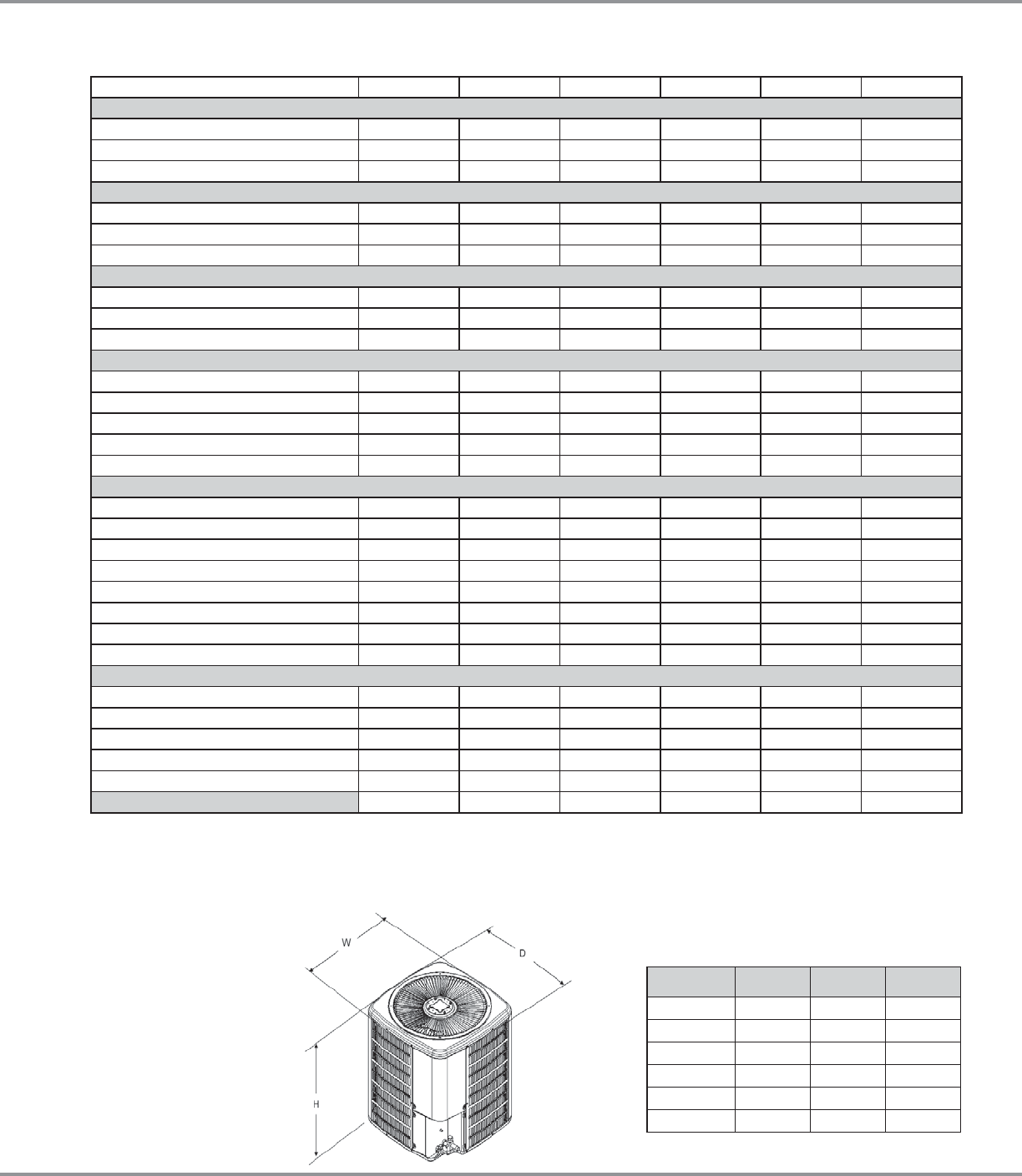

SPECIFICATIONS
CKF24-2* CKF36-2* CKF36-5* CKF48-5* CKF60-5* CKF70-5*
Capacities
Nominal Cooling (BTU/h) 24,600 34,000 34,000 44,000 55,000 64,000
EER¹ 9.0 9.0 9.0 9.0 9.0 9.0
Decibels 76 76 78 78 80 80
Compressor
RLA 12.5 17.9 5.3 7.4 9 10.9
LRA 61 97.4 42 50 74 101
Volts 220-240 220-240 380-420 380-420 380-420 380-420
Condenser Fan Motor
Horsepower 1/4 1/4 1/4 1/4 1/4 1/3
FLA 0.9 0.9 0.8 0.8 0.8 1.2
Volts 220-240 220-240 380 380 380 380
Refrigeration System
Liquid Valve Size (“O.D.) 3/8 3/8 3/8 3/8 3/8 3/8
Suction Valve Size (“O.D.) 3/4 3/4 7/8 7/8 7/8 7/8
Valve Type Sweat Sweat Sweat Sweat Sweat Sweat
Refrigerant Charge 88 89 89 113 121 153
Shipped with Orifi ce Size 0.059 0.068 0.068 0.078 0.093 0.096
Condenser Fan / Coil
Horsepower - RPM 1/4-950 1/4-950 1/4-950 1/4-950 1/4-950 1/3-1075
Fan Diameter/ # Fan Blades 20/3 20/3 20/3 22/3 22/3 22/3
Outdoor Nominal CFM 1800 1800 1800 2400 2600 3200
Face Area (ft²) 13.3 13.3 13.3 15.6 17.1 20
Rows Deep/ Fins per Inch 1/19 1/19 1/19 1/19 1/19 1/22
Fin Type Ripple Ripple Ripple Ripple Ripple Ripple
Coil No. of Tubes 22 22 22 22 24 36
Coil Tube Diameter (in.) 0.375 0.375 0.375 0.375 0.375 0.375
Electrical Data
Voltage-Hz / Phase 220/240-50/1 220/240-50/1 380/415-50/3 380/415-50/3 380/415-50/3 380/415-50/3
Min. Circuit Ampacity² 16.6 23.3 7.5 10 12 14.8
Max. Overcurrent Protection (amps)³ 25 40 15 15 20 20
Min / Max Volts 198/264 198/264 342/456 342/456 342/456 342/456
Power Supply Conduit Size 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Ship Weight (lbs-[kg]) 180 (82) 184 (84) 184 (84) 191 (87) 210 (95) 228 (104)
¹ Energy Effi ciency Ratio
² Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.
³ Must use time-delay fuses or HACR-type circuit breakers of the same size as noted.
Note: Always check the S&R plate for electrical data on the unit being installed.
Model Width Depth Height
CKF24-2* 26 26 29¾
CKF36-2* 26 26 29¾
CKF36-5* 26 26 29¾
CKF48-5* 29 29 29¾
CKF60-5* 29 29 32¼
CKF70-5* 29 29 38¼
DIMENSIONS
