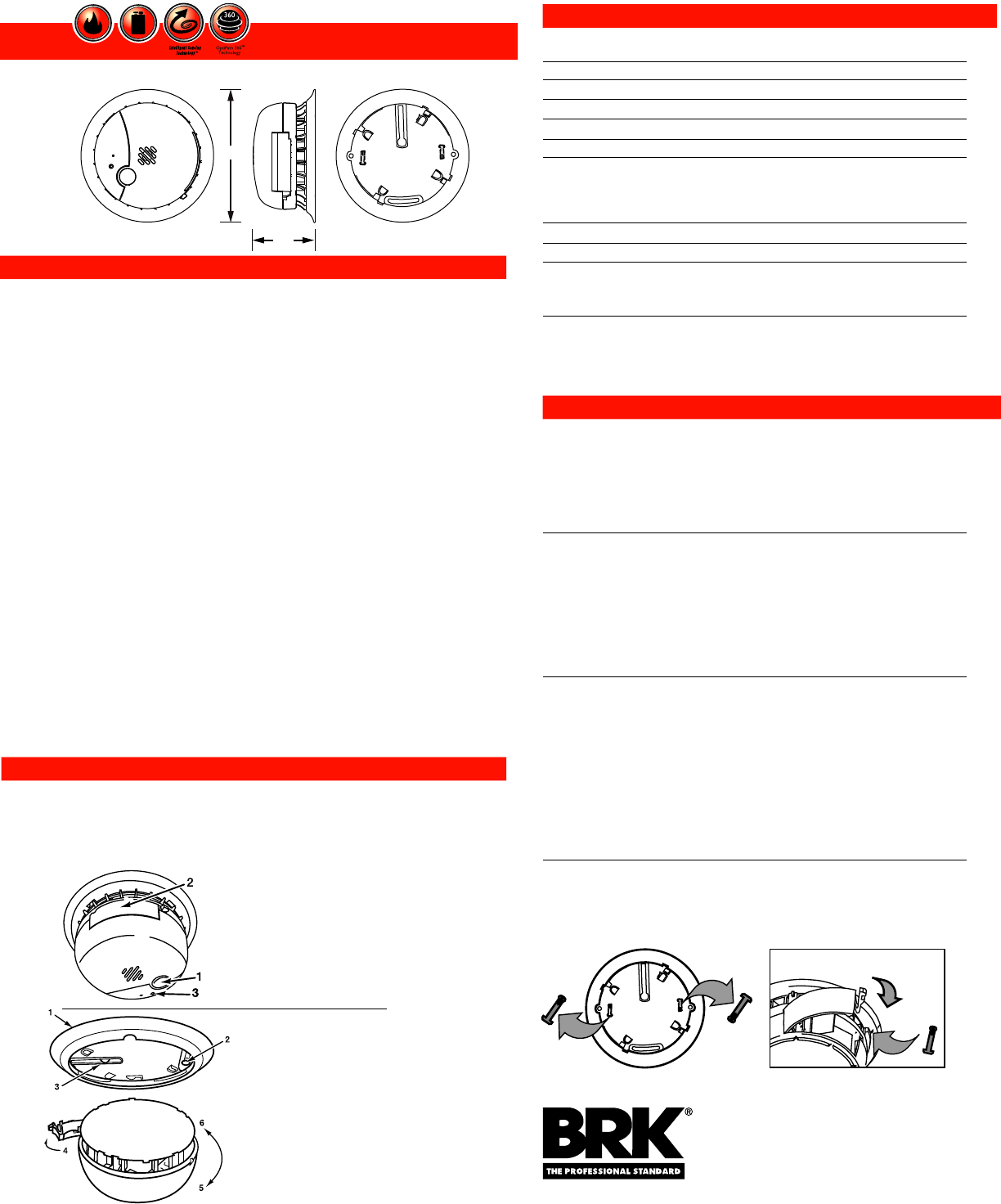

ARCHITECTURAL AND ENGINEERING SPEC
5.69”
TOP
VIEW
2.8”
INSTALLATION OF ALARM
The smoke alarm shall be a First Alert Model SA302 and shall provide at a minimum the
following features and functions:
1. Two sensing chambers - photoelectric and ionization.
2. The unit shall be capable of self restoring.
3. Fully screened sensing chambers to resist entry of small insects
thereby reducing the probability of unwanted alarms.
4. Powered by a supervised 9V alkaline battery and a solid state piezo horn
rated at 85dB at 10 ft.
5. A visual red LED power-on indicator to confirm unit is receiving power or
is in alarm.
6. A full function test button should check all alarm functions by simulating a smoke
condition, causing the unit to alarm.
7. An infrared remote (IR) feature to test and/or silence the alarm with most
standard IR remote controls.
8. Two silence features - One to temporarily silence the low battery chirp for up
to eight hours and one to silence unwanted nuisance alarms for several minutes.
9. Optipath 360 Technology - provides 360 degrees of direct access to the
smoke sensing chambers.
10. Two Locking features - tamper resistant locking pins that lock battery drawer
and/or alarm to mounting bracket.
11. The unit shall be capable of operating between 40°F (4°C) and
100°F (38°C) and relative humidity between 10% and 90%.
12. The unit shall contain mounting hardware and shall be listed for wall
or ceiling mounting.
13. The unit shall at a minimum meet the requirements of UL217, CSFM,
NFPA 72, NFPA 101, ICC.
Installation of this smoke alarm must conform to NFPA 72. Always check your local
building codes. Follow all instructions for placement as outlined in the user’s manual.
SHIPPING SPECS:
TECHNICAL SPECS
Individual Carton Dimensions 5.75 ”L x 2.875”W x 5.83”H
Weight 0.72lbs.
Cube 0.056 ft3
UPC 0 29054 14200 9
Master Carton Dimensions 12.063”L x 9.125”W x 6.563”H
Master Pack 6
Weight 4.78lbs.
Cube 0.418 ft3
I2 of 5 100 29054 14200 6
Pallet Information
Cases per Layer 15
Number of Layers 7
Cases per Pallet 105
Units per Pallet 630
Cube 56.6 ft3
Weight 567 lbs.
Alarm Dimensions: 5.69” dia x 2.8”H
Weight: 9.5 oz.
Operating Voltage: 9V Alkaline Battery Powered
Temperature Range: 40°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 90% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke condition,
causing the unit to alarm
Remote: Use vol/chn buttons on most household IR remotes.
Manual: Press and hold test/silence button
Alarm Reset: Automatic when smoke clears
Smoke Sensors: Sensor 1: Photoelectric; Sensor 2: Dual Ionization
Indicator Lights/Sounds:
DC Power: Intermittent Red Light
Alarm: Audio alarm, rapidly flashing red light
Listing: Listed to UL217 Standard
SIDE
VIEW
MOUNTING
BRACKET
CAT.
SA302B
©2009 BRK Brands, Inc. a Jarden Corporation
Company (NYSE: JAH)
3901 Liberty Street Road
Aurora, IL 60504-8122
All rights reserved
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM2947
THE PARTS OF THIS SMOKE ALARM
BOTTOM OF ALARM
1. Mounting bracket
2. Horizontal
mounting slot (1 of 2)
3. Vertical
mounting slot (2 of 2)
4. Battery Drawer - Install
9V battery here
5. Turn this way to
remove from bracket
6. Turn this way to
attach to bracket
TOP OF ALARM
1. Test/Silence button
2. Swing-open
battery drawer
3. Red Alarm Light
BATTERY DRAWER LOCK
Remove Pin
Close Door. Insert Pin in
Hole by Battery Drawer
