AIR CLEANING FILTER (OPTIONAL)
10. The AirCare® filter has four tangs that engage into four keyhole slots that mount the
AirCare® filter onto the outside of the back of the cabinet. (See figure C)
CHASSIS/POWER PACK
11. Place the chassis/power pack unit into the cabinet, so it fits without tipping or rocking.
12. Fill the bottle water. If you only have softened water available in your home, you can use it,
but you will notice a buildup of minerals on the wick much sooner. The bottle holds 2.5
gallons. When filling, be careful not to pressurize it by overfilling. Bottle damage can result
from this. A fill hose is provided with your humidifier which will fit most faucets. Place the
water bottle into the left side of the humidifier with the valve cap end down, so that the groove
in the water bottle faces the inside. (D) Replace the water bottle cover.

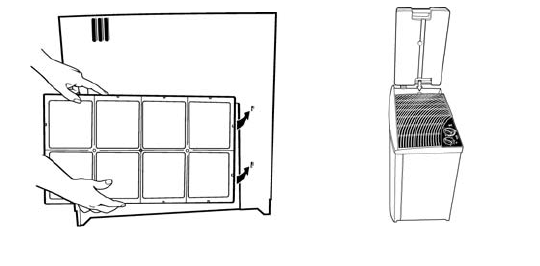

Figure C Figure D
NOTE: We recommend using Essick Air Bacteriostat treatment when you refill the water
bottle to eliminate bacterial growth. Add bacteriostat according to the instructions on the
bottle and then tighten the valve cap on your water bottle.
NOTE: For optimum running time, fill the water bottle, tighten the cap, and place inside unit,
allowing it to completely drain into the water reservoir. Then refill the bottle and replace in
the cabinet. Do not fill the reservoir bucket, as overfilling will result in water damage. Use
only the bottle provided.
