ASSEMBLY
CASTERS
4) Turn the emptied cabinet upside down. Insert each caster stem into the four caster holes
in each corner of the humidifier bottom. The casters should fit snugly and be inserted
until the stem shoulder reaches the
A.
cabinet surface. Do not force.
5) Turn the cabinet right side up.
EVAPORATIVE WICK

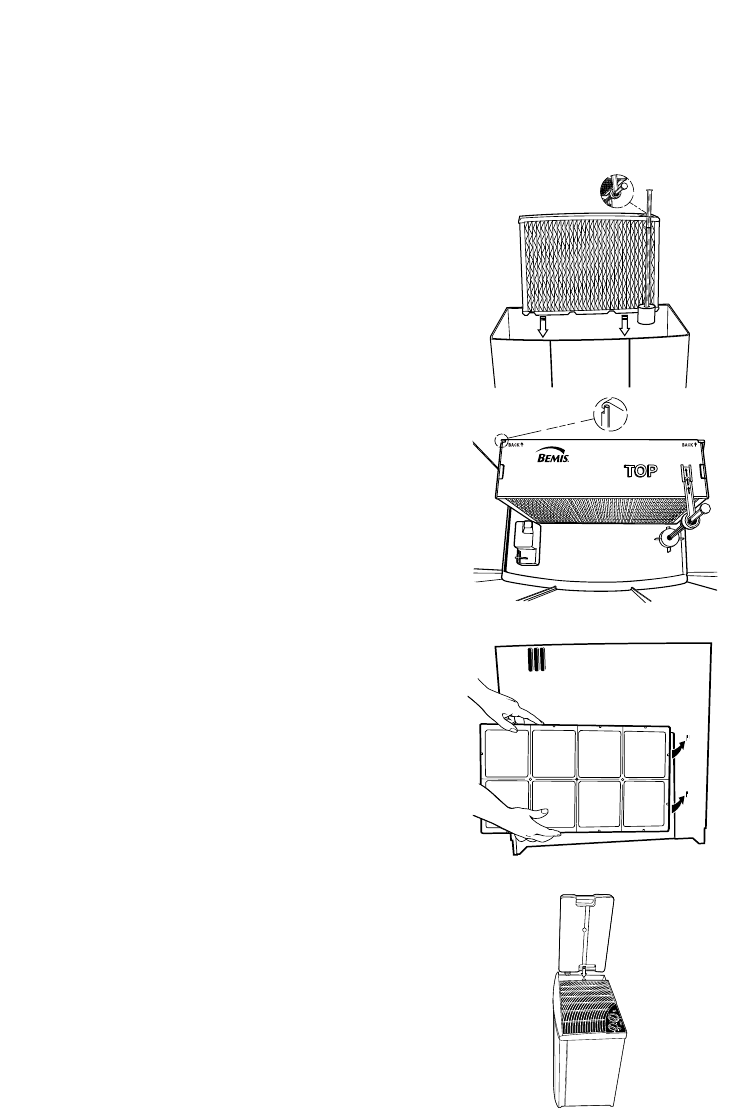

6) When placing the wick back into the humidifier,
the rod and float assembly must also be reat-
tached. Insert the top of the float rod through the
hole on the extended wick retainer (attached to
the top of the wick frame) (A). Holding
B.
the float in place, lower the wick and float
assembly together into the cabinet. The wick has
a mounting rib on the top edge which hooks over
a rib at the inside back of the cabinet. The white
float must be positioned into the pocket in the
bottom of the cabinet. (B)
AIR CLEANING FILTER
(OPTIONAL)
7) The AirCare filter has four tangs
C.
that engage into four keyhole slots that mount
the AirCare filter onto the outside of the back of
the cabinet. (C)
CHASSIS/POWER PACK
8) Place the chassis/power pack unit into the cabi-
net, so it fits without tipping or rocking.
BOTTLE
9) Fill the bottle with cool, fresh
D.
(preferably unsoftened) water. If you only have
softened water available in your home, you can
use it, but you will notice a buildup of minerals
on the wick much sooner.
The bottle holds 2.5 gallons. When filling, be
careful not to pressurize it by overfilling. Bottle
damage can result from this. A fill hose is provid-
ed with your humidifier which will fit most
faucets.
Place the water bottle into
the left side of the humidifier with the valve cap end down, so
