NOTES ON LOCATION:
In order to get the most effective use from your humidifier, it is important to
position the unit where the most humidity is needed or where the moist air will be
circulated throughout the house such as near a cold air return. If the unit is
positioned close to a window, condensation may form on the window pane. If this
occurs the unit should be repositioned in another location.
Do NOT position the unit directly in front of a hot air duct or radiator. Do NOT
place on soft carpet.
Due to the release of cool, moist air from the humidifier, it is best to direct air away
from thermostat and hot air registers. Position humidifier next to an inside wall on
a level surface at least 4 inches away from the wall or curtains.
ASSEMBLY
1. Open the carton and lift out the humidifier.

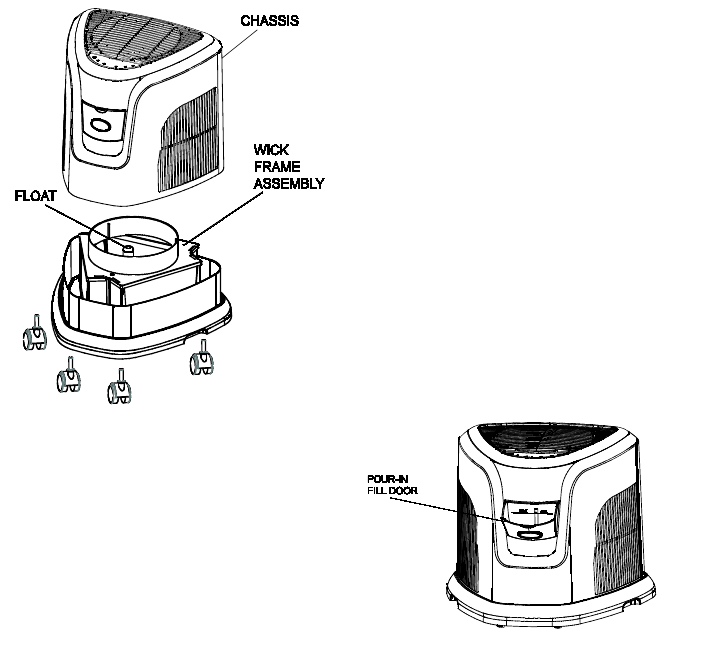

2. Lift the humidifier chassis (top part) off the base to locate the accessory kit
inside, including:
♦ Caster kit
♦ Evaporative Wicks (One set of 3)
♦ Bacterial treatment sample
♦ Manual
CASTERS
3. Remove wick frame and float
assembly from base.
4. Turn the base upside down.
Insert each caster stem into a
caster hole on each corner of
the humidifier bottom. The
casters should fit snugly and
be inserted until the stem
shoulder reaches the cabinet
surface.
5. Turn the base right side up.
6. Replace wick frame
assembly and float back in
place.
WATER FILL
CAUTION: Before filling, ensure unit is
turned OFF. Keep grille dry at all times.
WARNING: To reduce the risk of fire or
shock hazard, DO NOT pour or spill water
into control or motor area. If controls get wet,
let them dry completely and have unit
checked by authorized service personnel
before plugging in.
4
