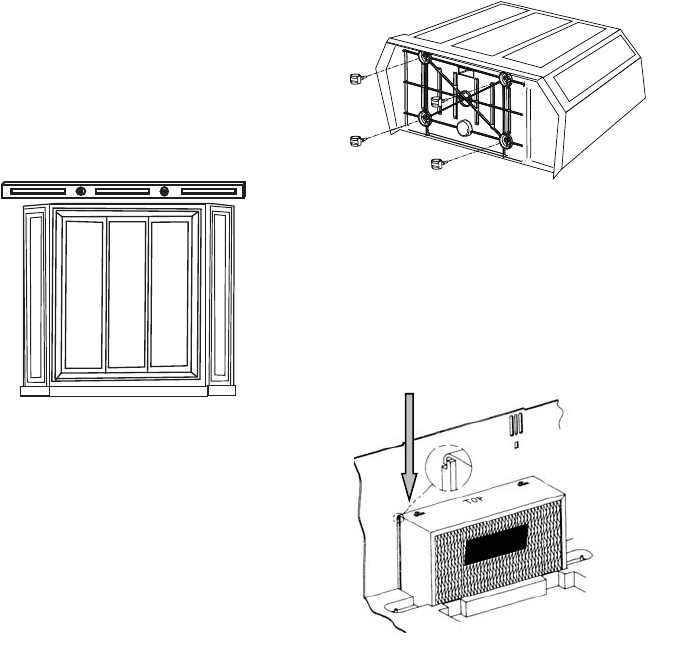

ASSEMBLY
UNPACKING AND SETTING UP THE UNIT
1. Remove humidifier from carton.
2. Lift off the top grille. Remove water bottles and lift off the chassis/power pack.
3. Remove the evaporative wick and all of the remaining packaging materials from
the cabinet. Check to see that you have all of the following items removed from
the boxes, accessory kit, and cabinet before discarding the packaging:
♦ Filler Hose ♦ Evaporative Wick
♦ Caster kit ♦ Two Water Bottles
♦ Bacterial treatment sample ♦ Float and support with two screws
♦ Manual
CASTERS
4. With access to the bottom of the
cabinet, insert each caster stem
into a caster hole on each corner
of the humidifier bottom. The
casters should fit snugly and be
inserted until the stem shoulder
reaches the cabinet surface. Turn
the cabinet right side up.
NOTE:
To ensure both bottles will empty properly, use a
bubble level to verify the humidifier cabinet is
placed on a level surface.
EVAPORATIVE WICK
5. Insert the 1041 wick into the unit.
The wick has a mounting rib on
the top edge which hooks over
a rib at the inside back of the cabinet.
This allows the wick to hang in the
water channel (see cutaway illustration
for details). Hang wick into cabinet as
shown.
1041 WICK
1041 WICK
