Filter
Top Products
Remote Control
Air Outlet
Emergency
On/Off
Switch
Evaporator Air
Intake
Evaporator
Air Intake
Cable Hook
Drainage Pipe
Power Supply
Continuous drain hole (for Cooling/
Heating unit only)
READ ALL SAFETY INFORMATION BEFORE USING
1) All wiring must comply with local and national
electrical codes and be installed by a qualified
electrician. If you have any questions regarding
the following instructions, contact a qualified
electrician.
2) Check available power supply and resolve any
wiring problems BEFOREinstallation and
operation of this unit.
3) This appliance draws 11.5 nameplate amps
under Cooling Mode and may be used in any
properly wired, general purpose 15 amp
household grounded receptacle.
4) For your safety and protection, this unit is
grounded through the power cord plug when
plugged into a matching wall outlet. If you are not
sure whether the wall outlets in your home are
properly grounded, please consult a qualified
electrician. DO NOT USE PLUG ADAPTERS OR
EXTENSION CORDS WITH THIS UNIT. If it is
necessary to use an extension cord with this unit,
use an approved “air conditioner” extension cord
only (available at most local hardware stores).
5) The manufacturers nameplate is located on the
rear panel of the unit, and contains electrical and
other technical data specific to this unit.
6) To avoid the possibility of personal injury,
always disconnect the power supply to the unit
before installing and/or servicing.
TABLE 1
Suggested Individual Branch Circuit
Nameplate Amps *AWG Wire Size
11.5 14
AWG- American Wire Gauge
*Based on copper wire at 105°C temperature rating.
TABLE 2
Receptacle and Fuse Types
Rated Volts 125
Amps 15
Wall Outlet
Fuse Size 15
Time Delay Fuse Plug Type
(or Circuit Breaker)

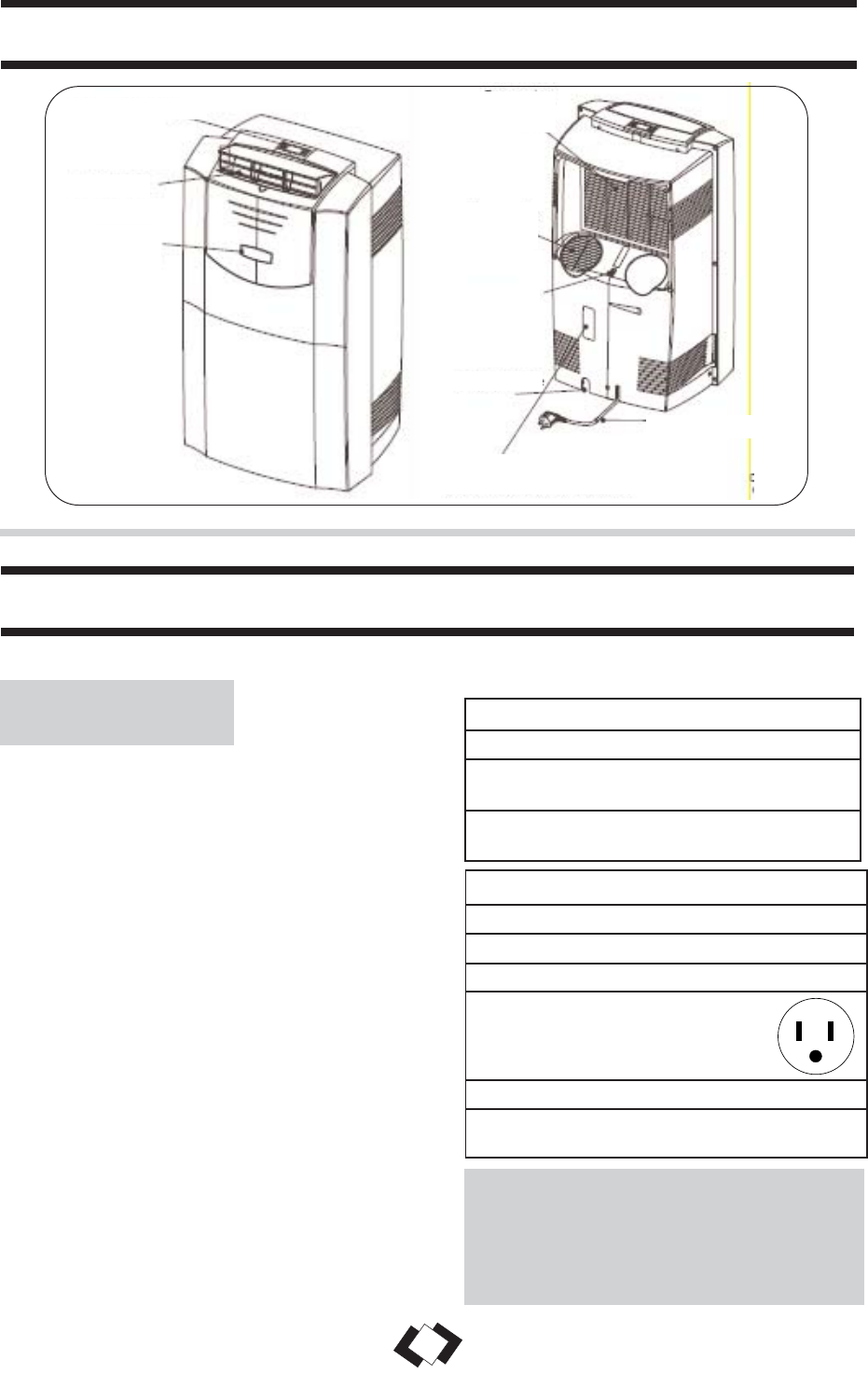

PART IDENTIFICATION
IMPORTANT SAFETY INFORMATION
ELECTRICAL
SPECIFICATIONS
CAUTION: Do not leave this unit
unattended in a space where people or
animals cannot react to a failed unit are
located. A failed unit can cause extreme
overheating or death in such an
enclosed, unattended space.
3
