5) Place the Battery Compartment Cover
over the Battery Compartment.

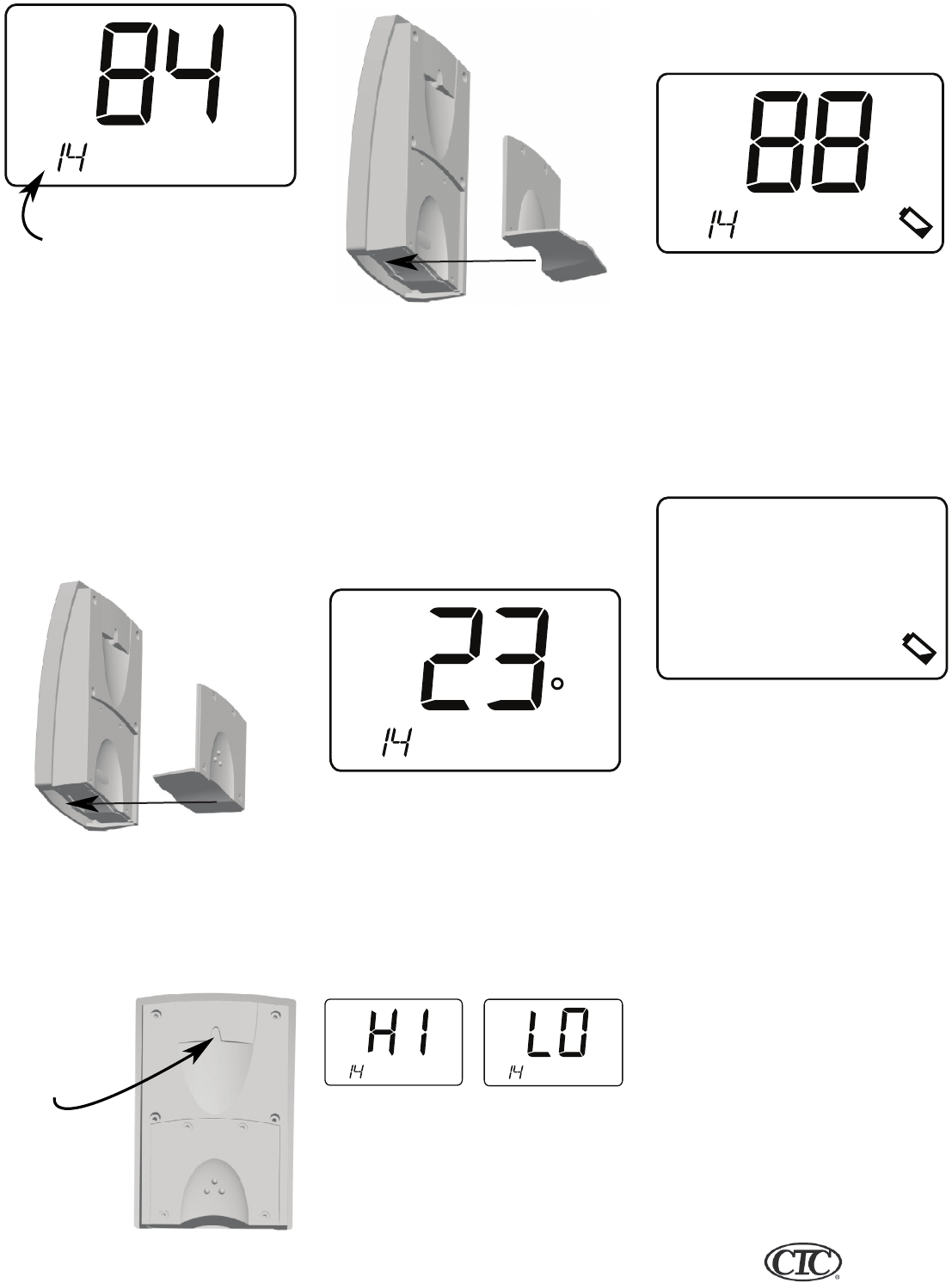

6) For Wall Mounting
a. Replace the Outer Cover as
shown in Figure 8. Use the four screws to
secure the Outer Cover.
b. Use the provided screw to
mount the Remote Sensor on a wall or other
vertical surface. The back of the Remote
Sensor has a Wall-Mount Indent from which
it will hang from the provided screw. See
Figure 9
Figure 8
Wall-Mount
Indent
Figure 9
6) To Set the Remote Sensor on a Table
a. Replace the Outer Cover as
shown in Figure 10. Use the four screws to
secure the Outer Cover.
b. Rest the Remote sensor on the
horizontal surface of your choice.
Figure 10
Indications
Ch
TEMP
Ch
TEMP
Normal Temperature Indication
If your Remote Sensor is set to show the
temperature in Celsius, the display will show
the ºC indication next to the temperature.
See Figure 11.
Ch
TEMP
C
Figure 11
Temperature Measurement Range
Your Remote Sensor will show temperatures
from -40ºF to 122ºF (-40ºC to 50ºC). If the
temperature is greater than 122ºF (50ºC),
the LCD will show “HI”. See Figure 12A. If the
temperature is lower than -40ºF (-40ºC), the
LCD will show “LO”. See Figure 12B.
Figure 12A
Figure 13
Figure 12B
Low Battery Indication
When your Remote Sensor’s battery is run-
ning low, the LCD will show the flashing Low
Battery Indication to remind you to install
two fresh AA Alkaline batteries at your eali-
est convenience. See Figure 13. At this point
your Remote Sensor will continue to func-
tion normally.
Ch
TEMP
Depleted Battery Indication
If your Remote Sensor’s battery is depleted
to the point that the LCD is showing only
the flashing Low Battery Indication, as in
Figure 14, your Remote Sensor has ceased
functioning and will continue in this condi-
tion until two fresh AA Alkaline batteries are
installed. Without further attention, the LCD
will eventually go blank.
Your Remote Sensor will return to normal
operation when fresh batteries are installed.
Figure 14
Troubleshooting
Problem: LCD is Blank.
Solution: Make certain your Remote Sensor’s
batteries are 1) installed correctly, with po-
larities correctly positioned, and 2) fresh.
Problem: Thermostat is not showing the
same temperature as the Remote Sensor.
Solution: Make certain you have the correct
Remote Sensor selected at your thermostat
(if you are using more than one Remote Sen-
sor).
4. The Remote Sensor Screen will display
the ambient temperature and, in the bot-
tom-left corner, a channel number between
0 and 15. See Figure 7. This will be the chan-
nel to which you will set the thermostat to
read the Remote Sensor. See the Thermo-
stat Instruction Manual, page 14, Option 8.
Ch
TEMP
3. The LCD Display will then show the nor-
mal operating screen. See Figure 7. NOTE: It
may take up to 30 seconds for the thermo-
stat to "pick-up" the sensor.
Figure 7
Channel
If you require further assitance, call Climate
Technology Corp. Technical Assistance at
1-800-676-7861 from 7am to 7pm Central
Time Monday thru Friday and 8am to 5pm
on Saturday.
