Pre-Construction Wall Mount Kit for TPS-6X-DSW Crestron PMK-6X-DSW
The dimensions of the PMK-6X-DSW are shown below and on the following page.

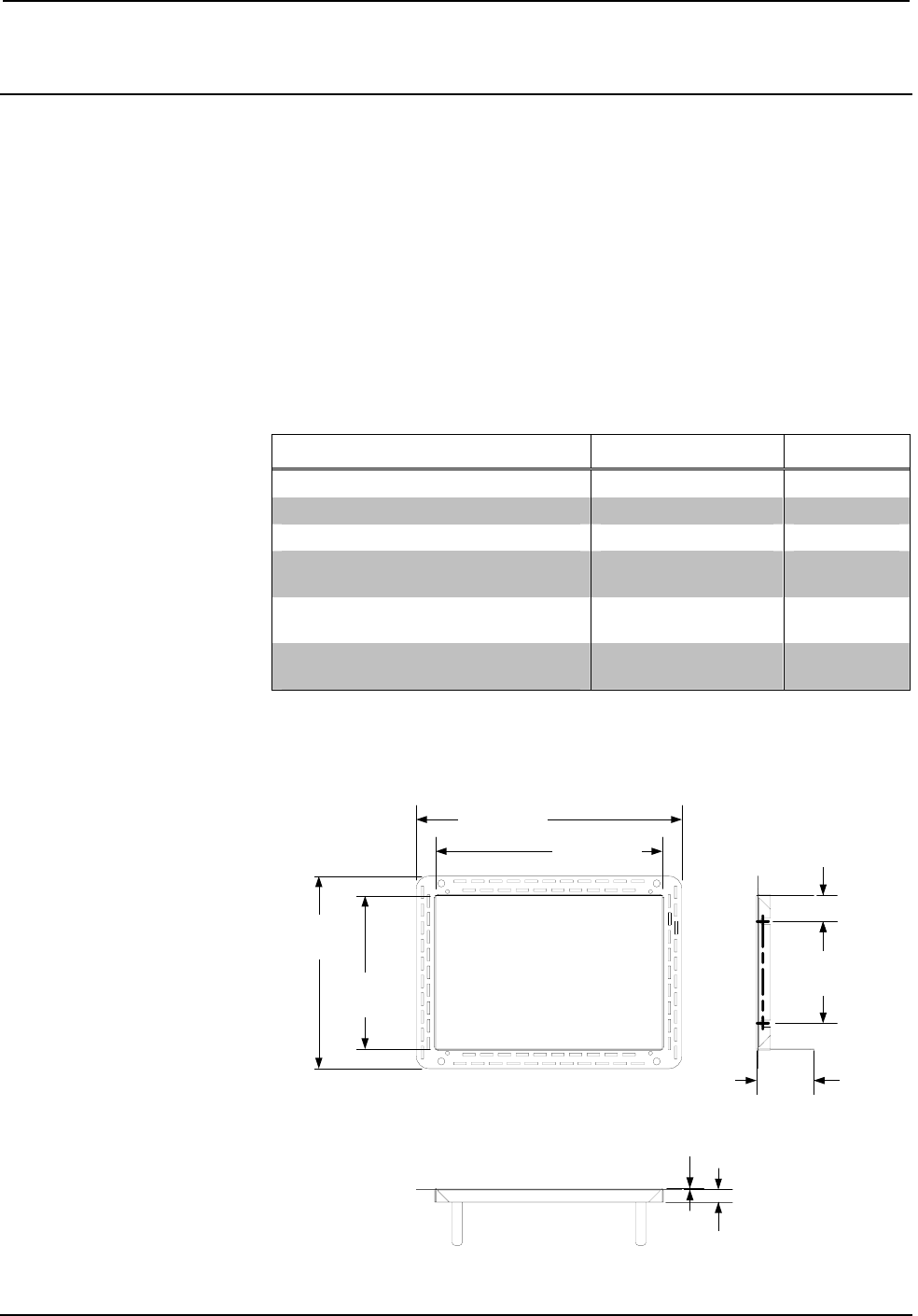

Dimensional Drawing (1 of 2)
0.56 in
(1.42 cm)
11.90 in
(30.23 cm)
8.00 in
(20.32 cm)
0.06 in
(0.15 cm)
6.35 in
(16.13 cm)
8.82 in
(22.41 cm)
#06-32 TAPPED HOLE IN EACH CORNER
SECURE 18 AWG JUMPER WIRE IN
NOTCH TO HANG CABLES AWAY FROM
CUTTING TOOLS
FOR DRYWALL SCREWS (NOT INCLUDED)
FOR DRYWALL NAILS (NOT INCLUDED)
2 • Pre-Construction Wall Mount Kit for TPS-6X-DSW: PMK-6X-DSW Installation Guide – DOC. 6778A
