Each unit is available in three colors: almond, black, or
white. The letter at the end of the product name, ‘A’, ‘B’, or
‘W’, denotes the color (e.g., a CLS-C6MRFA is an almond
unit).
Introduction
Features and Functions
The iLux
™
units, CLS-C6RF and CLS-C6MRF, are wall-
mounted complete integrated lighting systems that can
function as standalone devices and/or be part of a Crestron
®
solution total control system network (Cresnet
®
). The units
are functionally identical except that the CLS-C6MRF
includes a built-in motion sensor.
Specifications
Following are specifications for the iLux units.
CLS-C6RF & CLS-C6MRF Specifications
SPECIFICATION
DETAILS
Power Requirements Line Power, 120 VAC, 60Hz
Load Ratings
1
Max load per channel
Min load per channel
Max load per unit
800 W/VA
(6.6 Amps @ 120 VAC),
Expandable via Expansion
Modules (sold separately)
15 W/VA
(0.125 Amps @ 120 VAC)
1920 W/VA
(16 Amps @ 120 VAC)
Note that if the unit is fed from an arc fault circuit interrupter
(required if controlling loads in a bedroom), the maximum total
load is 1000 W/VA
Load Types
1
Incandescent, magnetic low
voltage, neon/cold cathode,
dimmable 2-wire fluorescent,
and non-dim lighting
(also: electronic low voltage,
3-wire and 4-wire fluorescent,
High-Inrush Switching,
and
277V via expansion modules;
sold separately)
IR Receiver For use with Crestron IR
remote (sold separately).
RF Wireless
RF Transceiver
Range (typical)
Gateway
2-way RF, 2.4 GHz ISM
Channels 11-26 (2400 to
2483.6 MHz), IEEE 802.15.4
compliant
150 feet indoor, 250 feet
outdoor; subject to site-specific
conditions; range is increased
by adding additional devices or
C2N-MNETRPT repeater;
Requires a C2N-MNETGW RF
gateway
Motion Detector
(CLS-C6MRF only)
Type
Range
Infrared
20 to 30 feet at 4-foot elevation
Default MNET ID 1F
Control System Update Files
2, 3
2-Series Control System
Version 2.004.CUZ or later
Firmware CLS-C6.v1.0.upg or later

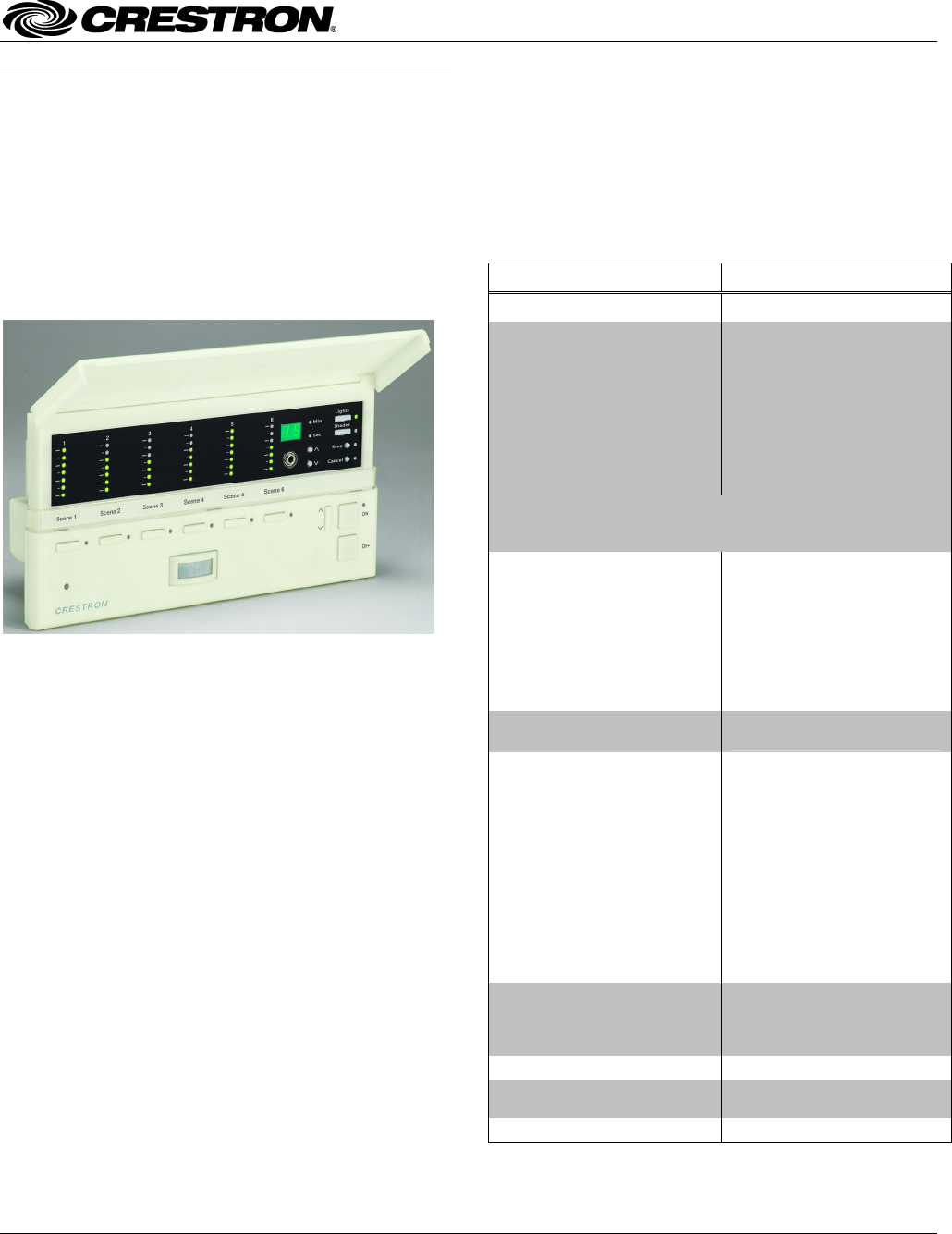

CLS-C6MRF with Cover Open, Shown in Almond
Each unit provides automated control of up to six channels
of lighting loads, including incandescent, magnetic low-
voltage, neon/cold cathode, and two-wire dimmable
fluorescent. Each unit also provides automated control of up
to six groups of shade and drape controllers for motorized
window treatments, screens, and lifts.
Front panel operation provides manual control of lighting
loads and shade groups as well as access to up to sixteen
scenes (lighting level/shade position combinations).
A built-in IR receiver allows for wireless operation using an
optional infrared remote generating standard RC5
commands; a built-in motion detector (CLS-C6MRF only)
enables automated control based on room occupancy.
Up to 16 Crestron keypads (sold separately) can be used
with each unit for control of rooms that have several
entrances or work areas. Each unit also supports up to eight
additional CLS-C6RF units, enabling systems of up to 54
lighting channels and 54 shade groups.
The CLS-C6RF employs Crestron's infiNET technology to
enable a wireless link to a 2-Series control system. A single
C2N-MNETGW gateway connected to the control system
enables 2-way wireless communications between the iLux
system and the central control system, allowing iLux's
functions to be controlled from touchpanels, RF wireless
remotes, and even computers.
(Continued on following page)
Crestron Electronics, Inc. Installation Guide – DOC. 6416A
15 Volvo Drive Rockleigh, NJ 07647 (2013966)
Tel: 888.CRESTRON 06.08
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
