Installation Instructions DGP32, 42, 50
5
Assembly And Installation
CAUTION: Overheating may cause damage or display
failure. Use correct size display cover to allow air circulation
around and behind display to prevent overheating.
NOTE: Access to back of display is necessary for installation
of DGP display cover.

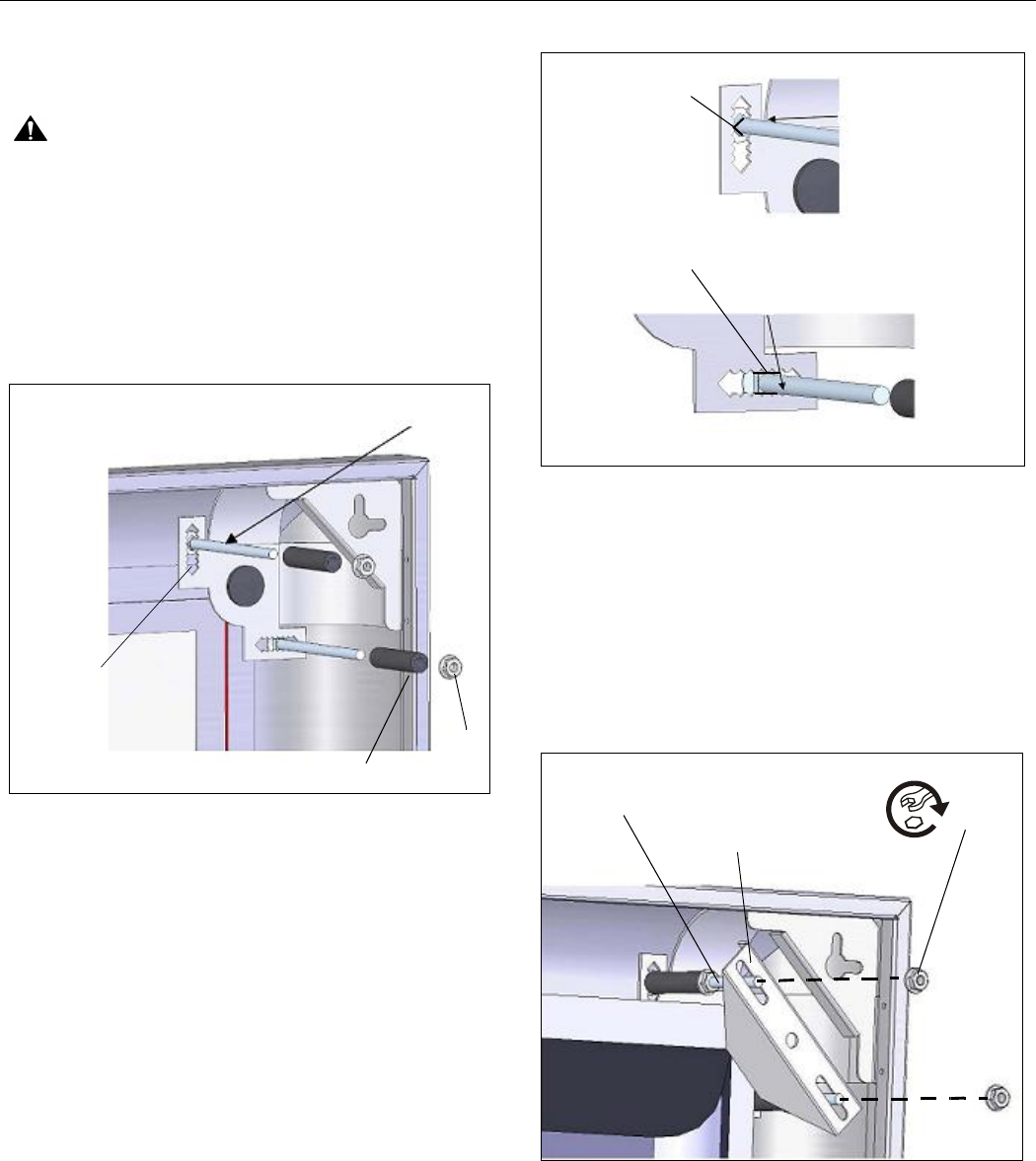

Adjusting Display Cover Size
1. Measure height and width of display.
2. Loosen and remove flange nuts (D) and padded tubes on
bolt assemblies (B). (See Figure 1)
Figure 1
3. Adjust and position bolts (B) into the slots which provide the
correct spacing.
NOTE: Engage base of bolts at top of cover in the slot notches.
Base of bolts on sides and bottom of cover should be
parallel to the slots. (See Figure 2)
Figure 2
4. Position bolts and tighten the flange nuts securely against
the padded tubes. (See Figure 1)
5. Place cover on display.
NOTE: Sponge bumpers and padded bolts may be used to
prevent scratches on display.
6. Check display alignment and adjust as necessary.
7. Install clamp brackets (C) over the bolt ends (B). (See
Figure 3)
Figure 3
8. Secure with flange nuts (D).
NOTE: Clamps may be rotated to best fit cover to display.
(B)
(D)
Padded
Tube
Slot
Top of Cover:
Base of bolts
engaged in
slot notches
Sides/Bottom of Cover:
Base of bolts parallel
to slots
(D) x 4
(C)
(B)
