ARCHITECTURAL AND ENGINEERING SPEC
INSTALLATION OF ALARM
The smoke alarm shall be a BRK Model 7020B and shall provide at a minimum the
following features and functions:
1. A photoelectric smoke sensing chamber.
2. The unit shall have a bright escape light that illuminates escape path when alarm is
initiated and shall be capable of self restoring.
3. Fully screened sensing chamber to resist entry of small insects
thereby reducing the probability of unwanted alarms.
4. Powered by 120V AC, 60Hz and have a monitored 9V battery backup and a solid
state piezo horn rated at 85dB at 10 ft.
5. A visual green LED power-on indicator to confirm unit is receiving power or
is in alarm.
6. A full function test button should check all alarm functions by simulating a smoke
condition, causing the unit to alarm.
7. Latching & silence features: Alarm Latch to easily identify initiating alarm after
alarm condition has subsided. Silence feature - Temporarily silence unwanted
nuisance alarms.
8. Two Locking features - tamper resistant locking pins that lock battery drawer
and/or alarm to mounting bracket.
9. The unit shall be capable of operating between 40°F (4°C) and
100°F (38°C) and relative humidity between 10% and 90%.
10. The unit shall have a gasketless base for easy installation and be capable of
keeping alarm secure over a wide rotation range to allow for true alarm
alignment.
11. The unit shall have a plug in connector and be capable of interconnection of up to
18 alarms, 12 of which can be smoke alarms.
12. The unit shall at a minimum meet the requirements of UL217, CSFM,
NFPA 72, NFPA 101, ICC
SHIPPING SPECS:
TECHNICAL SPECS
Individual Carton Dimensions 5.13"L x 2.38"W x 5.13"H
Weight 0.45 lbs. (7010);
0.55 lbs. (7010B)
Cube 0.04 ft3
UPC 0 29054 00198 6
Master Carton Dimensions 10.75"L x 7.88"W x 11.06"H
Master Pack 12
Weight 7.1 lbs.
Cube: 0.54 ft3
I2of5: 100 29054 00198 3
Pallet Information
Cases per Layer 22
Number of Layers: 4
Cases per Pallet: 88
Units per Pallet: 1,056
Cube: 54.0 ft3
Weight: 678 lbs.
Alarm Dimensions: 5.0” dia x 2.1”H
Weight: 8.4 oz
Operating Voltage: 120V AC 60Hz w/ 9V battery backup
Operating Current: .05 amps (standby/alarm)
Temperature Range: 40°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 90% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke condition,
causing the unit to alarm
Press and hold test/silence button
Alarm Reset: Automatic when smoke clears
Interconnections: Up to 18 units of First Alert or BRK Smoke, CO and
Heat Alarms. Maximum of 12 smoke alarms. See
user’s manual for details.
Smoke Sensor: Photoelectric
Indicator Lights/Sounds:
AC Power: Constant Green LED
DC Power: Intermittent Red LED
Local Alarm: Red LED flashes rapidly
Latching Alarm: Red LED flashes once per second for 3 seconds after local
alarm. Pattern repeats approximately every 45 seconds.
Remote Alarm: Red LED out.
Listing: Listed to UL217 Standard
©2010 BRK Brands, Inc. a Jarden Corporation
Company (NYSE: JAH)
3901 Liberty Street Road
Aurora, IL 60504-8122
All rights reserved
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3071

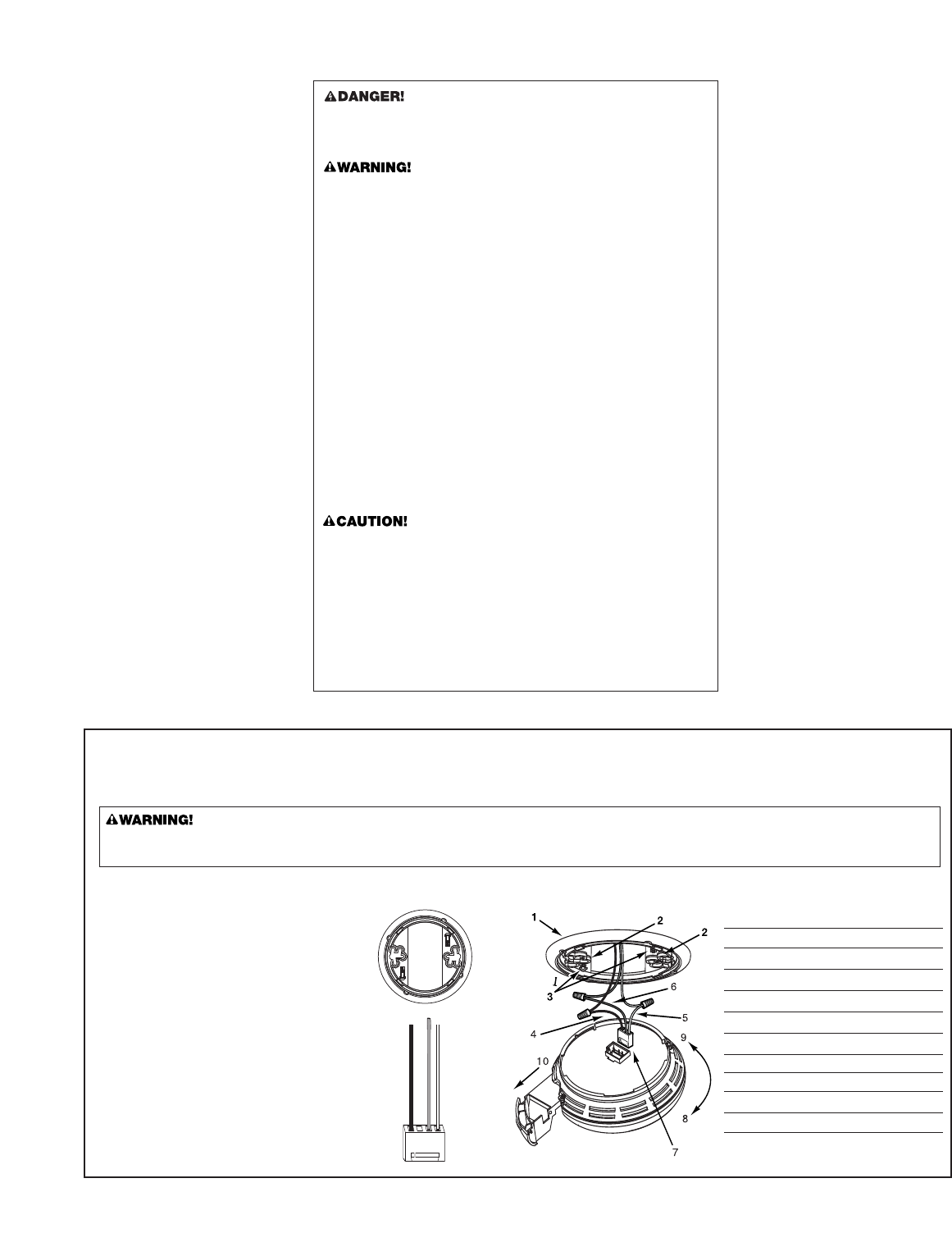

TOP VIEW SIDE VIEW
CAT.
7020B
THE PARTS OF THIS SMOKE ALARM
1. Mounting bracket
2. Mounting Slots
3. Locking Pins
4. Hot (Black) AC Wire
5. Neutral (White) AC Wire
6. Interconnect (Orange) Wire
7. Pull-out Battery Drawer
8. Quick-Connect Plug
MOUNTING
BRACKET
Installation of this smoke alarm must conform to all local electrical
codes and Article 760 of the National Electrical Code (NFPA 70)
and NFPA 72. Interconnected units must meet the following
requirements: Total length of wire interconnecting units should be
less than 1000 feet, be #18 gauge or larger and be rated at least
300V. It is recommended that all units be on the same fuse or
circuit breaker. If local codes do not permit, be sure the neutral
wire is common to both phases.
A. Unswitched 120VAC 60 Hz source
B. To additional units; Maximum = 18 total
(Maximum 12 Smoke Alarms)
1. Smoke Alarm 5. Junction Box
2. Ceiling or Wall 6. Neutral Wire (White)
3. Power Connector 7. Interconnect Wire (Orange)
4. Wire Nut 8. Hot Wire (Black)
5.0"
2.1"
678
43 1
5 2
A
B
}
}
43 15
2
8
1
7
6
5
4
3
2
