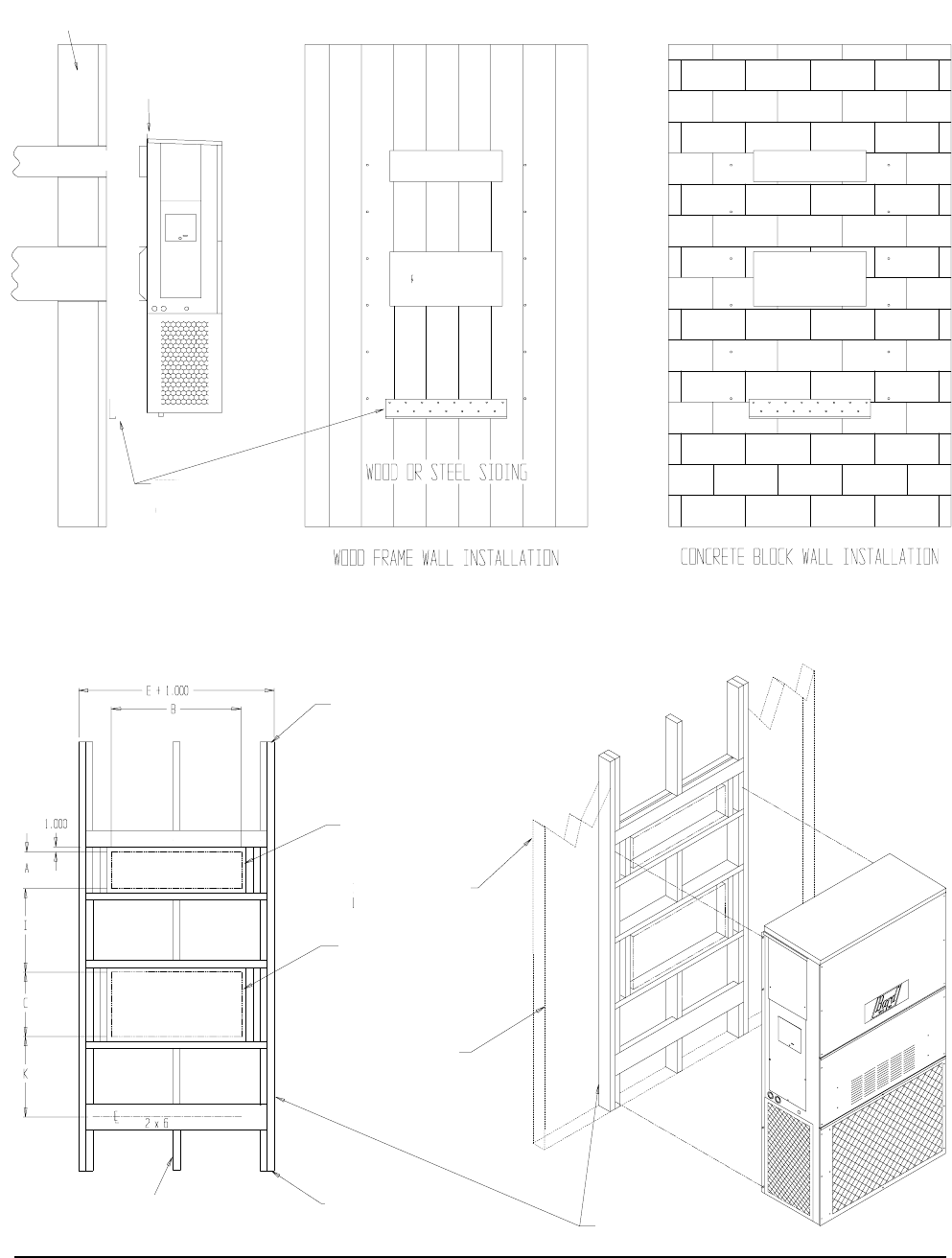

FIGURE 6
WALL MOUNTING INSTRUCTIONS
FIGURE 7
WALL MOUNTING INSTRUCTIONS
MIS-548
MIS-549
MIS-948
SEE FIGURE 3 – MOUNTING INSTRUCTIONS
SUPPLY AIR
OPENING
RETURN AIR
OPENING
RETURN AIR
OPENING
SUPPLY AIR
OPENING
BOTTOM MOUNTING
BRACKET. MOUNT ON WALL
BEFORE INSTALLING UNIT.
RETURN AIR
OPENING
SUPPLY AIR
OPENING
WALL STRUCTURE
FACTORY SUPPLIED RAIN
FLASHING. MOUNT ON UNIT
BEFORE INSTALLATION
SEE UNIT DIMENSIONS, FIGURE 1,
FOR ACTUAL DIMENSIONS
ATTACH TO TOP
PLATE OF WALL
1.000” CLEARANCE
ALL AROUND
INTERIOR FINISHED WALL
OVER FRAME
1.000” CLEARANCE
ALL AROUND
EXTERIOR FINISHED WALL
OVER FRAME
ATTACH TO BOTTOM
PLATE OF WALL
FRAMING MATERIAL
2 X 4’S, 2 X 6’S AND/OR
STRUCTURAL STEEL
THIS STRUCTURAL MEMBER LOCATED TO MATCH
STUD SPACING FOR REST OF WALL. A SECOND
MEMBER MAY BE REQUIRED FOR SOME WALLS.
RETURN DUCT
OPENING
SUPPLY DUCT
OPENING
MIS-949
