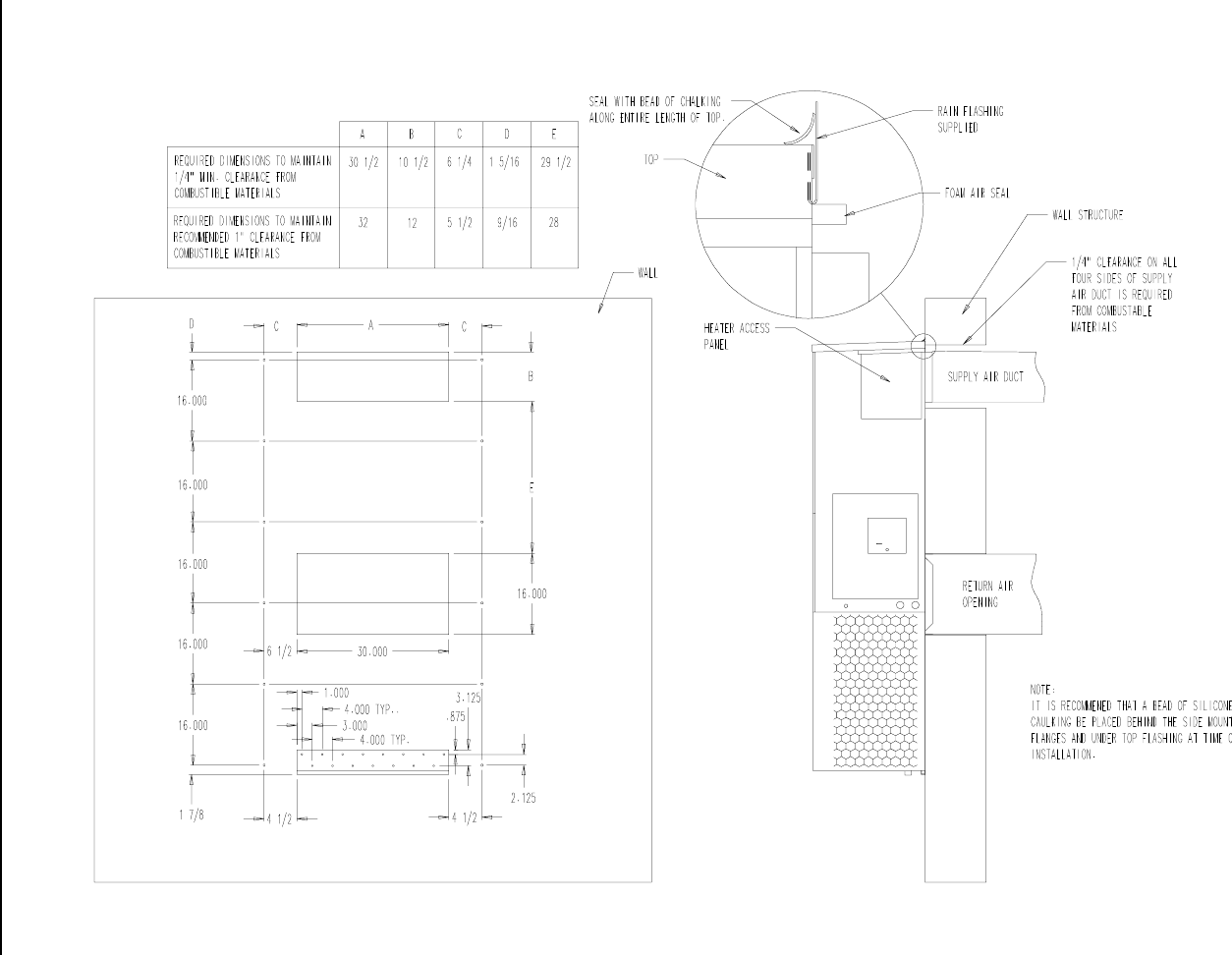

Manual 2110-452
Page
Drawing
No. Part No. Description
2 8607-013 Terminal Block 2 Pole X X 2
2 8607-014 Terminal Block 3 Pole X X X X X
2 8607-015 Phenolic Insulator X X
3 8201-056 Blower Control X X X X X X
3 8201-032 Blower Relay X X
4 8407-034 Transformer X X X X X X
4 8407-042 Transformer X X
5 8401-002 Compressor Contactor X X X X X X
5 8401-025 Compressor Contactor X X
6 8552-005 Outdoor Motor Capacitor X X X X
6 8552-026 Outdoor Motor Capacitor X X
6 8552-059 Compressor Capacitor X
6 8552-058 Compressor Capacitor X
7 135-130 Wire Shield X X X X X X X X
8 8611-006 Ground Terminal X X X X X X X X
9 3000-978 6 Pin Connector X X X X X X X X
10 8201-085 Phase Monitor X X X X X X
11 8201-062 Alarm Relay (Optional) X X X X X X X X
12 8551-005 Start Device (PTCR) (Optional) X X
13 8201-088 Compressor Control Module X X X X X X X X
14 117X139 Low Voltage Box X X X X X X X X
15 117X143 Control Panel X X X X X X X X
16 8607-017 Terminal Block (Optional) X X X X X X X X
NS 8615-040 Circuit Breaker 50 A 2 Pole k X
NS 8615-043 Circuit Breaker 40 A 3 Pole
k X
NS 8615-053 Pull Disconnect
k XXX
NS 8615-041 Circuit Breaker 60 A 2 Pole
k X
NS 8615-044 Circuit Breaker 45 A 3 Pole k XX
NS 4095-128 Wiring Diagram X X
NS 4095-227 Wiring Diagram X X
NS 4095-229 Wiring Diagram X
NS 4095-318 Wiring Diagram X X
NS 4095-623 Wiring Diagram X
Circuit breakers listed are for units without electric heat."0Z" models. Hot gas bypass models not
available without electric heat. See Heater Replacement Parts Manual for units with electric heat.
NS = Not shown
WA491-A
WA491-B
WA491-C
WA602-A
WA602-B
WA602-C
WA602-E
WA602-F
CONTROL PANEL
This Table is references drawing on Page 7
9
