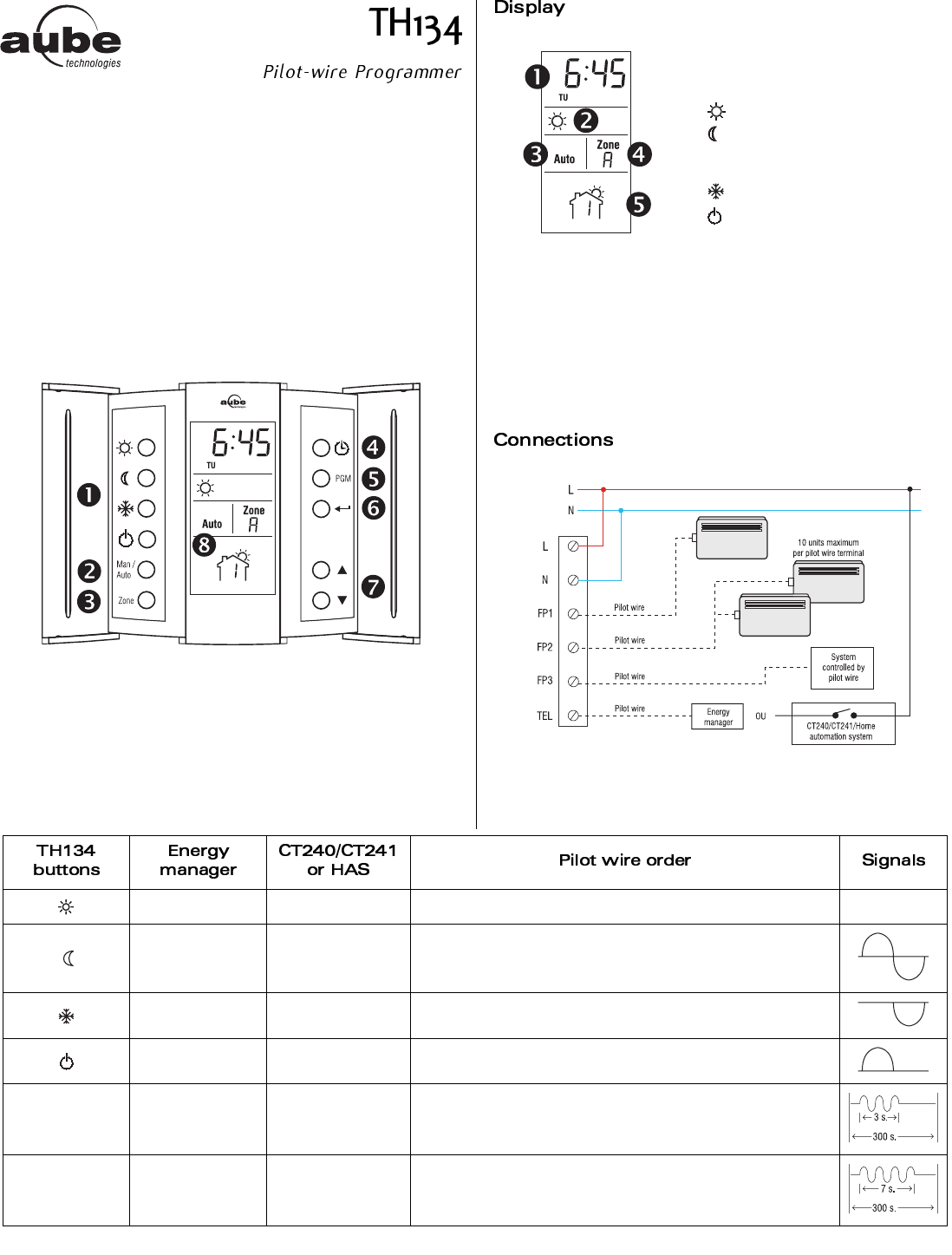

TH134 400-134-000-A 1/27/05 1/4
TH134 is an electronic six-order pilot-wire programmer that allows
separate temperature control of three zones using four programs
per day. The TH134 programmer has three pilot-wire outputs can
be connected to thermostats or controller that accept pilot-wire sig-
nals.
The TH134 programmer has a remote input to which a telephone
controller (such as Aube’s CT240), a home automation system
(HAS) or an energy manager can be connected. When a signal is
received from any of these devices, TH134 forwards the order to
the heating units.
The following table shows the different means of initiating an order.
I n stal l ati on a nd U ser G ui d eI n stal l ati on a nd U ser G ui d eI n stal l ati on a nd U ser G ui d eIn sta ll a ti on an d U ser Gui d eI nstal l ati on a nd U ser G ui d e
I n stal l ati on a nd U ser G ui d eI n sta ll a ti on an d U ser Gu i d e
I n stal l ati on a nd U ser G ui d e
I n stal l ati on a nd U ser G ui d eI n stal l ati on a nd U ser G ui d e
n Order buttons
o Mode selection button
p Zone selection button
q Time/day setting button
r Program button
s Return button
t Selection button
u Display
n Time
o Heating modes
:Comfort mode
: Setback modes
(icon is steady in 3,5k setback;
flashes in 1k and 2k setbacks)
:Frost protection
: Off
p Operating modes
- Manual mode
- Auto mode
q Zone selected (the letter A
appears when all 3 zones are
selected)
r Current program (applicable to
automatic mode only)
Maintain temperature at setpoint (Comfort) No signal
√√
Maintain temperature at setpoint minus 3,5°C (3,5k setback)
√
Maintain temperature at 7°C (frost protection)
√
Turn heating Off (Off)
√
Maintain temperature at setpoint minus 1°C (1k setback)
√
Maintain temperature at setpoint minus 2°C (2k setback)
