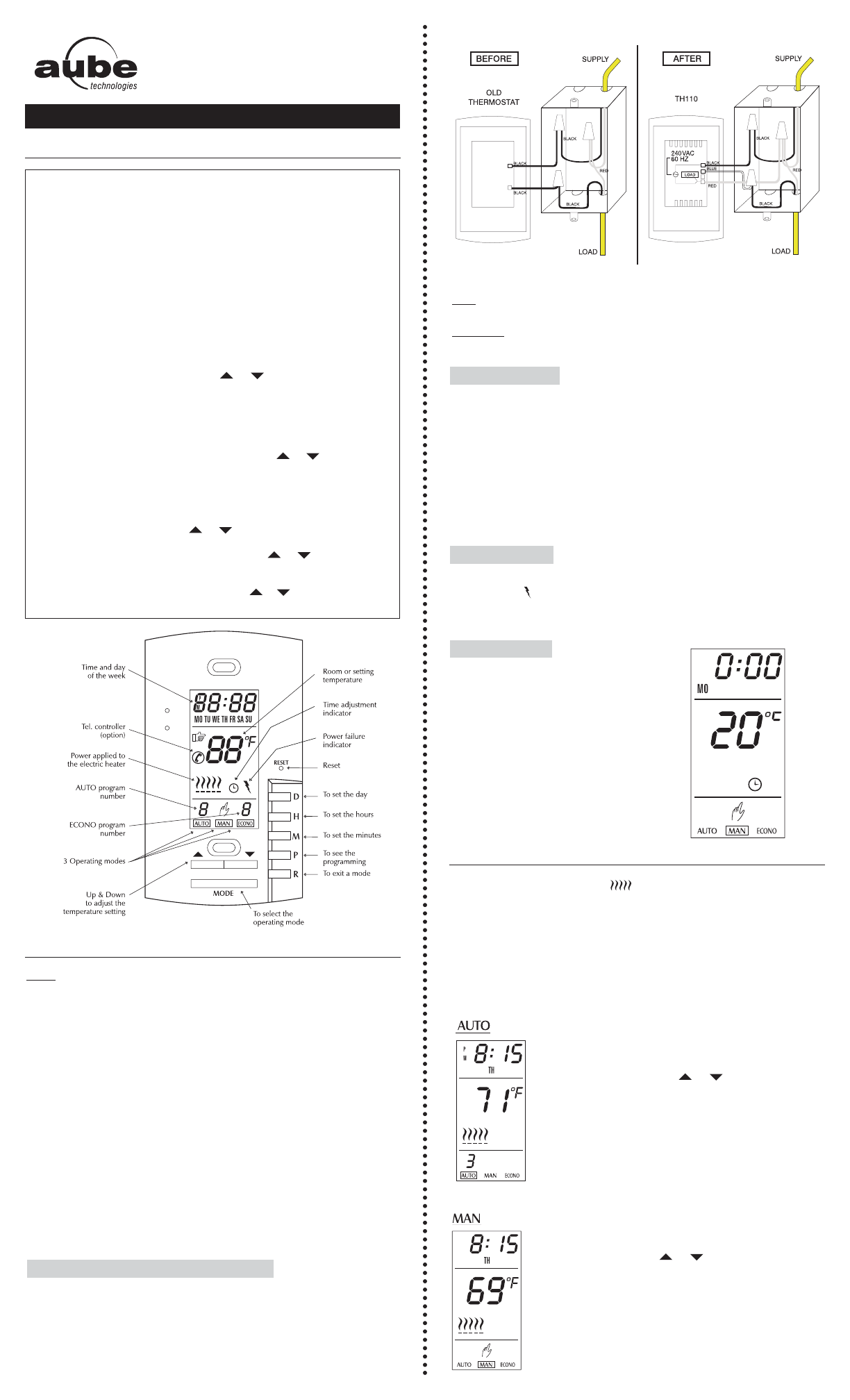

MODEL TH110-SP-P
SUMMARY
OPTIONS SELECTION
• To change the temperature from °C to °F and back, maintain D button
pressed down as RESET button is being pressed on and released.
Then release D button.
• To change the time format from 24 hours to 12 hours and back,
maintain H button pressed down as RESET button is being pressed
on and released. Then release H button.
TO SET TIME AND DAY
• Press on D, H and M buttons to adjust time and day.
TO RECORD THE HEATING PROGRAMS
•
Set the operating mode to AUTO. Use the P button to select
the program to be recorded or modified. Once the program is selected,
use H and M buttons to set time and or to select
temperature setting
.
T
O RECORD THE ECONO PROGRAMS
•
Set the operating mode to ECONO. Use the P button to select
the program to be recorded or modified. Once the program is selected,
use D
, H and M buttons to set time and day and or to select
temperature setting
.
OPERA
TING MODES
•
To select an operating mode, use MODE button.
A
UTO: runs the programs. or shows temperature setting
and can override temporarily your programming
.
MAN:
maintains the selected temperature. or changes
temperature setting.
ECONO: maintains a temperature setting up to the user's
pre-programmed day and time. or shows
temperature setting.
NOTE: The "Problems and Solutions" section at the end of this user's guide will
help you to correct your problems during the installation.
This thermostat has been designed to operate with any installation
which has a RESISTIVE load not exceeding 4800 W (20 A) such as
electric baseboards, radiant ceilings and floors, electric convectors,
etc. It is not compatible with a low voltage controller used by a central
heating system.
Electricians or experienced technicians should install the thermostat.
This thermostat is designed to be used with a self-protected heating
system equipped with thermal cut off and circuit breaker.
INSTALLATION
Note: All cables and connections must conform to the local
electrical code.
WARNING: Special CO/ALR solderless connectors must be used when
connecting with aluminum conductors.
Connect the rear thermostat wires to the power supply and to the electric heater
wires using solderless connectors for copper wires. See schematic diagram.
Push the excess wire back into the electric box to prevent interference with the
thermostat. Secure the thermostat using two (2) 6-32 screws 1 1/4 inches long.
Once the thermostat is properly installed, return power to heating system.
1) Connecting wires and mounting thermostat
2) Options selection
Some options have been factory set. Those default settings are:
The temperature is in °C and the time format is 24 hours.
2.1 Temperature displayed in °C or °F
To change the temperature from °C to °F and back, maintain D button pressed
down as RESET button is being pressed on and released.
Then release D button.
2.2 Time format displayed in 24 hours or 12 hours
To change the time format from 24 hours to 12 hours and back, maintain H
button pressed down as RESET button is being pressed on and released. Then
release H button.
3) Memory backup
In the event of a power failure, an internal circuit will maintain the program-
ming. An icon will be shown on the display. The display will stay on for 15
minutes; beyond this period, the display will turn off. Only the time will have to
be set if power failure is more than six hours. The thermostat will return to the
same operating mode as set before the power failure.
4) First power-up
When power is applied for the first time, the dis-
play must show the day and hour as follows:
0:00 MO (Monday)
The active operation mode is the framed MAN
mode, the temperature setpoint is 20 °C (68 °F)
and the ambiant temperature is displayed.
If the display is different, maintain P button
pressed down as RESET button is being pressed
on and released. Then release P button.
OPERATING MODES
The thermostat displays the icon when the heating system is on and
turns it off when the heating system is off.
The TH110-SP-P thermostat has three (3) operating modes:
AUTO, MAN and ECONO.
They are selected through the MODE button. On display, the active mode is
framed. The frame moves on to the next mode each time the MODE button is
pressed on.
The AUTOmatic mode runs in sequence (hourly)
the programs recorded by the user.
By pressing once on or , the display shows
the temperature setting. All subsequent pres -
sures will override your programming up to the
next program.
To see the weekday and weekend programs, select
the AUTO mode and press successively on P
button to see the programs appear on the display.
PARTS INCLUDED
- One (1) TH110-SP-P thermostat
- Two (2) 6-32 screws, 1 1/4 inches
- Three (3) solderless connectors
TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN POWER
PANEL TO AVOID ELECTRIC SHOCK. Keep air vents of thermostat clean
and free from obstructions.
The MAN mode allows the user to override
the programming.
The first time the or is pressed on,
the temperature setting is displayed. For all
subsequent times pressed on, the temperature
setting will change 1 °C (1 °F).
720-110522-A 1/3
