Heater Installation
HEATER LOCATION AND
CLEARANCES
The heater is intended for use
located on a hard oor, table top,
desk or on shelf, and the like, or
suspended on a wall or ceiling
by means of provided hanger
bracket.
When suspended from wall or
ceiling heater should be located
along outside walls to provide
perimeter air circulation.
The discharge air should wipe the
walls without blowing directly on
them. (Figure 2)
If heater is to be tilted on
horizontal axis after mounting -
ensure a minimum clearance of
26.5 inches (67 cm) between oor
and bottom of heater. Also, when
mounted to ceiling, ensure a
minimum clearance of 3.5 inches
(9 cm) from ceiling to top of
heater. Ensure the air discharge
is parallel to or away from walls.
INSTALLATION WITH WALL/
CEILING HANGER BRACKET
!
NOTE: To prevent personal
injury always use a licensed
electrician to install new outlets or
circuits.

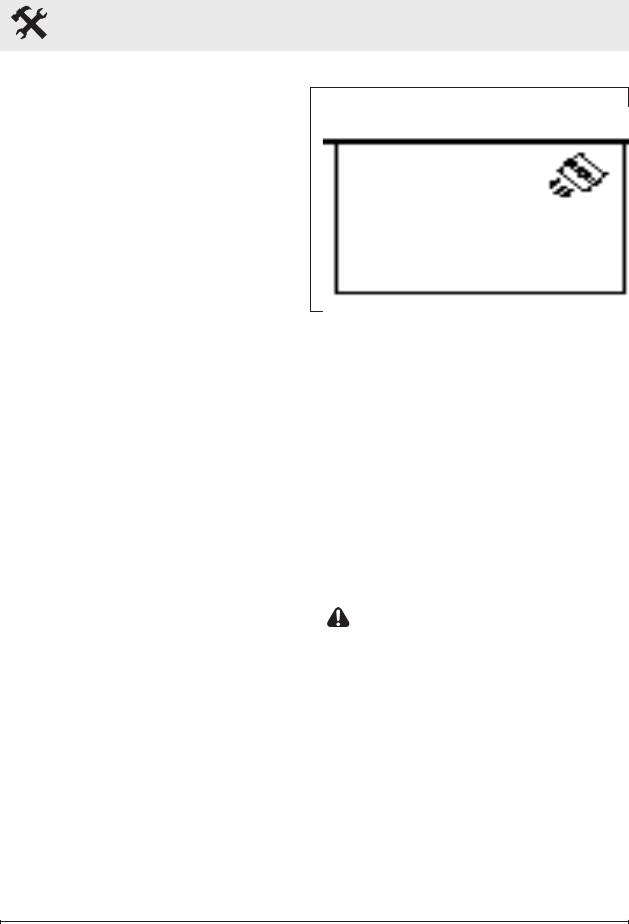

DISCHARGE
OUTSIDE WALL
Figure 2
The use of the hanger bracket
allows the unit to be rotated
approx 45 degrees in each
direction from centre, when
attached to wall and tilted in 45
degrees range while suspended
from a wall or ceiling.
!
NOTE: The hardware for
mounting the hanger bracket to
the wall or ceiling is not included.
CAUTION: When turning
and/or tilting the heater do not
block the exhaust opening.
The following steps are shown in
Figure 3.
Locate a stud or other 1.
suitable support and install
hanger bracket on wall or
ceiling. Select location so
control knob on back of
heater will be reached easily.
