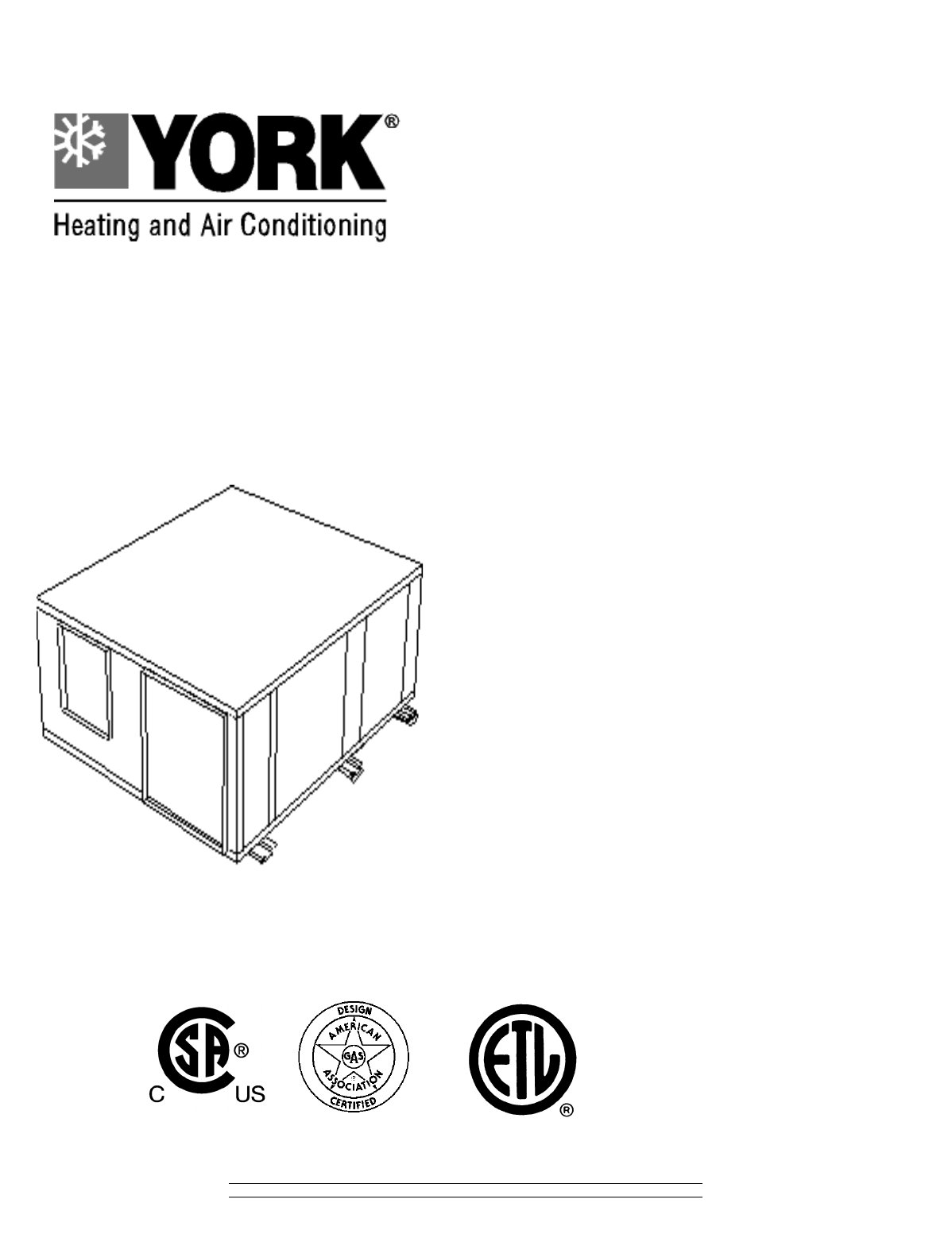

York D3HH 180 Air Conditioner User Manual



MODELS: D3HH 024 THRU 180
TECHNICAL GUIDE
SINGLE PACKAGE AIR CONDITIONERS
HORIZONTAL INDOOR &
CONDENSER AIR FLOW
036-21187-001 REV A (0301)
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
York horizontal ductable air conditioning packages offer a com-
plete line of unit options for indoor, through-the-wall installations
for high and low rise building applications.
York’s compact, low profile indoor design protects from potential
vandalism, weathering and eliminates the need for any unsightly
exterior equipment.
Floor-by-floor installation provides independent zone and temper-
ature control. Renovation and restoration projects are simplified
where roof load, cooling tower, and construction restrictions can
present installation problems.
The air cooled DHH horizontal series units are available from 2 to
15 tons.
York’s DHH horizontal air cooled indoor air conditioning features
high efficiency, quality engineering and dependable operation.
HORIZONTAL FEATURES
Low profile cabinets are unitized for single package and/
or split Installation.
I
deal for tenant change and/or renovations.
Ductable ceiling mount saves valuable floor space.
Protected from extreme weather conditions and vandal-
ism.
Compact size fits through standard openings (31").
Low profile range 20" to 29" in depth.
Static compatibility to suit various installation require-
ments. using centrifugal blowers and adjustable pulleys.
Available in 2, 3, 4, 5, 8, 10, 12, and 15 ton capacities.
