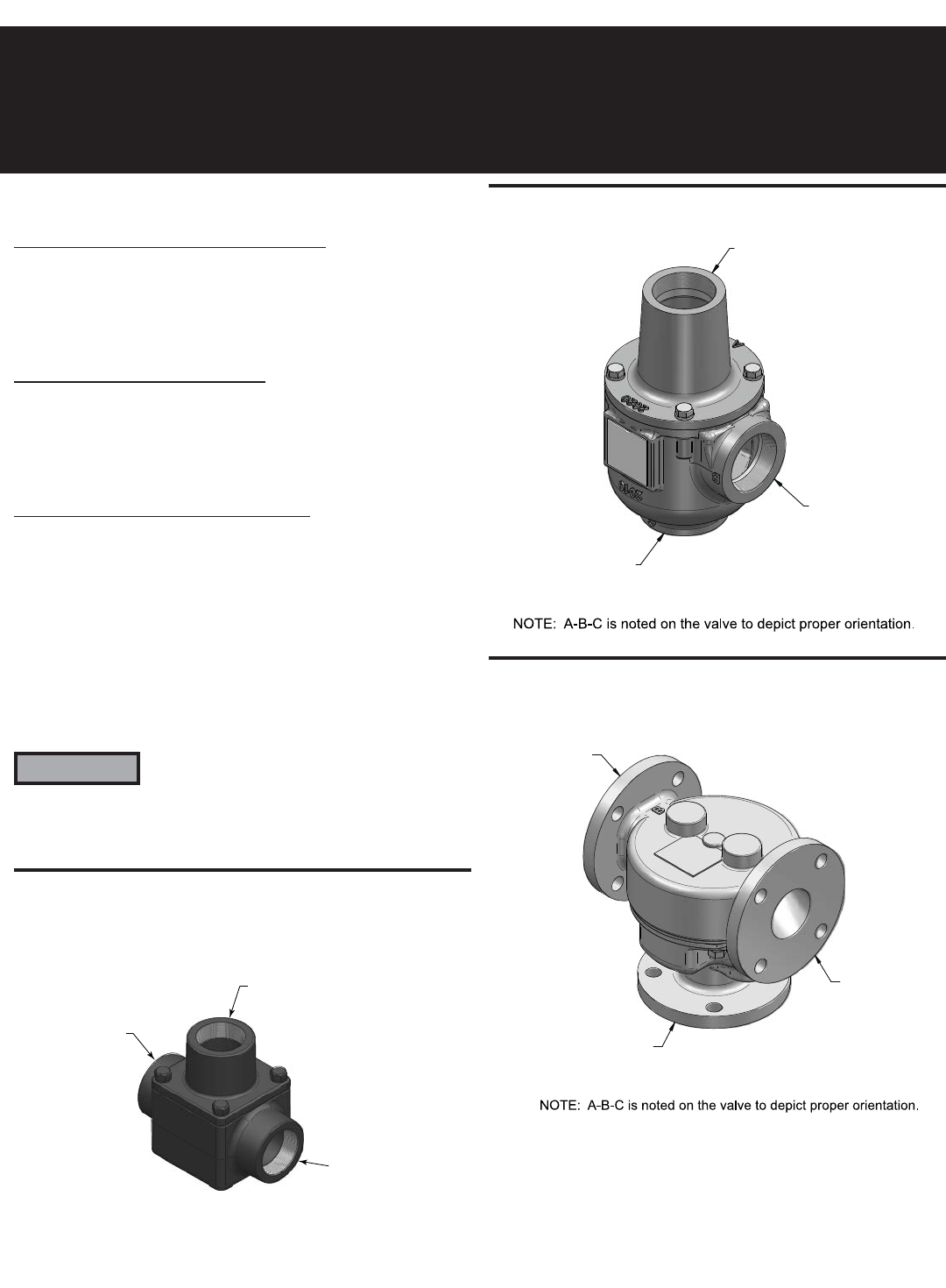

LTV VALVE APPLICATION INSTRUCTIONS FOR
LOW TEMPERATURE PROTECTION
COPPER-FIN AND POWER-FIN MODELS
CB 495 - 2066 / CH 401 - 2071 AND PB 501 - 2000
INS7238 Rev C
Kit components:
VAL30000 - 1 1/2" VALVE
Models: CB 45 - 500
• VAL20000 1 1/2" LTV Valve
• INS7238 Instruction Sheet
VAL3048 - 2" VALVE
Models: CB 495 - 745 and CH 401 - 751
• VAL2123 2" LTV Valve
• INS7238 Instruction Sheet
VAL3047 - 2 1/2" VALVE
Models: CB 986 - 2066, CH 991 - 2071, and PB 501 - 2000
• VAL2124 2 1/2" LTV Valve
• BLT2118 Bolt (12)
• BLT2119 Nut (12)
• BLT2026 Flat Washer (24)
• BLT2120 Star Washer (12)
• GKT2055 Gasket (3)
• TFL2092 Flange (3)
• INS7238 Instruction Sheet
ƽ CAUTION
Pump and motor unit are designed to be
supported by the inline piping only. Do not
support in any other manner. When placing
pump between flanges, tighten flange bolts
evenly and do not tighten excessively.
Figure 2_ 2" Valve
NOTE: A-B-C is noted on the valve to depict proper orientation.
