INSTALLATION INSTRUCTIONS FOR CRESTLINE DECORATIVE HOOD KITS
MODELS: LDGHK36 & LDGHK42
DECORATIVE
HOOD KITs
HEARTH PRODUCTS
KITS AND ACCESSORIES
506019-25
Rev. N/C 06/2008
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
GENERAL INFORMATION
The hood kit consists of a single painted hood. Screws required for instal-
lation of the hood kit are already attached, in place, on the appliance.
TOOLS REQUIRED
• Medium Phillips Screwdriver
INSTALLATION INSTRUCTIONS
Step 1. Turn off the fireplace and allow it to cool before proceeding.
Step 2. Remove the screws, right and left, as shown in the detail of
Figure 1 (Screws are the first ones from the top).
Hood Installation
Step 3. Place the hood lip under the face top opening, as shown in
Figure 1 - Step A. Attach the hood with two (2) screws, one each
side, as shown in Figure 1 - Step B.
US
Printed in U.S.A. © 2008 by LHP
P/N 506019-25 REV. N/C 06/2008
Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
LHP
1110 West Taft Avenue
Orange, CA 92865

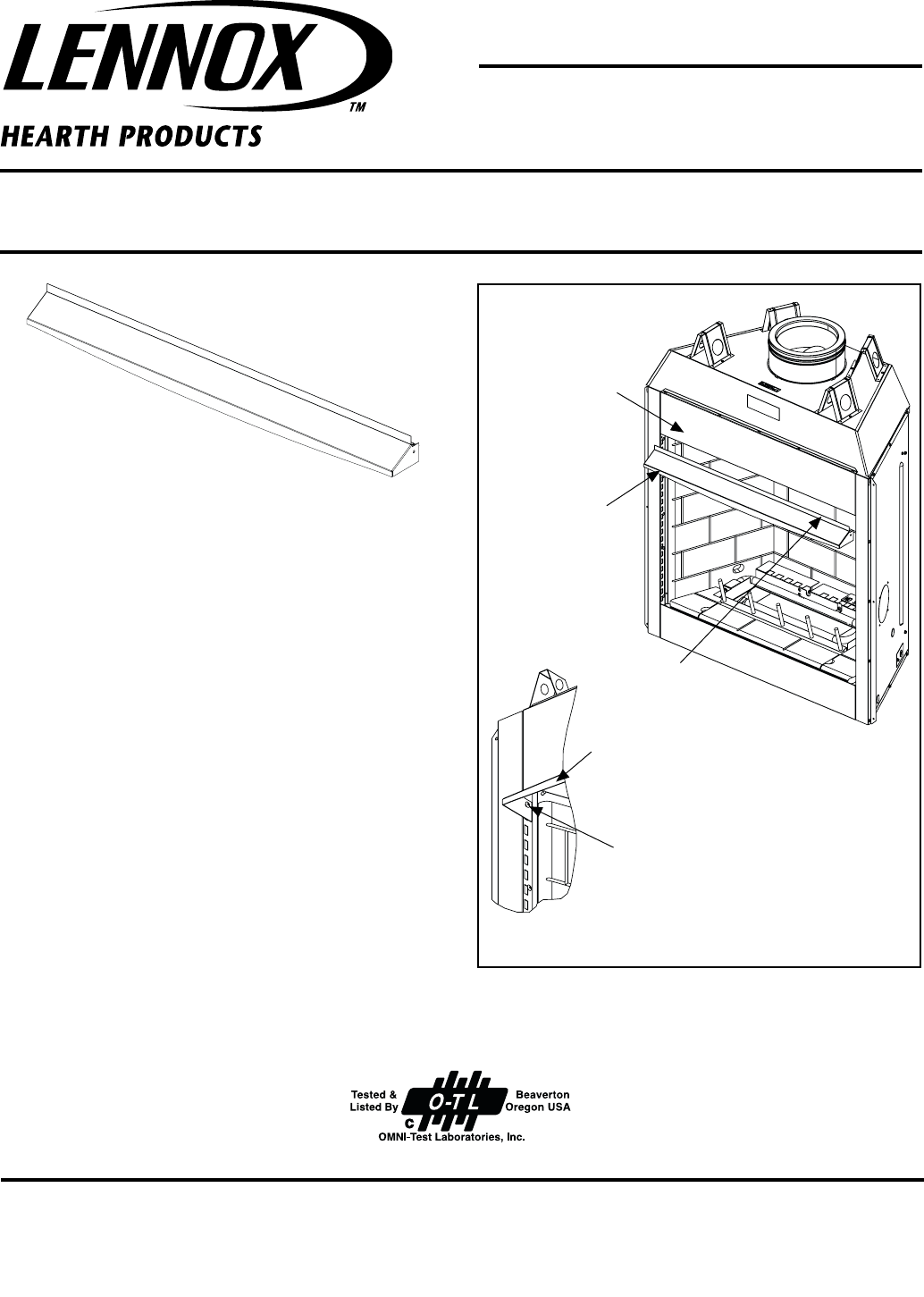

Figure 1
Place The Hood
Lip, Up And
Under, The Face
Top Opening
Hood Lip
Attaching Screw
(Seen From Below)
Step-A
Step-B
Face Top
Hood
