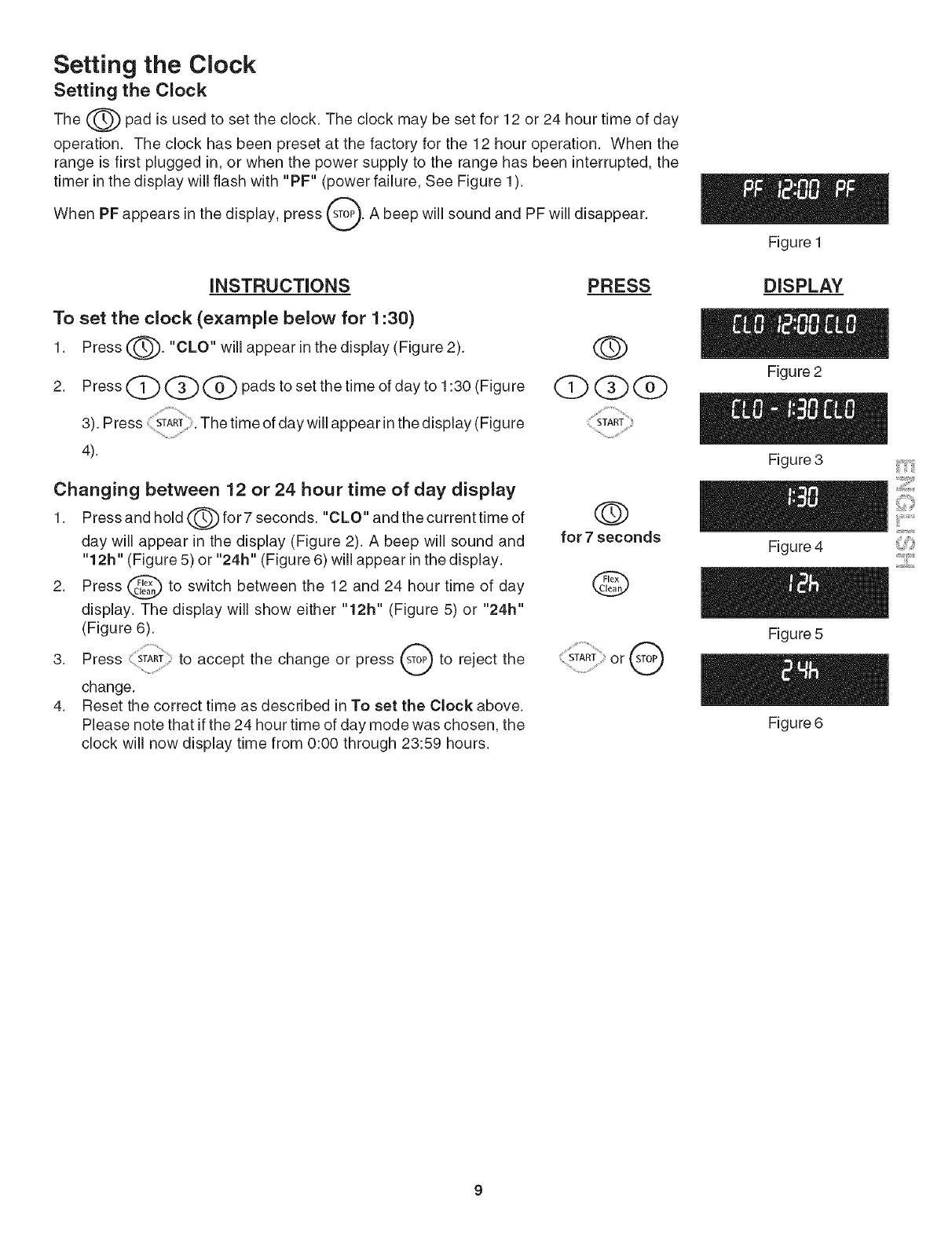

Setting the Clock
Setting the Clock
The L--_ pad is used to set the clock. The clock may be set for 12 or 24 hour time of
day
operation. The clock has been preset at the factory for the 12 hour operation. When the
range is first plugged in, or when the power supply to the range has been interrupted, the
timer in the display will flash with "PF" (power failure, See Figure 1).
When PF appears in the display, press _. A beep will sound and PF will
disappear.
INSTRUCTIONS
To set the clock (example below for 1:30)
1. Press @. "CLO" will appear in the display (Figure 2).
2.
Press (_ (_ _ pads to set the time of day to 1:30 (Figure
3). Ptess ::iTARi:. The time of day will appear in the display(Figure
4).
Changing between 12 or 24 hour time of day display
1. Press and hold L-_ for7 seconds. "CLO" and the current time of
day will appear in the display (Figure 2). A beep will sound and
"12h" (Figure 5) or "24h" (Figure 6) will appear in the display.
2. Press _n) to switch between the 12 and 24 hour time of
day
display. The display will show either "12h" (Figure 5) or "24h"
(Figure 6).
3. Press : STAR_'_to accept the change or press _ to reject the
change.
4. Reset the correct time as described in To set the Clock above.
Please note that ifthe 24 hour time of day mode was chosen, the
clock will now display time from 0:00 through 23:59 hours.
PRESS
@
QQQ
@
for 7 seconds
@
:i!! or@
Figure 1
DISPLAY
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
