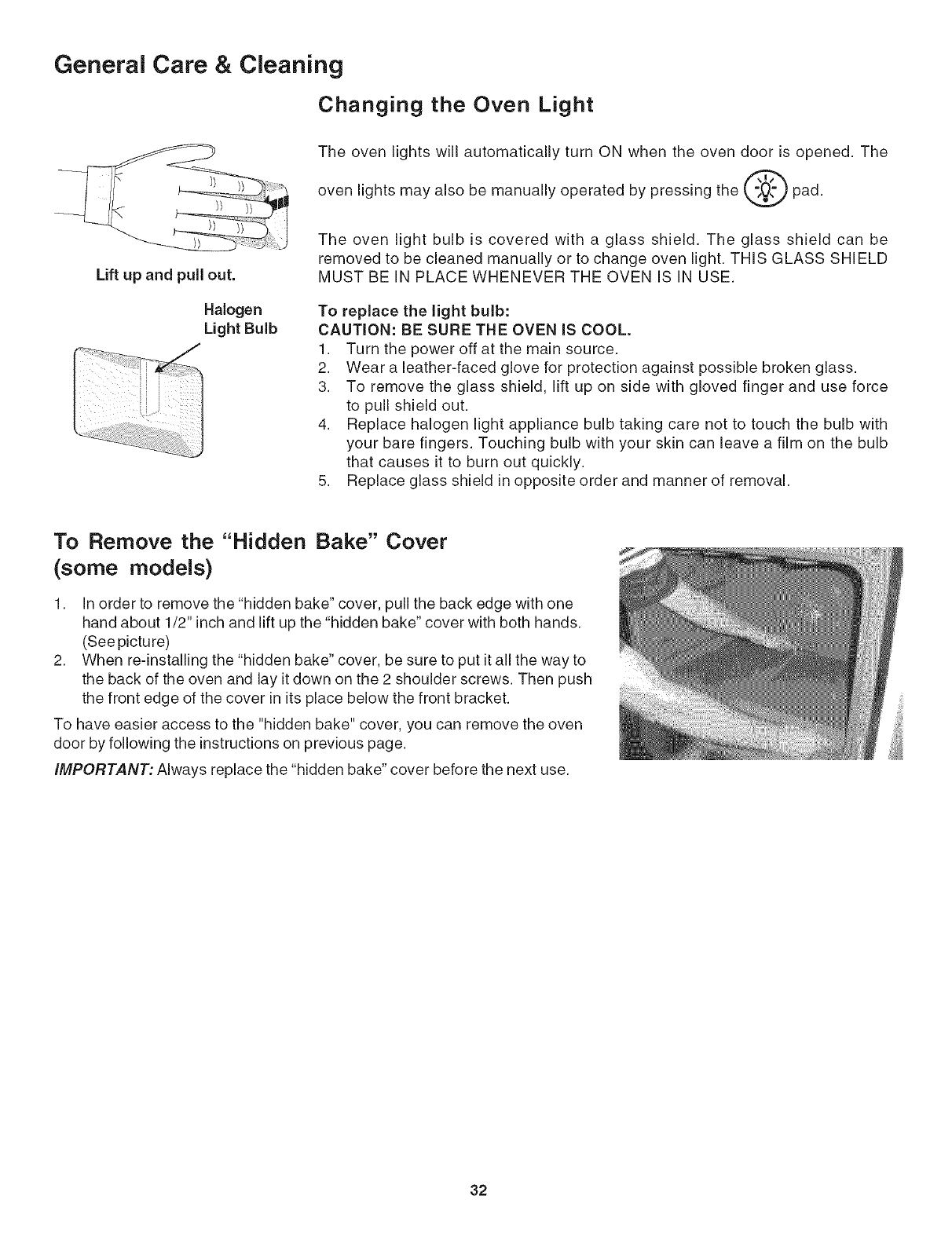

General Care & Cleaning
Changing the Oven Light
The oven lights will automatically turn ON when the oven door is opened. The
oven lights may also be manually operated by pressing the ¢_,=Obpad.
Lift up and pull out.
Halogen
Light Bulb
The oven light bulb is covered with a glass shield. The glass shield can be
removed to be cleaned manually or to change oven light. THIS GLASS SHIELD
MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.
To replace the light bulb:
CAUTION: BE SURE THE OVEN iS COOL.
1. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. To remove the glass shield, lift up on side with gloved finger and use force
to pull shield out.
4. Replace halogen light appliance bulb taking care not to touch the bulb with
your bare fingers. Touching bulb with your skin can leave a film on the bulb
that causes it to burn out quickly.
5. Replace glass shield in opposite order and manner of removal.
To Remove the "Hidden Bake" Cover
(some models)
1. In order to remove the "hidden bake" cover, pull the back edge with one
hand about 1/2" inch and lift up the "hidden bake" cover with both hands.
(See pictu re)
2. When re-installing the "hidden bake" cover, be sure to put itall the way to
the back of the oven and lay itdown on the 2 shoulder screws. Then push
the front edge of the cover in itsplace below the front bracket.
To have easier access to the "hidden bake" cover, you can remove the oven
door by following the instructions on previous page.
IMPORTANT: Always replace the "hidden bake" cover before the next use.
32
