General Care & Cleaning
Hinge
support
Hinge lever hook
Care and Cleaning of Stainless Steel (Somemodels)
Some models are equipped with stainless steel exterior parts. Special care and
cleaning are required for maintaining the appearance of stainless parts. Please
refer to the table provided at the beginning of the General Care & Cleaning
section in this Use & Care Guide.
Lock engaged for door removal
Figure 1
HINGE SLOT =Door removed
from the oven
Figure 2
e lever
Lock in normal position
Figure 3

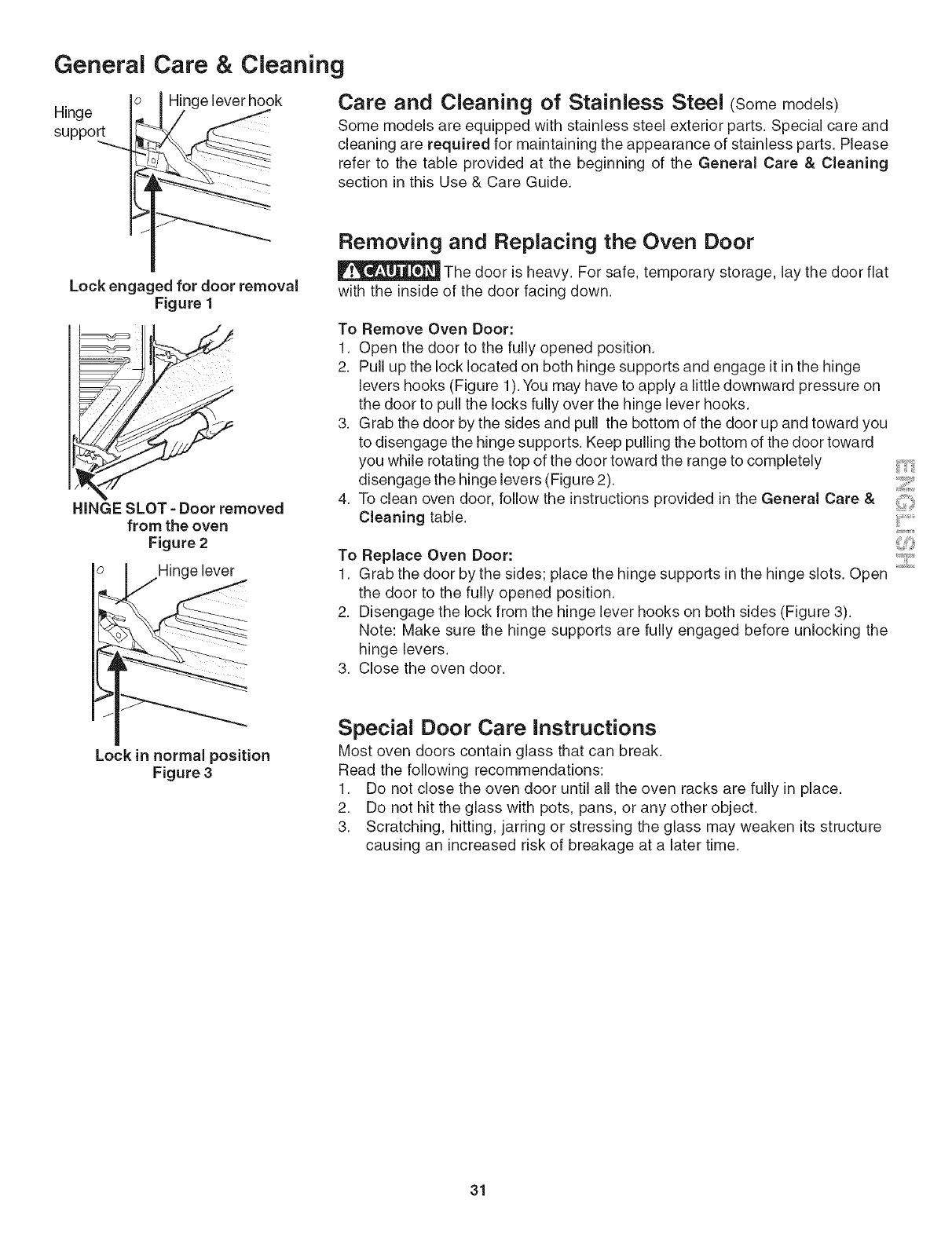

Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat
with the inside of the door facing down.
To Remove Oven Door:
1. Open the door to the fully opened position.
2. Pull up the lock located on both hinge supports and engage it in the hinge
levers hooks (Figure 1).You may have to apply a little downward pressure on
the door to pull the locks fully over the hinge lever hooks.
3. Grab the door by the sides and pull the bottom of the door up and toward you
to disengage the hinge supports. Keep pulling the bottom of the door toward
you while rotating the top of the door toward the range to completely
disengage the hinge levers (Figure 2).
4. To clean oven door, follow the instructions provided in the General Care &
Cleaning table.
To Replace Oven Door:
1. Grab the door by the sides; place the hinge supports in the hinge slots. Open
the door to the fully opened position.
2. Disengage the lock from the hinge lever hooks on both sides (Figure 3).
Note: Make sure the hinge supports are fully engaged before unlocking the
hinge levers.
3. Close the oven door.
Special Door Care Instructions
Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
iii..........
31
