E2003 CCN 99721649
& (419) 636-4242 D FAX (419) 633-1674
INGERSOLL-RAND COMPANY
P.O. BOX 151 D ONE ARO CENTER D BRYAN, OHIO 43506Ć0151
LP3007-1 CART MOUNTED
GREASE PUMP SYSTEM
OPERATOR’S MANUAL
LP3007-X
RELEASED: 1-26-98
REVISED: 8-22-03
(REV. B)
INCLUDE MANUALS: LM2350EĆXĆB (97999Ć825), SĆ633 GENERAL INFORMATION (97999Ć625), 636111 CONTROL HANĆ
DLE (97999Ć16), 636077 Z" SWIVEL (97999Ć42)
INCLUDING: SPECIFICATIONS, SERVICE KITS, PLACING INTO SERVICE, TROUBLESHOOTING
SERVICE KITS
• Use only genuine AROR replacement parts to assure compatible
pressure rating and longest service life.
• 637227ĆB Pump Rebuild Kit. Includes the necessary soft parts for
normal service of the entire pump.
SPECIFICATIONS
Model Series LP3007Ć1. . . . . . . . . . . . . . . . .
Type Air Operated, 60 lb.. . . . . . . . . . . . . . . . . . . . . . .
Grease Pump System
Ratio 50:1. . . . . . . . . . . . . . . . . . . . . . .
Air Motor Diameter 3" (7.62 cm). . . . . . . . . . . .
Stroke (Single acting) 3" (7.62 cm). . . . . . . . .
Air Inlet (female) 1/4 Ć 18 N.P.T.F. Ć 1. . . . . . . . . . . . .
Material Outlet (female) 3/8 Ć 18 N.P.T.F. Ć 1. . . . . . .
Pump Construction Carbon Steel. . . . . . . . . .
Dimensional Data see page 2. . . . . . . . . . . . .
Weight 51.5 lbs. (23.4 kg). . . . . . . . . . . . . . . . . . . . . .
PERFORMANCE
Air Inlet Pressure Range 0 Ć 150 p.s.i. (0 Ć 10.3 bar). . . . . . . .
Fluid Pressure Range 0 Ć 7500 p.s.i. (0 Ć 517.2 bar). . . . . . . . . .
Displacement In
3
Per Cycle 0.875. . . . . .
Cycles Per Lb. 30. . . . . . . . . . . . . . . .
Maximum Delivery / Min. 7.5 lbs (3.4 kg). . . . . . . .
Noise Level @ 100 p.s.i. 85 db(A). . . . . . . . .
GENERAL DESCRIPTION
LP3007Ć1 Portable Lubrication System. Includes the 50:1 pump, drum
cover assembly, hose, control handle and two wheel container.
IMPORTANT
This is one of five documents which support the pump system. ReĆ
placement copies of these forms are available upon request.
= LP3007Ć1 SYSTEM OPERATOR'S MANUAL
- LM2350EĆXĆB PUMP OPERATOR'S MANUAL
- SĆ633 GENERAL INFORMATION LUBRICATION SYSTEMS
- 636111 CONTROL HANDLE MANUAL
- 636077 Z" SWIVEL MANUAL
OPERATING AND SAFETY PRECAUTIONS
WARNING
READ THE GENERAL INFORMATION MANUAL
INCLUDED FOR OPERATING AND SAFETY PRECAUTIONS
AND OTHER IMPORTANT INFORMATION.

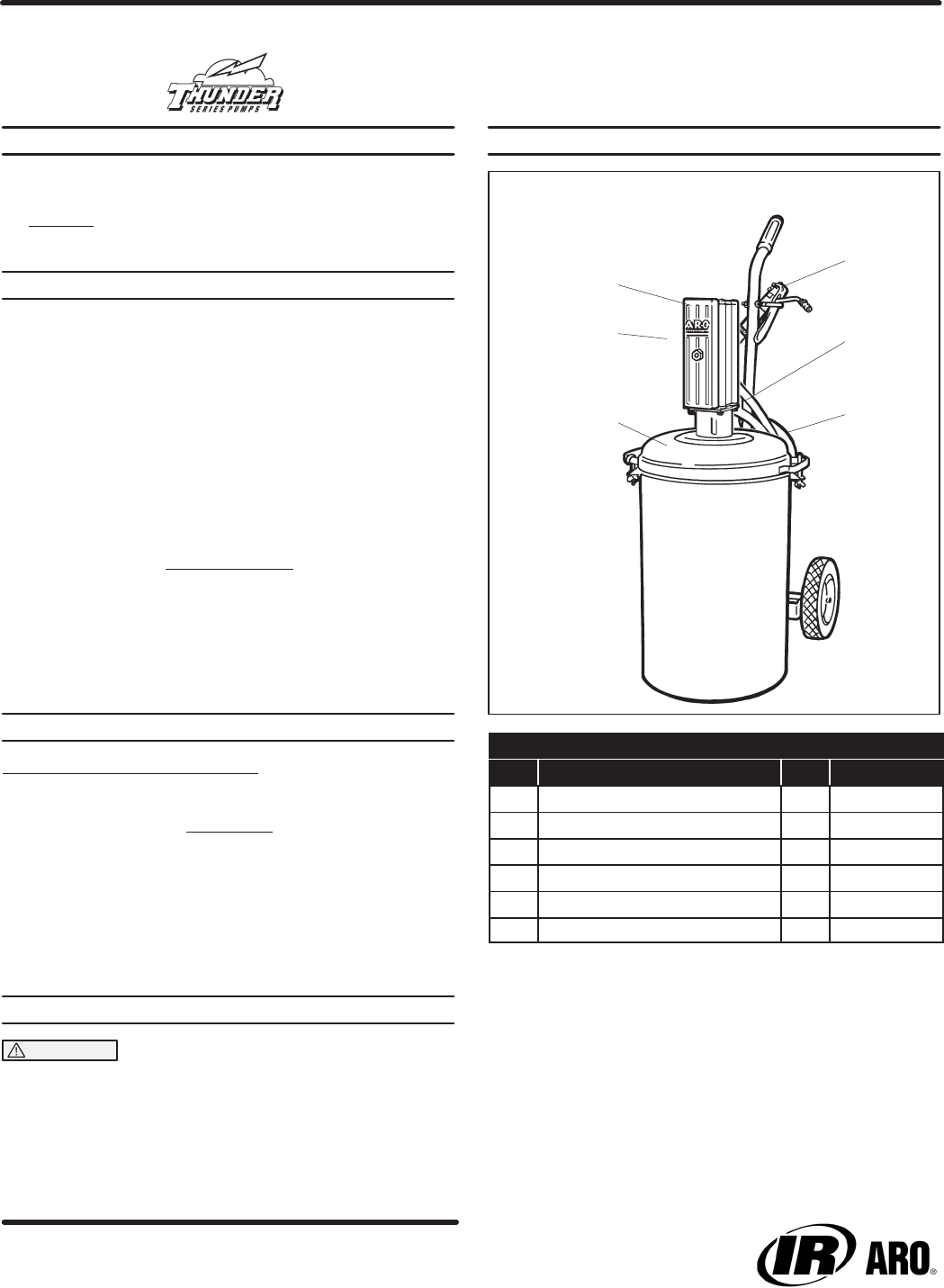

PUMP DATA
(see note À) A
B
C
F
D
E
LP3007Ć1 GREASE PUMP SYSTEM
MAJOR COMPONENTS
Item Description (size in inches) Qty Part No.
A Basic 50:1 Grease Pump (1) LM2350EĆ61ĆB
B Control Handle (1) 636111
C Z" Swivel (not shown) (1) 636077
D 1/4" I.D. Hose (1/8 Ć 27 N.P.T.F. x 6') (1) 624201Ć6
E Adapter (1/8 Ć 27 x 3/8 Ć 18 N.P.T.F.) Á (1) 76493
F Cover Assembly (1) 62050
À Pump is rotated 180_ to show air inlet.
Á Attaches pump outlet to hose.
