CCN 15242621

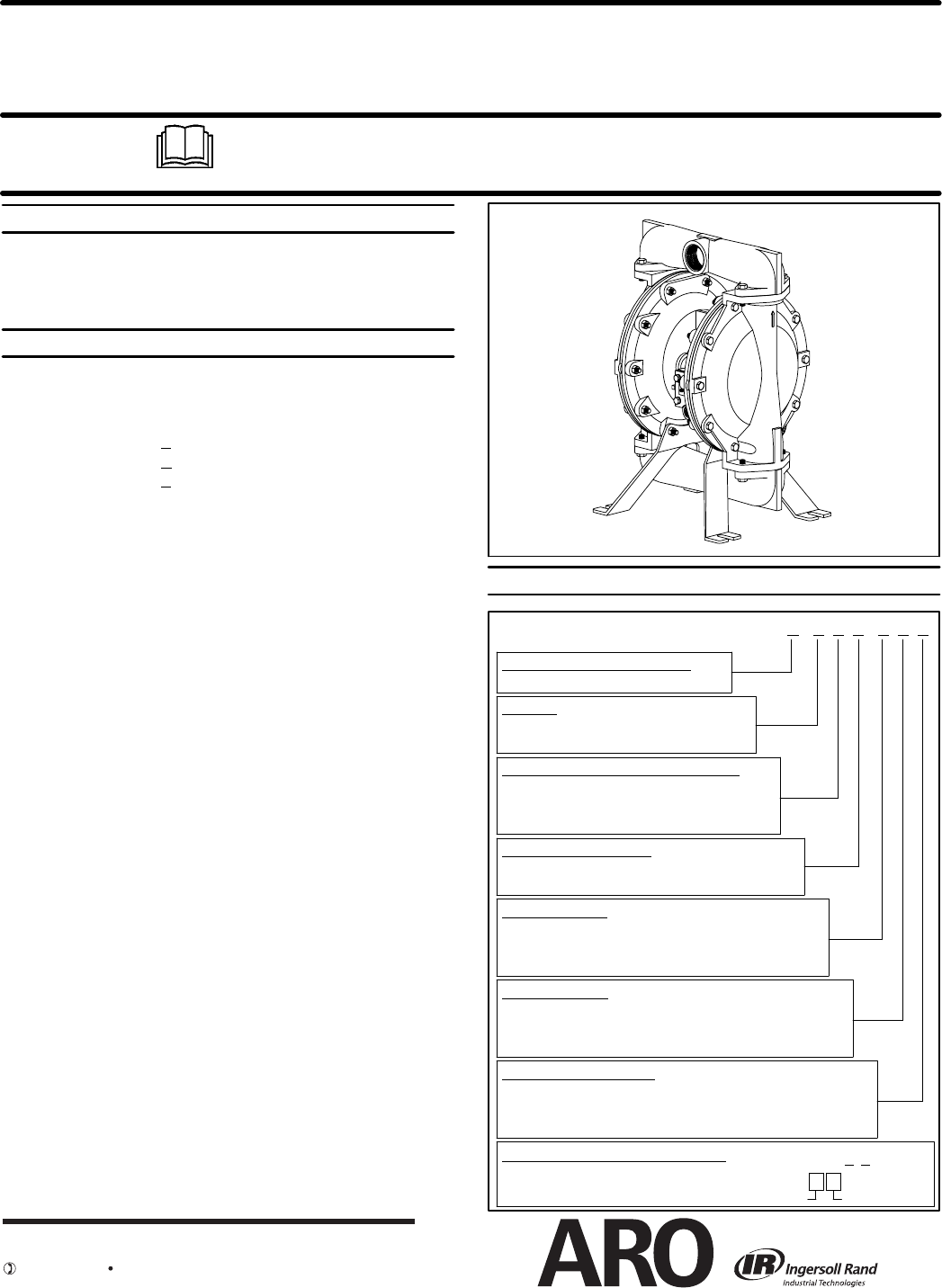

OPERATOR’S MANUAL
AD40A-X-X
RELEASED: 4-22-05
REVISED:
12-2
-10
(REV.
05)
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
1-1/2” DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to “Model Description Chart” to match the pump material options.
637436 for air section repair (see page 6).
637426-XX for fluid section repair (see page 4).
PUMP DATA
Models see “Model Description Chart” for “-XXX”..........
Pump Type Metallic Air Operated Double Diaphragm.......
Material see “Model Description Chart”..........
Weight AD40A-XA
X-XXX 50.9 lbs (23.1 kg)... .......
AD40A-XC
X-XXX 78.9 lbs (35.8 kg)......
AD40A-XS
X-XXX 83.9 lbs (38.0 kg).......
Maximum Air Inlet Pressure 120 p.s.i. (8.3 bar).........
Maximum Material Inlet Pressure 10 p.s.i. (0.69 bar).....
Maximum Outlet Pressure 120 p.s.i. (8.3 bar)..........
Maximum Flow Rate (flooded inlet) 90 g.p.m. (340.7 l.p.m.)...
Displacement / Cycle @ 100 p.s.i.g. 0.64 gal. (2.42 lit.)...
Maximum Particle Size 1/4” dia. (6.4 mm)............
Maximum Temperature Limits (diaphragm / ball / seat material)
E.P.R. / EPDM -60_ to 280_ F (-51_ to 138_ C)......
Hytrel
R -20_ to 150_ F (-29 _ to 66_ C)...........
Polypropylene 35_ to 175_ F (2_ to 79_ C).......
Santoprene
R -40_ to 225_ F (-40 _ to 107_ C).......
PTFE 40_ to 225_ F (4_ to 107_ C).............
Viton
R -40_ to 350_ F (-40 _ to 177_ C)............
Dimensional Data see page 8................
Noise Level @ 70 p.s.i., 60 c.p.m.
77.7 db(A)*...
Tested with 93139 muffler assembly installed.
The pumpsound pressurelevels publishedhere havebeenupdatedto anEquivalent Continuous
Sound Level(L
Aeq
) tomeet the intent ofANSI S1.13-1971, CAGI-PNEUROP S5.1using four mi-
crophone locations.
NOTICE: All possible options are shown in the chart. However, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
AD40A-XXX-XXX
1-1/2’’ DIAPHRAGM PUMP
MODEL DESCRIPTION CHART
AD40 A -X X X -X X X
AD40A - XXX - X X X
637426 - X X
DiaphragmBall
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # AD40A-ASS-SAA
FLUID SECTION SERVICE KIT # 637426-AA
SEAT MATERIAL
F - Aluminum
P - Polypropylene
S - 316 Stainless Steel
HARDWARE MATERIAL
P - Carbon Steel
S - Stainless Steel
FLUID CAPS & MANIFOLD MATERIAL
A - Aluminum
C - Cast iron
S - Stainless Steel
THREAD
A - 1-1/2” N.P.T.F. - 1
B -Rp1-1/2-11BS
CENTER SECTION MATERIAL
A - Aluminum
BALL MATERIAL
A - Santoprene
C - Hytrel
T - PTFE
DIAPHRAGM MATERIAL
A - Santoprene
C - Hytrel
T - PTFE
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
© 2010
www.ingersollrandproducts.com
