OPERATOR’S MANUAL 650383 -- X
RELEASED: 1--5--96
REVISED: 6--7--10
(REV. B)
TWO BALL PUMP SERIES
3--1/4” AIR MOTOR
6:1 RATIO
6” STROKE
INCLUDE MANUALS:66300-- X LOWER PUMPEND (PN 97999--646) &
S-- 632 GENERAL INFORMATION MANUAL(PN 97999--624)
SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, T ROUBLESHOOTING
650383--X4X
300 SERIES STAINLESS STEEL
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine AROR replacement parts to assure compatible
pressure rating and longest service life.
637041 for repair of Air Motor section.
Service Note: The Air Motor Service/Parts Manual is not shipped
withthe pumpbutit isincludedwitheach ServiceKit.If thisService/
PartsInformationisneeded,requesttheAirMotorOperator’sManu-
al from ARO. (Manual 6534X--X, PN 97999--028).
637305- X43 for repair of Lower Pump section.
Refer to the chart on page 2 for description of --XXX options.
SPECIFICATIONS
Model Series (Referto opt ionchart) 650383--X4X..
Type Air Operated, Two Ball....................
Ratio 6:1....................
Air Motor 65365.................
Motor Repair Kit 637041..........
Motor Diameter 3--1/4’’ (8.3 cm)...........
Stroke 6’’..................
Air Inlet 1/4’’ -- 18 NPTF--1(f).................
Air Exhaust 1--1/4’’, 11--1/2 NPTF--1(f)..............
Lower Pump End Series 66300--X4X.....
Lower Pump Repair Kit 637305--X43.....
Material Inlet 1’’ 11--1/2 NPTF--1(f) &.............
2’’ 11--1/2 PTF (m) (SHORT)
Material Outlet 1’’ 11--1/2 NPTF--1(f)...........
Weight 35.5 Lbs (16.1 Kgs)...................
PERFORMANCE
Air Inlet Pressure Range 30 -- 150 PSI (2 -- 10.3 bar).....
Fluid Pressure Range 180 -- 900 PSI (12 -- 62 bar).......
Max. Rec’d Cycles / Minute 60...
Displacement In
3
Per Cycle 14.5...
Volume/Cycle 8 oz. (238 ml).............
Cycles Per Gallon 15.9..........
Flow @ 60 Cycles / Minute 3.7 GPM (14.3 lpm)....
Noise Level @ 60 Psi - 40 Cpm 74.8 db(A) *
*Thepump sound pressurelevelhasbeen updatedtoanEquivalentContinuousSound
Level (L
Aeq
) to meet theintent ofANSI S1.13--1971, CAGI--PNEUROP S5.1 usingfour
microphone locations.

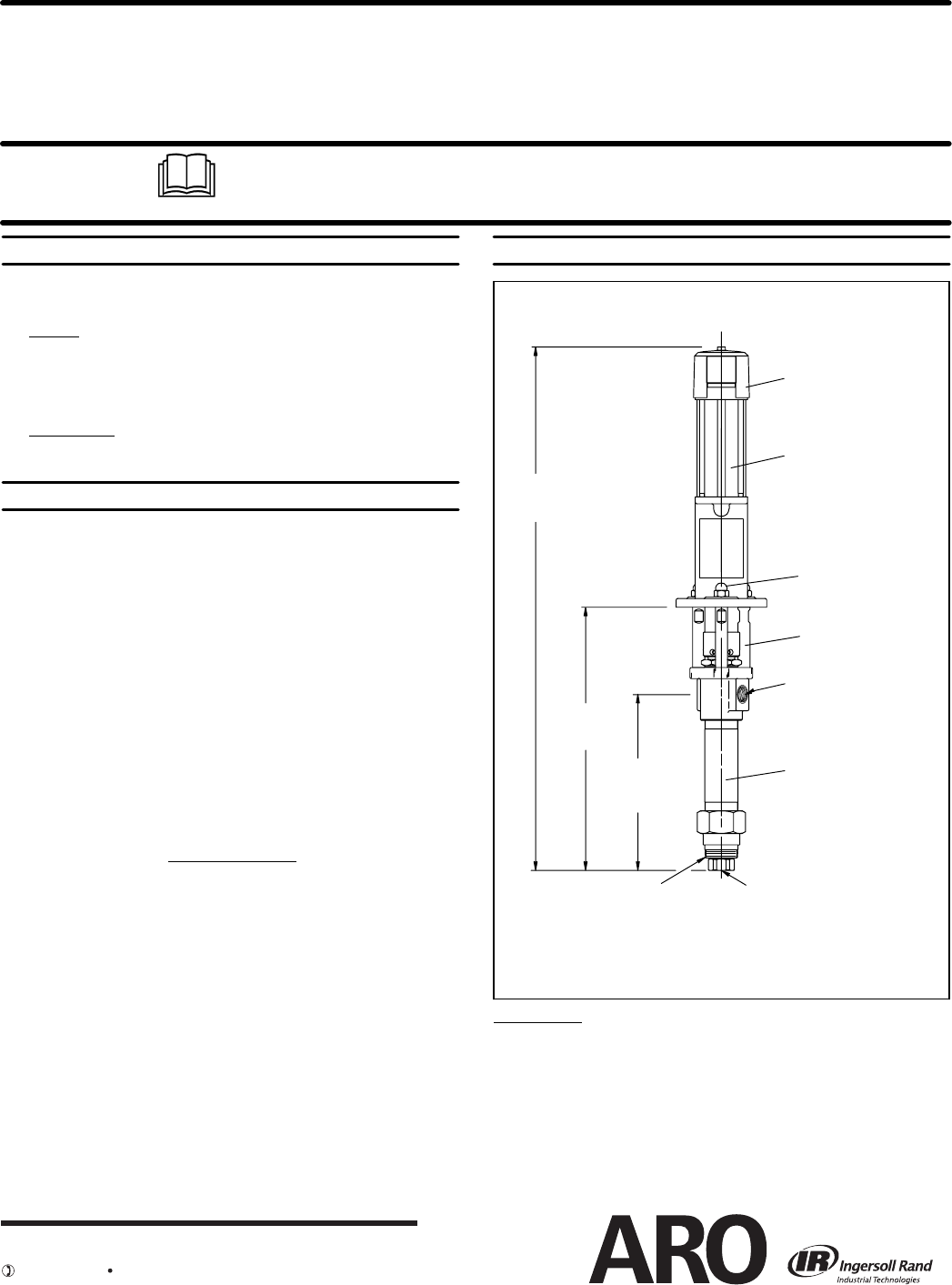

PUMP DATA
Air Motor
65365
FIGURE 1
Material Outlet
1’’ NPTF--1(f)
Material Inlet
Lower Pump
66300--X4X
Air Inlet
1/4--18 NPTF--1(f)
Spacer Section
37-5/8
(956mm)
18-15/16
(481mm)
12-11/16
(322mm)
1’’ 11 -1/2NPTF-1(f)
FEMALEINLET
2’’ 11 -1/2PTF SAE (m)
SPECIALSHORTMALE
60_FROMAIREXHAUST
Accessories Available:91790 Silencer,66101 Wall Bracket.
(SeeManual6534X--X)
NUTY85--29--C(3)
SPACERROD 94209(3)
CONNECTOR
SeeFigure2
(SeeManual66300--X)
MODEL 650383-X4X
(NotShown)
IMPORTANT
This is one of the four documents which support the pump.
Replacement copies of these forms are available upon request.
= 650383--X MODEL OPERATOR’S MANUAL
- GENERAL INFORMATION -- INDUSTRIAL PISTON PUMPS
- 66300--X LOWER PUMP END OPERATOR’S MANUAL
- 6534X--X AIR MOTOR OPERATOR’S MANUAL
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
