Pump Tubing Replacement Instructions
© 1999-2010, IMI Cornelius Inc. - 1 - Publication Number: 7285285
INSTALLATION INSTRUCTIONS
PUMP TUBING REPLACEMENT (KIT PART NO. 45098)
!
WARNING:
TDisconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify
all power is off to the unit before performing any work.
Failure to comply could result in serious injury, death or damage to the equipment.
Perform the following procedure to remove the platform (See Figure 1.):
1. Remove the concentrate container from the dispenser and place it in a refrigerator.
2. Remove the product shelf.
3. Depress the button on the water line quick disconnect and lift the water line away from the platform.
4. Unplug the platform electrical connector at the inside rear of the cabinet.
5. Release the catch at the front of the platform by pulling the tab toward yourself with one finger.
6. Remove the nozzle and static mixers.
7. Carefully lift and pull the platform from the dispenser and place it in a clean and well lit area for service.

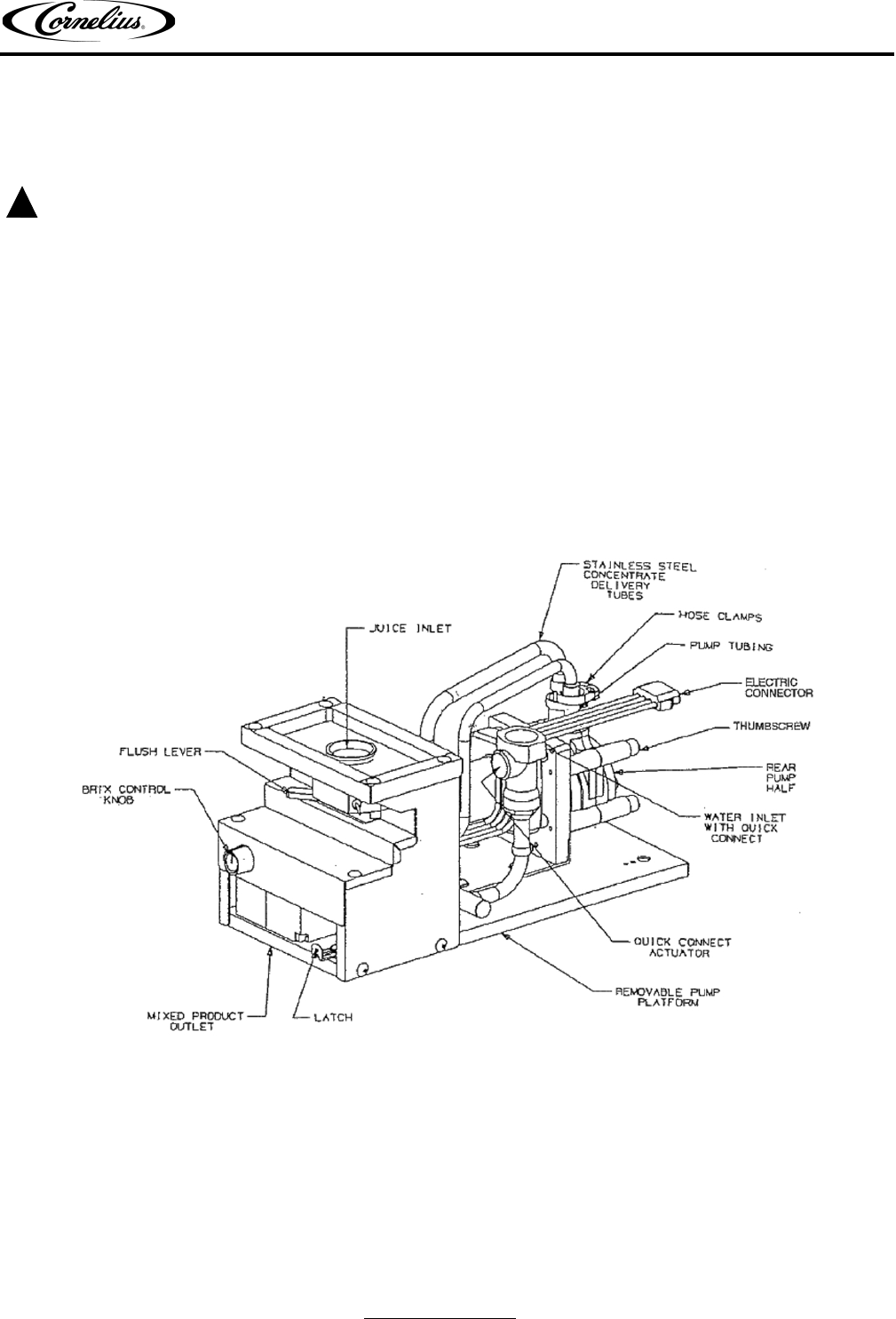

Figure 1. Front View of Pump Assembly
Replacement of the Pump Tubing. (See Figure 2.)
1. Remove platform as described in procedure above.
2. Remove the two white plastic tubing clamps from the pump tube connections, then remove the two stain-
less steel concentrate delivery tubes from the tubing ends.
3. Loosen and remove the four thumb screws from the pump body.
4. Carefully remove the rear half (only) of the pump body to reveal the tubing and rollers.
