Model SEFSDR-511 meets the requirements for fire
dampers, smoke dampers and combination fire smoke
dampers established by:
National Fire Protection Association
NFPA Standards 80, 90A, 92A, 92B 101 & 105
IBC International Building Codes
New York City (MEA listing #260-91-M)
California State Fire Marshall
Listing #: 3225-0981:112 (fire)
Listing #: 3230-0981:113 (smoke)
Application
Model SEFSDR-511 is a severe environment 316SS combination fire
smoke damper with round style blade. The SEFSDR-511 has been
qualified to 3000 fpm (15.2 m/s) and 4 in. wg (1 kPa) for operation
and dynamic closure in emergency fire smoke situations. Model
SEFSDR-511 may be installed vertically (with blades running
horizontal) or horizontally and is rated for airflow and leakage in
either direction.
Ratings
UL 555 Fire Resistance Rating
Fire Rating: 1 1/2 Hour
Dynamic Closure Rating: Actual ratings are size dependant
Maximum Velocity: 3000 fpm (15.2 m/s)
Maximum Pressure: 4 in. wg (1 kPa)
UL 555S Leakage Rating
Leakage Class: I
Operational Rating: Actual ratings are actuator dependant
Maximum Velocity: 3000 fpm (15.2 m/s)
Maximum Pressure: 4 in. wg (1 kPa)
Maximum Temperature: 350º F (177°C) —Depending on actuator
Standard Construction
Frame/Sleeve: 20 ga. (1mm) 316 stainless steel integral
sleeve
Blade: Double skin 316 stainless steel (14 ga.
[2mm] equivalent) round style blade
Seal: Extruded silicone rubber blade seal
Axle: 1/2 in. (13mm) dia. 316 stainless steel
Bearing: 316 stainless steel sleeve type
Fusible Link: UL listed 165ºF (74ºC) -not 316SS
Size Limitations
Minimum Size:
6 in. (152mm) diameter
Maximum Size: 24 in. (610mm) diameter
Optional Features
•OCI(Openclosedindicationswitches)-not316SS
•165ºF(74°C),212ºF(100°C),and350ºF(177°C)RRL-not316SS.
•TOR(remoteoverrideof165ºF(74°C)closureallowsdamperto
perform smoke management functions during a fire emergency) -not
316SS.
•Electricorpneumaticactuatorstoaccomplishsmokemanagement
and system functions.
•Oneretainerplaterequired,additionalretainerplateavailable
•14ga.(2mm)or16ga.(1.5mm)frame/sleeve

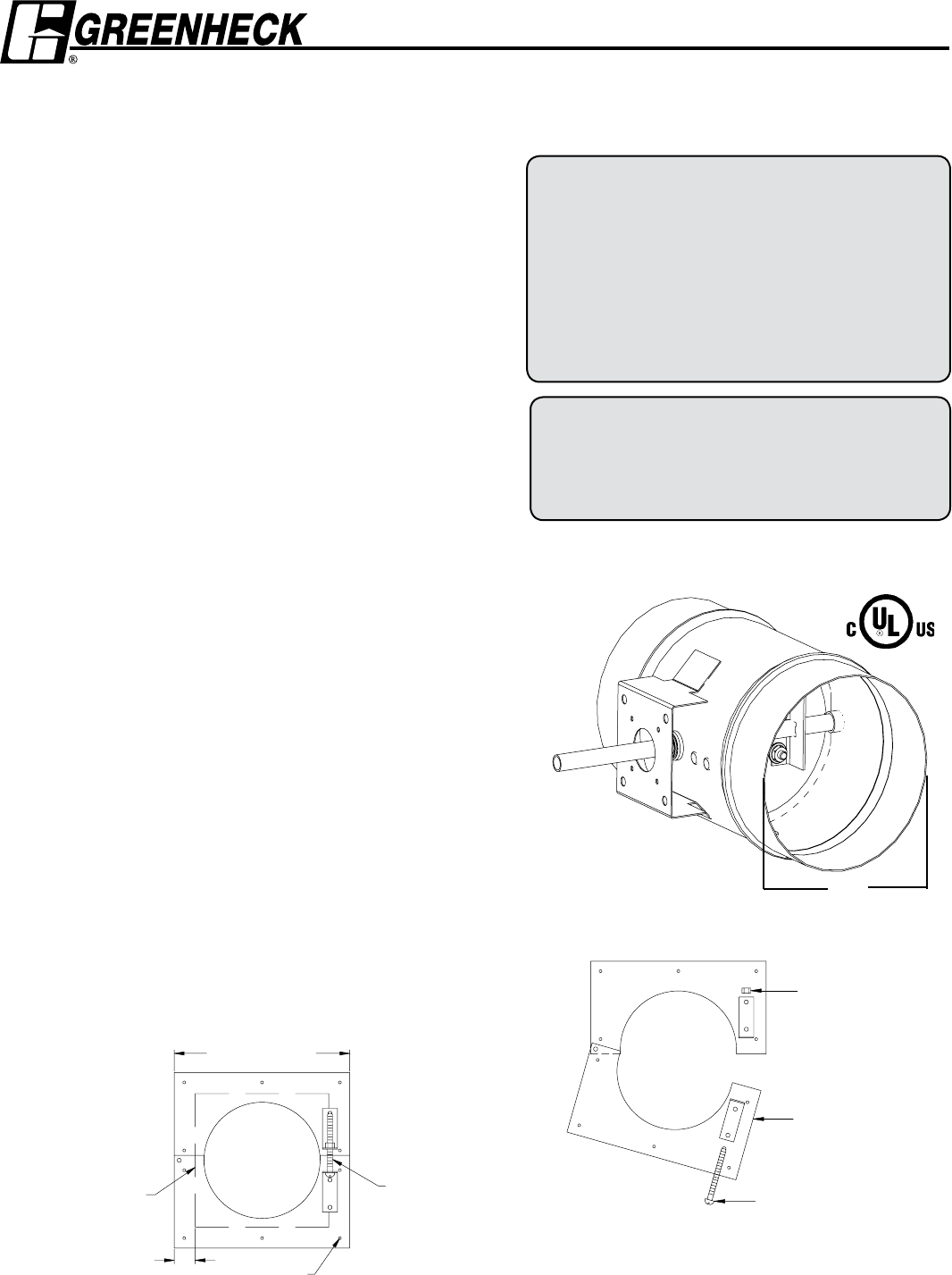

SEFSDR-511
Combination Fire Smoke Dampers
Round Stainless Steel Blade
UL 555S Leakage Class I
UL555 1 1/2 Hour Fire Resistance Rating
“UL CLASSIFIED (see complete marking on
product)”
“UL CLASSIFIED to Canadian safety standards
(see complete marking on product)”
Standard 555 (Listing #R13317)
Standard 555S (Listing #R13447)
Opening + 2 in. Min.
1.00 in. Min. Typ.
Fasteners
Clamping
Screw
Nut
Retaining
Plate Assembly
Clamping Screw
Minimum Wall/Floor Opening
= Nominal Dia. + 7/8 in.
Opening + 2 in. Min.
1.00 in. Min. Typ.
Fasteners
Clamping
Screw
Nut
Retaining
Plate Assembly
Clamping Screw
Minimum Wall/Floor Opening
= Nominal Dia. + 7/8 in.
