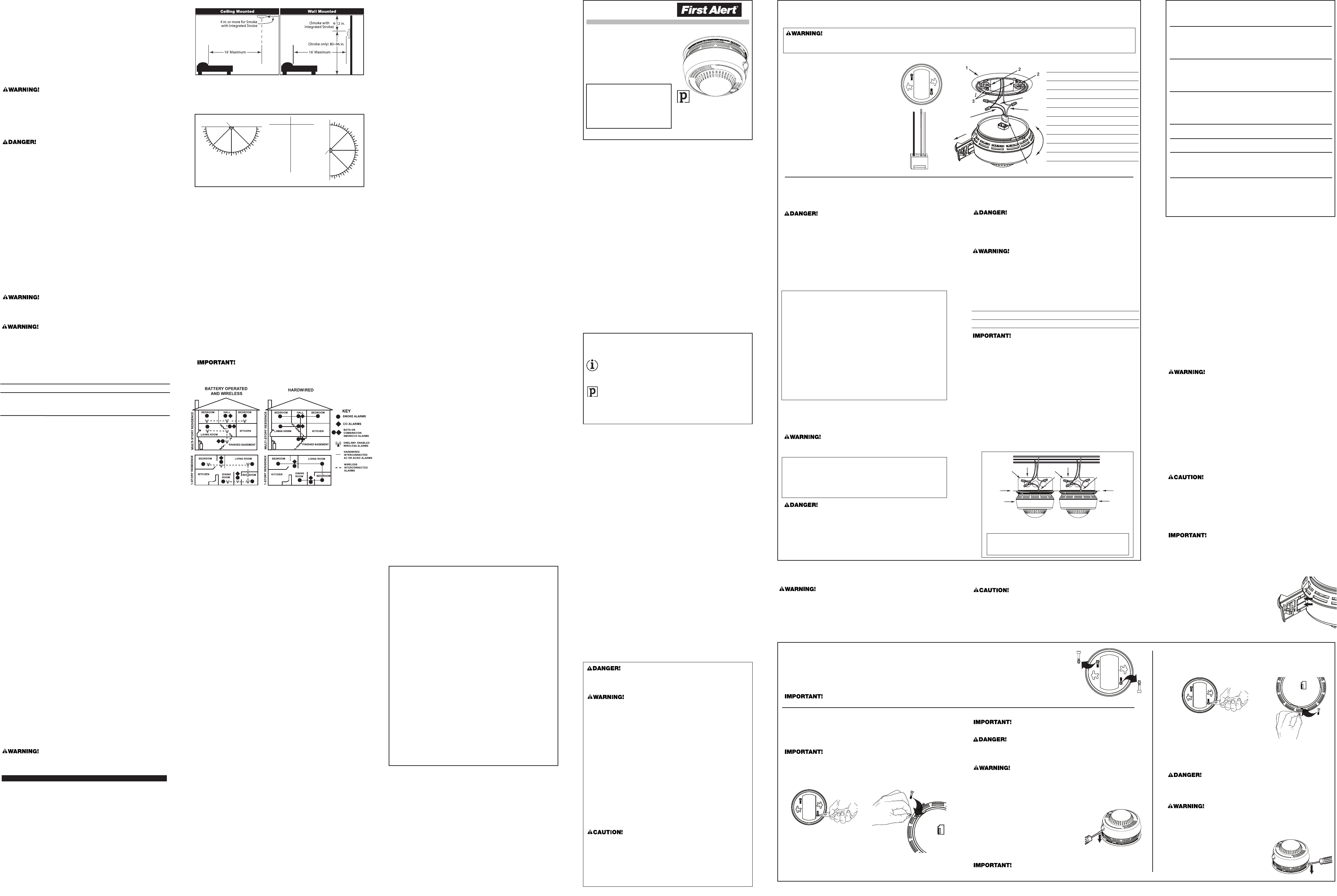

M
odel 7010BSL
M
08-0218-003 Q 08/11 Printed in Mexico
I
MPORTANT! PLEASE READ
C
AREFULLY AND SAVE.
This user’s manual contains
important information about your
Alarm’s operation. If you are
installing this Alarm for use by
others, you must leave this manual—
or a copy of it—with the end user.
INTRODUCTION
Thank you for choosing First Alert
®
for your Smoke Alarm and hearing
impaired strobe light needs. You have purchased a state of the art Smoke
and Strobe Light Combo Alarm designed to provide hearing impaired
individuals with a visual and audible warning of a fire. When used with
additional carbon monoxide or combination smoke & carbon monoxide
alarms it will also provide hearing impaired individuals with a visual and
audible warning of a carbon monoxide danger. Please take the time to
read this manual and make this Smoke and Strobe Light Combo Alarm
an integral part of your family’s safety plan. Key Features:
I
ntegrated Photoelectric Smoke Alarm and Strobe Light: One device
i
ncludes both a photoelectric smoke alarm and a strobe light. Requires only
o
ne electrical box. Saves installation time.
S
mart Strobe: Works with BRK smoke, heat and CO alarms. Separate flash
p
atterns to distinguish between smoke/heat or CO danger.
177 Candela Xenon Light: Powerful 177 candela xenon strobe light provides
effective visual warning to awaken hearing impaired residents.
1
Hz Flash Rate: 60 flashes per minute meets ADA, ANSI 117.1, NFPA 72
a
nd UL 1971 requirements for visual signaling devices.
B
attery Backup: Two AAA batteries provide backup for the smoke alarm
d
uring power outages. (Note: will not power the strobe light)
Meets ADA Requirements: Meets the requirements of the Americans with
Disabilities Act (ADA).
Two Latching Features: Alarm Latch - Visually identifies initiating alarm
even after alarm condition is over. Low Battery Latch – Visually identifies
w
hich unit is in low battery condition.
Two Silence Features: Temporarily silence low battery chirp for up to
eight hours before replacing battery or silence an unwanted alarm for
several minutes.
©
2011 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc.
3
901 Liberty Street Road, Aurora, IL 60504-8122
C
onsumer Affairs: (800) 323-9005
w
ww.firstalert.com • www.brkelectronics.com
F
IRE SAFETY TIPS
F
ollow safety rules and prevent hazardous situations: 1) Use smoking
m
aterials properly. Never smoke in bed. 2) Keep matches or lighters away
f
rom children; 3) Store flammable materials in proper containers;
4
) Keep electrical appliances in good condition and don’t overload electrical
c
ircuits; 5) Keep stoves, barbecue grills, fireplaces and chimneys grease-
a
nd debris-free; 6) Never leave anything cooking on the stove unattended;
7
) Keep portable heaters and open flames, like candles, away from flammable
m
aterials; 8) Don’t let rubbish accumulate.
Keep alarms clean, and test them weekly. Replace alarms immediately if they
are not working properly. Smoke Alarms that do not work cannot alert you to a
fire. Keep at least one working fire extinguisher on every floor, and an additional
one in the kitchen. Have fire escape ladders or other reliable means of escape
from an upper floor in case stairs are blocked.
BEFORE YOU INSTALL THIS SMOKE AND
STROBE LIGHT COMBO ALARM
IMPORTANT! Read “Recommended Locations for Smoke Alarms” and
“Locations to Avoid for Smoke Alarms” before beginning. This unit monitors
the air, and when smoke reaches its sensing chamber, it alarms. It can give
you more time to escape before fire spreads. This unit can ONLY give an early
warning of developing fires if it is installed, maintained and located where
smoke can reach it, and where all residents can hear it, as described in this
manual. This unit will not sense gas, heat, or flame. It cannot prevent or
extinguish fires.
Understand The Different Type of Smoke Alarms
Battery powered or electrical? Different Smoke Alarms provide different
types of protection. See “About Smoke Alarms” for details.
K
now Where To Install Your Smoke Alarms
Fire Safety Professionals recommend at least one Smoke Alarm on every
level of your home, in every bedroom, and in every bedroom hallway or
separate sleeping area. See “Recommended Locations For Smoke Alarms”
and “Locations To Avoid For Smoke Alarms” for details.
Know What Smoke Alarms Can and Can’t Do
A Smoke Alarm can help alert you to fire, giving you precious time to
escape. It can only sound an alarm once smoke reaches the sensor.
See “Limitations of Smoke Alarms” for details.
Check Your Local Building Codes
This Smoke Alarm is designed to be used in a typical single-family home.
It alone will not meet requirements for boarding houses, apartment
buildings, hotels or motels. See “Special Compliance Considerations”
for details.
5 6 7 1 2 3
A
ll First Alert
®
a
nd BRK
®
S
moke Alarms conform to regulatory
r
equirements, including UL217 and are designed to detect particles of
c
ombustion. Smoke particles of varying number and size are produced
i
n all fires.
Ionization technology is generally more sensitive than photoelectric
technology at detecting small particles, which tend to be produced
in greater amounts by flaming fires, which consume combustible
materials rapidly and spread quickly. Sources of these fires may include
paper burning in a wastebasket, or a grease fire in the kitchen.
P
hotoelectric technology is generally more sensitive than ionization
t
echnology at detecting large particles, which tend to be produced in
g
reater amounts by smoldering fires, which may smolder for hours
b
efore bursting into flame. Sources of these fires may include cigarettes
b
urning in couches or bedding.
F
or maximum protection, use both types of Smoke Alarms on each
l
evel and in every bedroom of your home.
USER’S MANUAL
ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the
Smoke Alarm is installed before removing it from the mounting bracket.
Failure to turn off the power first may result in serious electrical shock,
injury or death.
• Installation of this unit must conform to the electrical codes
in your area; Articles 210 and 300.3 (B) of NFPA 70 (NEC),
NFPA 72, NFPA 101; SBC (SBCCI); UBC (ICBO); NBC (BOCA);
OTFDC (CABO), and any other local or building codes that may
apply. Wiring and installation must be performed by a licensed
electrician. Failure to follow these guidelines may result in
injury or property damage.
• This unit must be powered by a 24-hour, 120VAC pure sine wave
60Hz circuit. Be sure the circuit cannot be turned off by a switch,
dimmer, or ground fault circuit interrupter. Failure to connect this
unit to a 24-hour circuit may prevent it from providing constant
protection.
• This Alarm must have AC or battery power to operate.
If the AC power fails, battery back-up will allow the alarm to
sound for at least 4 minutes. If AC power fails and the battery is
weak, protection should last for at least 7 days. If AC power fails
and the battery is dead or missing, the alarm cannot operate.
• Never disconnect the power from an AC powered unit to stop an
unwanted alarm. Doing so will disable the unit and remove your
protection. In the case of a true unwanted alarm open a window
or fan the smoke away from the unit. The alarm will reset auto-
matically when it returns to normal operation. Never remove the
batteries from a battery operated unit to stop an unwanted alarm
(caused by cooking smoke, etc.). Instead open a window or fan
the smoke away from the unit. The alarm will reset automatically.
• Connect this unit ONLY to other compatible units. See “How To
Install This Alarm” for details. Do not connect it to any other
type of alarm or auxiliary device. Connecting anything else to
this unit may damage it or prevent it from operating properly.
• Do not stand too close to the unit when the alarm is sounding.
It is loud to wake you in an emergency. Exposure to the horn at
close range may harm your hearing.
• Do not paint over the unit. Paint may clog the openings to the
sensing chambers and prevent the unit from operating properly.
The Mounting Bracket:
To remove the mounting bracket from the Alarm
base, hold the Alarm base firmly and twist the
mounting bracket counterclockwise. The mounting
bracket installs onto the junction box. It has a
variety of screw slots to fit most boxes.
T
he Power Connector:
T
he power connector plugs into a power input block on
t
he Alarm. It supplies the unit with AC power.
•
The black wire is “hot.”
•
The white wire is neutral.
• The orange wire is used for interconnect.
If you need to remove the power connector, turn
POWER OFF first. Insert a flat screwdriver blade
between the power connector and the security tab
inside the power input block. Gently pry back the tab
and pull the connector free.
4
5
6
8
9
10
7
The Parts of This Unit
1
Mounting Bracket
2 Mounting Slots
3 Locking Pins (break out of bracket)
4
Hot (Black) AC Wire
5
Neutral (White) AC Wire
6 Interconnect (Orange) Wire
7 Quick-Connect Power Connector
8 Turn this way to remove from bracket
9
Turn this way to attach to bracket
10 Slide-Out Battery Drawer
T
he basic installation of this Alarm is similar whether you want to install one
A
larm, or interconnect more than one Alarm. If you are interconnecting more
t
han one Alarm, you MUST read “Special Requirements For Interconnected
A
larms” below before you begin installation.
ELECTRICAL SHOCK HAZARD. Turn off power to the area where you
will install this unit at the circuit breaker or fuse box before beginning
installation. Failure to turn off the power before installation may result
in serious electrical shock, injury or death.
1
. Remove the mounting bracket from the base, and attach it to the
j
unction box.
Activate the battery back-up by removing the “Pull to Activate Battery
Back-Up” tab. Or, install battery back-up. Battery back-up cannot work
until you install the battery in the correct position (Match “+” to “+” and
“-” to “-”).
P
ush and hold Test button until the alarm sounds:
3
beeps, pause, 3 beeps, pause.
2
. Using wire nuts, connect the power connector to the household wiring.
3. Plug the power connector into the back of the Alarm.
4. Position the base of the Alarm over the mounting bracket and turn.
The Alarm can be positioned over the bracket every 90°.
Turn the Alarm clockwise (right) until the unit is in place.
5. Check all connections.
I
mproper wiring of the power connector or the wiring leading to the
p
ower connector will cause damage to the Alarm and may lead to a
n
on-functioning Alarm.
ELECTRICAL SHOCK HAZARD. Do not restore power until all Alarms
are completely installed. Restoring power before installation is complete
may result in serious electrical shock, injury or death.
6
. Make sure the Alarm is receiving AC power. Under normal operation,
t
he Green power indicator light will shine continuously.
7. If the Green power indicator light does not light, TURN OFF POWER
TO THE JUNCTION BOX and recheck all connections. If all connections
are correct and the Green power indicator still does not light when you
restore the power, the unit should be replaced immediately.
8
. Test each Alarm. Press and hold the Test/Silence button until the unit
a
larms. When testing a series of interconnected units you must test
e
ach unit individually. Make sure all units alarm when each one is
t
ested.
I
f any unit in the series does not alarm, TURN OFF POWER and recheck
c
onnections. If it does not alarm when you restore power, replace it
i
mmediately.
Special Requirements For Interconnected Alarms
• Failure to meet any of the above requirements could damage the
units and cause them to malfunction, removing your protection.
• AC and AC/DC Alarms can be interconnected. Under AC power,
all units will alarm when one senses smoke. When power is
interrupted, only the AC/DC units in the series will continue to
send and receive signals. AC powered Alarms will not operate.
I
nterconnected units can provide earlier warning of fire than stand-alone units,
e
specially if a fire starts in a remote area of the dwelling. If any unit in the series
s
enses smoke, all units will alarm. To determine which Alarm initiated an alarm,
s
ee table:
On Initiating Alarms Red LED flashes rapidly
O
n All Other Alarms Red LED is Off
I
nterconnect units within a single family residence only. Otherwise all
h
ouseholds will experience unwanted alarms when you test any unit in the
s
eries. Interconnected units will only work if they are wired to compatible
u
nits and all requirements are met. This unit is designed to be compatible
w
ith: First Alert
®
S
moke Alarm Models SA4120, SA4121B, SA100B, SA520
a
nd BRK
®
S
moke Alarm Models 9120, 9120B, SC6120B, SC9120B, 7010,
7
010B, 7010BSL, 7020B, SC7010B, SC7010BV, 100S, 4120, 4120B, 4120SB;
B
RK
®
C
O Alarm Models CO5120BN, CO5120PDBN; BRK
®
H
eat Alarm
M
odels HD6135F and HD6135FB; BRK
®
A
uxiliary Devices Models RM3
a
nd RM4 (Relay Modules), SL177 (Strobe Light).
S
ee www.brkelectronics.com for most current interconnect list.
Interconnected units must meet ALL of the following requirements:
•
A maximum of 18 compatible units may be interconnected
(
Maximum of 12 Smoke Alarms).
•
The same fuse or circuit breaker must power all interconnected units.
•
The total length of wire interconnecting the units should be less than
1
000 feet (300 meters). This type of wire is commonly available at
H
ardware and Electrical Supply stores.
•
All wiring must conform to all local electrical codes and NFPA 70 (NEC).
Refer to NFPA 72, NFPA 101, and/or your local building code for further
connection requirements.
HOW TO INSTALL THIS ALARM
THE PARTS OF THIS ALARM
T
his Alarm is designed to be mounted on any standard wiring junction box up to a 4-inch (10 cm) size, on either the ceiling or wall (if allowed by local codes).
R
ead “Recommended Locations For Smoke Alarms” and “Locations to Avoid For Smoke Alarms” before you begin installation.
T
ools you will need: • Needle-nose pliers or utility knife • Standard Flathead screwdriver.
FOLLOW THESE INSTALLATION STEPS
STAND-ALONE ALARM ONLY:
•
Connect the white wire on the power connector to the neutral wire in
t
he junction box.
•
Connect the black wire on the power connector to the hot wire in the
j
unction box.
•
Tuck the orange wire inside the junction box. It is used for interconnect
o
nly.
I
NTERCONNECTED UNITS ONLY:
Strip off about 1/2” (12 mm) of the plastic coating on the orange wire
on the power connector.
•
Connect the white wire on the power connector to the neutral wire in
t
he junction box.
•
Connect the black wire on the power connector to the hot wire in the
j
unction box.
•
C
onnect the orange wire on the power connector to the interconnect
w
ire in the junction box. Repeat for each unit you are interconnecting.
N
ever connect the hot or neutral wires in the junction box to the orange
i
nterconnect wire. Never cross hot and neutral wires between Alarms.
STAND-ALONE ALARM ONLY:
•
If you are only installing one Alarm, restore power to the junction box.
I
NTERCONNECTED ALARMS ONLY:
• If you are interconnecting multiple Alarms, repeat steps 1-5 for
each Alarm in the series. When you are finished, restore power
to the junction box.
5
}
A
}
B
8
7
6
3
1
1
2
2
3
4 4
5
A. Unswitched 120VAC
6
0 Hz source
B. To additional units; Maximum = 18 total
(
Maximum 12 Smoke Alarms)
1. Alarm
2
. Ceiling or Wall
3. Power Connector
4. Wire Nut
5
. Junction Box
6. Neutral Wire (Wht)
7. Interconnect Wire
(Orange)
8. Hot Wire (Blk)
4
OPTIONAL LOCKING FEATURES
The locking features are designed to discourage unauthorized removal of the battery or Alarm. It is not necessary to activate
the locks in single-family households where unauthorized battery or Alarm removal is not a concern.
These Alarms have two separate locking features: one to lock the battery compartment, and the other to lock the Alarm to the mounting
bracket. You can choose to use either feature independently, or use them both.
Tools you will need: • Needle-nose pliers or utility knife • Standard Flathead screwdriver.
Both locking features use locking pins, which are molded into the mounting bracket. Using needle-nose pliers or a utility knife, remove
one or both pins from the mounting bracket, depending on how many locking features you want to use.
To permanently remove either lock, insert a flathead screwdriver between the locking pin and the lock, and pry the pin out of the lock.
TO LOCK THE BATTERY COMPARTMENT
Do not lock the battery compartment until you have installed the
battery and tested the battery back-up.
1. Push and hold Test button until the alarm sounds:
3 beeps, pause, 3 beeps, pause.
If the unit does not alarm during testing, DO NOT lock the battery
compartment! Install a new battery and test again. If the Alarm still
does not alarm, replace it immediately.
2. Using needle-nose pliers or a utility knife, detach one locking pin
from the mounting bracket.
3. Push the locking pin through the hole near the battery drawer on the
back of the Alarm.
TO UNLOCK THE BATTERY COMPARTMENT
Once the Alarm is installed, you must disconnect it from the AC power before
unlocking the battery compartment.
ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the
Alarm is installed before removing it from the mounting bracket. Failure
to turn off the power first may result in serious electrical shock, injury or
death.
Always discharge the branch circuit before servicing an AC or AC/DC
Alarm. First, turn off the AC power at the circuit breaker or fuse box.
Next, remove the battery from Alarms with battery back-up. Finally, press
and hold the Test/Silence button for 5-10 seconds to discharge the branch
circuit.
1. Remove the Alarm from the mounting bracket. If the unit is locked to the
bracket, see the section “To Unlock the Mounting Bracket.”
2. Disconnect the power connector by gently
prying it away from the back of the Alarm.
3. Insert a flathead screwdriver under the head
of the locking pin, and gently pry it out of the
battery compartment lock. (If you plan to relock
the battery compartment, save the locking pin.)
4. To relock the battery compartment, close the
battery door and reinsert locking pin in lock.
5. Reconnect the power connector to the back of the Alarm, reattach the
Alarm to the mounting bracket, and restore the power.
When replacing the battery, always test the Alarm before relocking the battery
compartment.
TO UNLOCK THE MOUNTING BRACKET
ELECTRICAL SHOCK HAZARD. Turn off the power to the area where the
Alarm is installed before removing it from the mounting bracket. Failure
to turn off the power first may result in serious electrical shock, injury
or death.
Always discharge the branch circuit before servicing an AC or AC/DC
Alarm. First, turn off the AC power at the circuit breaker or fuse box.
Next, remove the battery from Alarms with battery back-up. Finally,
press and hold the Test/Silence button for 5-10 seconds to discharge
the branch circuit.
1. Insert a flathead screwdriver between the
mounting bracket pin and the mounting
bracket.
2. Pry the Alarm away from the bracket by
turning both the screwdriver and the Alarm
counterclockwise (left) at the same time.
TO LOCK THE MOUNTING BRACKET
1. Using needle-nose pliers, detach one locking pin from mounting bracket.
2. Insert the locking pin into the lock located
opposite from the battery drawer as shown
in the diagram.
3. When you attach the Alarm to the mounting bracket, the locking pin’s
head will fit into a notch on the bracket.
Locking Features (Continued)
Printed in Mexico M08-0218-003 Q 08/11
First Alert
®
is a registered trademark of the First Alert Trust.
BRK
®
is a registered trademark of BRK Brands, Inc.
It is important to test this unit every week to make sure it is working
properly. Using the test button is the recommended way to test this
Alarm. Press and hold the Test/Silence button on the cover of the unit until
the alarm sounds (the unit may continue to alarm for a few seconds after you
release the button). If it does not alarm, make sure the unit is receiving power
and test it again. If it still does not alarm, replace it immediately. During
testing, you will hear a loud, repeating horn pattern: 3 beeps, pause,
3 beeps, pause and the strobe light will begin flashing.
When testing a series of interconnected units you must test each unit
individually. Make sure all units alarm when each one is tested.
N
ote: If you have interconnected this alarm with a BRK carbon monoxide
a
larm, when you test that alarm you will hear a loud repeating horn
p
attern from this alarm: 4 rapid beeps, pause, 4 rapid beeps, pause.
I
n addition, the strobe light will flash approximately 1 flash per second
f
or four flashes, then 5 seconds off. The pattern is repeated.
If you have interconnected this alarm with a BRK combination smoke &
carbon monoxide alarm, when you test that alarm you will hear a loud
repeating horn pattern from this alarm: 3 beeps, pause, 3 beeps, pause
and the strobe light will flash constant approximately 1 flash per second.
Then you will hear a loud repeating horn pattern from this alarm: 4 rapid
beeps, pause, 4 rapid beeps, pause and the strobe light will flash
approximately 1 flash per second for four flashes, then 5 seconds off.
The pattern is repeated.
REGULAR MAINTENANCE
U
se only the replacement batteries listed below. The unit may not
o
perate properly with other batteries. Never use rechargeable batteries
s
ince they may not provide a constant charge.
T
his unit has been designed to be as maintenance-free as possible, but there
a
re a few simple things you must do to keep it working properly:
• Test it at least once a week.
•
Clean the Alarm at least once a month; gently vacuum the outside of the
A
larm using your household vacuum’s soft brush attachment. Test the
A
larm. Never use water, cleaners or solvents since they may damage
t
he unit.
•
If the Alarm becomes contaminated by excessive dirt, dust and/or grime,
a
nd cannot be cleaned to avoid unwanted alarms, replace the unit
i
mmediately.
•
Relocate the unit if it sounds frequent unwanted alarms. See “Locations
T
o Avoid For Smoke Alarms” for details.
•
When the battery back-up becomes weak, the Alarm will “chirp” about
o
nce a minute (the low battery warning). This warning should last 7 days,
b
ut you should replace the battery immediately to continue your protection.
I
f the strobe light lens is loose or broken, the entire unit should be
r
eplaced immediately. Never remove the strobe light lens for any reason.
D
oing so can permanently damage the unit and will void your warranty.
C
hoosing a replacement battery:
Y
our Alarm requires two alkaline AAA batteries. The following batteries are
a
cceptable as replacements: Energizer E92, Duracell Standard MN2400 or
U
ltra MX2400, Golden Power (GP) LR03. You may also use a Lithium battery
l
ike the Energizer EA92 or L92 for longer service life between battery changes.
T
hese batteries are available at many local retail stores.
Actual battery service life depends on the alarm and the environment in which
it is installed. All the batteries specified above are acceptable replacement
batteries for this unit. Regardless of the manufacturer’s suggested battery
life, you MUST replace the battery immediately once the unit starts
“chirping” (the “low battery warning”).
UNDERSTANDING THE INDICATOR LIGHTS
AND ALARM HORN PATTERNS
N
OTE: When power is applied, unit(s) may alarm momentarily.
*When any Alarm in an interconnected series triggers an alarm, its red
LED will flash rapidly. The red LEDs will remain OFF on any remaining
alarms in the series. This feature helps responders identify which unit(s)
triggered the alarm.
*
*NOTE: The strobe light will not operate under battery power.
A
C Power
B
attery Power
N
ormal Operation Constant Green LED
No Audible Alarm
Strobe off
G
reen LED Off
Flashing Green LED
approx. once/minute
N
o Audible Alarm
Strobe disabled**
T
est Condition Green LED Off
R
apidly Flashing
R
ed LED
Audible Alarm
Strobe Flashing
G
reen LED Off
Rapidly Flashing
Red LED
Audible Alarm
Strobe disabled**
Silence Mode Rapidly Flashing
Red LED
Rapidly Flashing
Red LED
Alarm Condition*
(Initiating Unit)
Green LED Off
Rapidly Flashing
Red LED
Audible Alarm
S
trobe Flashing
Green LED Off
R
apidly Flashing
R
ed LED
Audible Alarm
S
trobe disabled**
IF THIS SMOKE & STROBE LIGHT ALARM SOUNDS
RESPONDING TO AN ALARM
D
uring a smoke incident at this alarm, you will hear a loud repeating horn
p
attern: 3 beeps, pause, 3 beeps, pause and the strobe light will flash
c
onstant approximately 1 flash per second.
N
ote: If you have interconnected this alarm with a BRK carbon monoxide
a
larm or combination smoke & carbon monoxide alarm, when there is
a
carbon monoxide incident you will hear a loud repeating horn pattern
f
rom this alarm: 4 rapid beeps, pause, 4 rapid beeps, pause. In addition,
t
he strobe light will intermittently flash approximately 1 flash per second
f
or four flashes, then 5 seconds off. The pattern is repeated.
If you have interconnected this alarm with a BRK smoke alarm, heat
alarm or a combination smoke & carbon monoxide alarm, when there is
a smoke incident you will hear a loud repeating horn pattern from this
alarm: 3 beeps, pause, 3 beeps, pause and the strobe light will flash
constant approximately 1 flash per second.
• If the unit alarms and you are not testing the unit, it is warning you of a
potentially dangerous situation that requires your immediate attention.
NEVER ignore any alarm. Ignoring the alarm may result in injury or
death.
• Never disconnect the AC power to quiet an unwanted alarm.
Disconnecting the power disables the Alarm so it cannot sense
smoke. This will remove your protection. Instead, open a window or
fan the smoke away from the unit. The Alarm will reset automatically.
• If the unit alarms get everyone out of the house immediately.
•
ELECTRICAL SHOCK HAZARD: Attempting to disconnect the power
connector from the unit when the power is on may result in electrical
shock, serious injury or death.
When an interconnected system of AC powered units is in alarm, the alarm
indicator light on the unit(s) that initiated the alarm will blink rapidly. It will
remain OFF on any remaining units.
If the unit alarms, get everyone out of the dwelling immediately.
If the unit alarms and you are certain that the source of smoke is not a fire—
cooking smoke or an extremely dusty furnace, for example—open a nearby
window or door and fan the smoke away from the unit (Use the Silence Feature
to silence the Alarm). This will silence the alarm, and once the smoke clears the
unit will reset itself automatically.
WHAT TO DO IN CASE OF FIRE
• Don’t panic; stay calm. Follow your family escape plan.
•
Get out of the house as quickly as possible. Don’t stop to
g
et dressed or collect anything.
• Feel doors with the back of your hand before opening them.
If a door is cool, open it slowly. Don’t open a hot door. Keep doors
and windows closed, unless you must escape through them.
• Cover your nose and mouth with a cloth (preferably damp).
Take short, shallow breaths.
•
Meet at your planned meeting place outside your home,
a
nd do a head count to make sure everybody got out safely.
• Call the Fire Department as soon as possible from outside.
Give your address, then your name.
• Never go back inside a burning building for any reason.
•
Contact your Fire Department for ideas on making your home safer.
Alarms have various limitations. See "Limitations of Smoke Alarms" for
details.
LIMITED WARRANTY
BRK Brands, Inc., ("BRK") the maker of First Alert
®
brand and BRK
®
brand
products, warrants that for a period of ten years from the date of purchase, this
product will be free from defects in material and workmanship. BRK, at its option,
will repair or replace this product or any component of the product found to be
defective during the warranty period. Replacement will be made with a new or
remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value.
This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail
purchase and is not transferable. Keep the original sales receipt. Proof of purchase
is required to obtain warranty performance. BRK dealers, service centers, or retail
stores selling BRK products do not have the right to alter, modify or any way
change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of
the following: negligent use or misuse of the product, use on improper voltage or
current, use contrary to the operating instructions, disassembly, repair or alteration
by anyone other than BRK or an authorized service center. Further, the warranty
does not cover Acts of God, such as fire, flood, hurricanes and tornadoes or any
batteries that are included with this unit.
BRK shall not be liable for any incidental or consequential damages caused by
the breach of any express or implied warranty. Except to the extent prohibited by
applicable law, any implied warranty of merchantability or fitness for a particular
purpose is limited in duration to the duration of the above warranty. Some states,
provinces or jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts, so
the above limitations or exclusion may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to
state or province to province.
How to Obtain Warranty Service
Service: If service is required, do not return the product to your retailer. In order to
obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005,
7:30 AM - 5:00 PM Central Standard Time, Monday through Friday. To assist us in
serving you, please have the model number and date of purchase available when
calling. For Warranty Service return to:
BRK Brands, Inc., 25 Spur Drive, El Paso, TX 79906
Battery: BRK Brands, Inc. make no warranty, express or implied, written or oral,
including that of merchantability or fitness for any particular purpose with respect
to battery.
LIMITATIONS OF SMOKE ALARMS
S
moke Alarms have played a key role in reducing deaths resulting from home fires
w
orldwide. However, like any warning device, Smoke Alarms can only work if they
a
re properly located, installed, and maintained, and if smoke reaches the Alarms.
T
hey are not foolproof.
S
moke alarms may not waken all individuals. Practice the escape plan at least
t
wice a year, making sure that everyone is involved – from kids to grandparents.
A
llow children to master fire escape planning and practice before holding a fire drill
at night when they are sleeping. If children or others do not readily waken to the
sound of the smoke alarm, or if there are infants or family members with mobility
limitations, make sure that someone is assigned to assist them in fire drill and in
the event of an emergency. It is recommended that you hold a fire drill while family
members are sleeping in order to determine their response to the sound of the
smoke alarm while sleeping and to determine whether they may need assistance in
the event of an emergency.
Smoke Alarms cannot work without power. Battery operated units cannot work if
the batteries are missing, disconnected or dead, if the wrong type of batteries are
used, or if the batteries are not installed correctly. AC units cannot work if the AC
power is cut off for any reason (open fuse or circuit breaker, failure along a power
line or at a power station, electrical fire that burns the electrical wires, etc.). If you are
concerned about the limitations of battery or AC power, install both types of units.
S
moke Alarms cannot detect fires if the smoke does not reach the Alarms.
S
moke from fires in chimneys or walls, on roofs, or on the other side of closed doors
m
ay not reach the sensing chamber and set off the Alarm. That is why one unit
s
hould be installed inside each bedroom or sleeping area—especially if bedroom
o
r sleeping area doors are closed at night—and in the hallway between them.
Smoke Alarms may not detect fire on another floor or area of the dwelling.
For example, a stand-alone unit on the second floor may not detect smoke from a
basement fire until the fire spreads. This may not give you enough time to escape
safely. That is why recommended minimum protection is at least one unit in every
sleeping area, and every bedroom on every level of your dwelling. Even with a unit
on every floor, stand-alone units may not provide as much protection as intercon-
nected units, especially if the fire starts in a remote area. Some safety experts
recommend installing interconnected AC powered units with battery back-up
(see “About Smoke Alarms”) or professional fire detection systems, so if one unit
senses smoke, all units alarm. Interconnected units may provide earlier warning
than stand-alone units since all units alarm when one detects smoke.
S
moke Alarms may not be heard. Though the alarm horn in this unit meets or
e
xceeds current standards, it may not be heard if: 1) the unit is located outside a
c
losed or partially closed door, 2) residents recently consumed alcohol or drugs,
3
) the Alarm is drowned out by noise from stereo, TV, traffic, air conditioner or other
a
ppliances, 4) residents are hearing impaired or sound sleepers. Special purpose
u
nits, like those with visual and audible alarms, should be installed for hearing
i
mpaired residents.
Smoke Alarms may not have time to alarm before the fire itself causes damage,
injury, or death, since smoke from some fires may not reach the unit immedi-
ately. Examples of this include persons smoking in bed, children playing with
matches, or fires caused by violent explosions resulting from escaping gas.
Smoke Alarms are not foolproof. Like any electronic device, Smoke Alarms are
made of components that can wear out or fail at any time. You must test the unit
weekly to ensure your continued protection. Smoke Alarms cannot prevent or
extinguish fires. They are not a substitute for property or life insurance.
Smoke Alarms have a limited life. The unit should be replaced immediately if it is
not operating properly. You should always replace a Smoke Alarm after 10 years from
date of purchase. Write the purchase date on the space provided on back of unit.
AC Powered Photoelectric Smoke
& Strobe Light Combo Alarm
Model 7010BSL
Input: 120V AC ~, 60Hz
Electrical Rating:
0.05A Standby, 0.60A Alarm
Voltage Rating:
Special Application 108–132 VAC
M
ake sure the Alarm is not receiving excessively noisy power. Examples of noisy power could be major appliances on the same circuit, power from a
g
enerator or solar power, light dimmer on the same circuit or mounted near fluorescent lighting. Excessively noisy power may cause damage to your
A
larm.
Low Battery Alarm “chirp’’ approx.
once/minute
Alarm “chirp’’ approx.
once/minute
M
alfunction Signal Alarm 3 “chirps’’ every
m
inute
Green LED 3 Flashes
approx. once/minute
A
larm 3 “chirps’’ every
m
inute
Green LED 3 Flashes
approx. once/minute
LISTED TO
UL 217 & UL 1971
STANDARDS
AGENCY PLACEMENT RECOMMENDATIONS
N
FPA 72 Chapter 29
“For your information, the National Fire Alarm and Signaling Code, NFPA 72,
reads as follows:”
2
9.5.1* Required Detection.
29.5.1.1* Where required by other governing laws, codes, or standards for a
specific type of occupancy, approved single and multiple-station smoke alarms
shall be installed as follows:
(1)*In all sleeping rooms and guest rooms
(
2)*Outside of each separate dwelling unit sleeping area, within 21 ft (6.4 m) of any
d
oor to a sleeping room, with the distance measured along a path of travel
(3) On every level of a dwelling unit, including basements
(
4) On every level of a residential board and care occupancy (small facility),
i
ncluding basements and excluding crawl spaces and unfinished attics
(5)*In the living area(s) of a guest suite
(
6) In the living area(s) of a residential board and care occupancy (small facility)
(Reprinted with permission from NFPA 72
®
, National Fire Alarm and Signaling Code
Copyright © 2010 National Fire Protection Association, Quincy, MA 02269.
This reprinted material is not the complete and official position of the National Fire
Protection Association, on the referenced subject which is represented only by the
standard in its entirety), (National Fire Alarm and Signaling Code
®
and NFPA 72
®
are
registered trademarks of the National Fire Protection Association, Inc., Quincy, MA
02269).
California State Fire Marshal (CSFM)
Early warning detection is best achieved by the installation of fire detection equipment
in all rooms and areas of the household as follows: A Smoke Alarm installed in each
separate sleeping area (in the vicinity, but outside bedrooms), and Heat or Smoke
Alarms in the living rooms, dining rooms, bedrooms, kitchens, hallways, finished
attics, furnace rooms, closets, utility and storage rooms, basements, and attached
garages.
LOCATIONS TO AVOID FOR SMOKE ALARMS
For best performance, AVOID installing Smoke Alarms in these areas:
• Where combustion particles are produced. Combustion particles form when
something burns. Areas to avoid include poorly ventilated kitchens, garages,
and furnace rooms. Keep units at least 20 feet (6 meters) from the sources of
combustion particles (stove, furnace, water heater, space heater) if possible.
In areas where a 20-foot (6 meter) distance is not possible – in modular,
mobile, or smaller homes, for example – it is recommended the Smoke Alarm
be placed as far from these fuel-burning sources as possible. The placement
recommendations are intended to keep these Alarms at a reasonable distance
from a fuel-burning source, and thus reduce “unwanted” alarms. Unwanted
alarms can occur if a Smoke Alarm is placed directly next to a fuel-burning
source. Ventilate these areas as much as possible.
• In air streams near kitchens. Air currents can draw cooking smoke into the
sensing chamber of a Smoke Alarm near the kitchen.
• In very damp, humid or steamy areas, or directly near bathrooms with showers.
Keep units at least 10 feet (3 meters) away from showers, saunas, dishwashers,
etc.
• Where the temperatures are regularly below 40˚ F (4.4˚ C) or above 100˚ F
(37.8˚ C) including unheated buildings, outdoor rooms, porches, or unfinished
attics or basements.
• In very dusty, dirty, or greasy areas. Do not install a Smoke Alarm directly over
the stove or range. Clean a laundry room unit frequently to keep it free of dust
or lint.
• Near fresh air vents, ceiling fans, or in very drafty areas. Drafts can blow
smoke away from the unit, preventing it from reaching sensing chamber.
• In insect infested areas. Insects can clog openings to the sensing chamber and
cause unwanted alarms.
• Less than 12 inches (305 mm) away from fluorescent lights. Electrical “noise”
can interfere with the sensor.
• In “dead air” spaces. “Dead air” spaces may prevent smoke from reaching the
Smoke Alarm.
AVOIDING DEAD AIR SPACES
“Dead air” spaces may prevent smoke from reaching the Smoke Alarm. To avoid
dead air spaces, follow the installation recommendations below.
On ceilings, install Smoke Alarms as close to the center of the ceiling as possible.
If this is not possible, install the Smoke Alarm at least 4 inches (102 mm) from the
wall or corner.
For wall mounting (if allowed by building codes), the top edge of Smoke Alarms
should be placed between 4 inches (102 mm) and 12 inches (305 mm) from the
wall/ceiling line, below typical “dead air” spaces.
On a peaked, gabled, or cathedral ceiling, install the first Smoke Alarm within 3
feet (0.9 meters) of the peak of the ceiling, measured horizontally. Additional Smoke
Alarms may be required depending on the length, angle, etc. of the ceiling's slope.
Refer to NFPA 72 for details on requirements for sloped or peaked ceilings.
SPECIAL COMPLIANCE CONSIDERATIONS
T
his Smoke Alarm is suitable for use in apartments, condominiums, townhouses,
h
ospitals, day care facilities, health care facilities, boarding houses, group homes
a
nd dormitories provided a primary fire detection system already exists to meet
f
ire detection requirements in common areas like lobbies, hallways, or porches.
U
sing this Smoke Alarm in common areas may not provide sufficient warning to
a
ll residents or meet local fire protection ordinances/regulations.
This Smoke Alarm alone is not a suitable substitute for complete fire detection
systems in places housing many people—like apartment buildings, condominiums,
hotels, motels, dormitories, hospitals, health care facilities, nursing homes,
day care facilities, or group homes of any kind. It is not a suitable substitute for
complete fire detection systems in warehouses, industrial facilities, commercial
buildings, and special-purpose non-residential buildings which require special fire
detection and alarm systems. Depending on the building codes in your area, this
Smoke Alarm may be used to provide additional protection in these facilities.
In new construction, most building codes require the use of AC or AC/DC powered
Smoke Alarms only. In existing construction, AC, AC/DC, or DC powered Smoke
Alarms can be used as specified by local building codes. Refer to NFPA 72
(National Fire Alarm and Signaling Code) and NFPA 101 (Life Safety Code),
local building codes, or consult your Fire Department for detailed fire protection
requirements in buildings not defined as “households”.
To replace the batteries (without removing Alarm from the ceiling or wall):
1
. Open the battery compartment.
2. Press tabs A and B as shown in the diagram
and remove each battery.
3. Insert the new batteries, making sure they
snap completely into the battery compartment.
Match the terminals on the ends of the
batteries with the terminals on the unit.
4. Close the battery compartment, and then test
the unit by pressing the Test/Silence button.
A
B
WEEKLY TESTING, Continued
U
SING THE SILENCE FEATURES
N
ever remove the batteries to quiet an unwanted alarm. Removing the
b
atteries disables the alarm and removes your protection.
T
he Silence Feature is intended to temporarily silence the horn while you
i
dentify and correct the problem. Do not use the Silence Feature in emergency
s
ituations. It will not extinguish a fire.
T
he Silence Feature can temporarily quiet an unwanted alarm for several
m
inutes. You can silence this Alarm by pressing the Test/Silence button on
t
he alarm cover for at least 3-5 seconds.
After the Test/Silence button is released, the Red LED blinks during the
silence mode.
SILENCING THE LOW BATTERY WARNING
T
his Silence Feature can temporarily quiet the low battery warning “chirp” for
u
p to 8 hours if AC/DC power is present. Press the Test/Silence button on the
A
larm cover until you hear the acknowledge “chirp”.
O
nce the low battery warning “chirp” silence feature is activated, the unit
c
ontinues to flash the green light once a minute for 8 hours. After 8 hours, the
l
ow battery “chirp” will resume. The Alarm will continue to operate as long as
A
C power is supplied. However, replace the batteries as soon as possible,
t
o maintain protection in event of a power outage.
To deactivate this feature: Press the Test/Silence button again. The unit will
go into Test Mode and the low battery warning will resume (LED flashes and
unit sounds “chirp” once a minute).
To silence Alarms in an interconnected series: To silence an interconnected
series of Smoke/CO Alarms, you must press the Test/Silence button on the
initiating alarm (The unit with the flashing red light; the red light will be off on
all other Alarms.). If you press the Test/Silence on any other Alarm, it will only
silence that unit, not the whole interconnected series.
W
hen the Smoke Alarm is Silenced...
The Smoke Alarm will remain silent for up to 15 minutes, then return to
normal operation.
If the smoke has not cleared–or continues to increase–the device will go
back into alarm.
LATCHING FEATURES
Alarm Latch is activated after an Alarm is exposed to alarm levels of smoke.
This feature will only work with AC power. After smoke levels drop below alarm
levels, the Red LED will begin to flash once every few seconds. It will continue
to flash or “latch” until you clear it by testing the alarm.
T
his feature helps emergency responders, investigators, or service technicians
i
dentify which unit(s) in your home were exposed to alarm levels of smoke.
T
his can help investigators pinpoint the source of smoke.
The Latching Alarm Indicator stays ON until you clear it, so it can alert you to
an alarm that occurred while you were away from home, even though smoke
present in the air has dropped below alarm levels.
Low Battery Latch is activated when the Alarm is in the "low battery
condition". When this occurs, the LED flashes Green On for 2 seconds/Off
for 2 seconds. This feature is designed to help you identify which Alarm
needs to have the battery replaced. Although, the Alarm will sound the low
battery chirp approximately once every minute, sometimes during the initial
stages of "low battery", the Alarm will chirp in greater intervals than one
minute, sometimes up to several hours, until the battery reaches a steady
low battery level. This innovative feature eliminates the frustration of waiting
for and/or identifying which unit is chirping.
“SMART INTERCONNECT” FEATURE
This Alarm includes "Smart Interconnect" which enables the Alarm to be
interconnected with other First Alert
®
and BRK Smoke, Heat, and "Smart
Interconnect" CO Alarms. When smoke is detected, all Alarms will sound
the smoke horn pattern. When CO is detected, "Smart Interconnect" Alarms
will sound the CO horn pattern. Alarms that do not have the "Smart
Interconnect" feature will remain silent during a CO alarm.
ABOUT SMOKE ALARMS
Battery (DC) operated Smoke Alarms: Provide protection even when electricity
fails, provided the batteries are fresh and correctly installed. Units are easy to
install, and do not require professional installation. They do not, however, provide
interconnected functionality.
A
C powered Smoke Alarms: Can be interconnected so if one unit senses smoke,
a
ll units alarm. They do not operate if electricity fails. AC with battery (DC) back-up:
w
ill operate if electricity fails, provided the batteries are fresh and correctly installed.
A
C and AC/DC units must be installed by a qualified electrician.
W
ireless Interconnected Alarms: Offer the same interconnected functionality as
w
ith hardwired alarms, without wires. Units are easy to install and do not require
p
rofessional installation. They provide protection even when electricity fails, provided
t
he batteries are fresh and correctly installed.
Smoke Alarms for Solar or Wind Energy users and battery backup power
systems: AC powered Smoke Alarms should only be operated with true or pure
sine wave inverters. Operating this Smoke Alarm with most battery-powered
UPS (uninterruptible power supply) products or square wave or “quasi sine wave”
inverters will damage the Alarm. If you are not sure about your inverter or UPS
type, please consult with the manufacturer to verify.
Smoke Alarms for the hearing impaired: Special purpose Smoke Alarms should
be installed for the hearing impaired. They include a visual alarm and an audible
alarm horn, and meet the requirements of the Americans With Disabilities Act.
These units can be interconnected so if one unit senses smoke, all units alarm.
Smoke alarms are not to be used with detector guards unless the combination
has been evaluated and found suitable for that purpose.
All these Smoke Alarms are designed to provide early warning of fires if located,
installed and cared for as described in the user’s manual, and if smoke reaches the
Alarm. If you are unsure which type of unit to install, refer to NFPA (National Fire
Protection Association) 72 (National Fire Alarm and Signaling Code) and NFPA 101
(Life Safety Code). National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269-9101. Local building codes may also require specific units in new
construction or in different areas of the home.
IF YOU SUSPECT A PROBLEM
Smoke Alarms may not operate properly because of dead, missing or weak
batteries, a build-up of dirt, dust or grease on the Smoke Alarm cover, or
installation in an improper location. Clean the Smoke Alarm as described in
“Regular Maintenance,” and install a fresh battery, then test the Smoke Alarm
again. If it fails to test properly when you use the test button, or if the problem
persists, replace the Smoke Alarm immediately.
• If you hear a “chirp” approximately once a minute, replace the battery.
• If you experience frequent non-emergency alarms (like those caused
by cooking smoke), try relocating the Alarm.
• If the alarm sounds when no smoke is visible, try cleaning or relocating
the Alarm. The cover may be dirty.
• If the alarm does not sound during testing, make sure it is receiving
AC power from the household current.
Always discharge the branch circuit before servicing an AC or AC/DC
Alarm. First, turn off the AC power at the circuit breaker or fuse box. Next,
remove the battery from Alarms with battery back-up. Finally, press and
hold the test button for 5-10 seconds to discharge the branch circuit.
If the Alarm is still not operating properly, and it is still under warranty, please
see “How to Obtain Warranty Service” in the Limited Warranty.
Do not try fixing the alarm yourself – this will void your warranty!
RECOMMENDED PLACEMENT FOR HEARING
IMPAIRED SMOKE ALARMS WITH INTEGRATED
STROBE LIGHT
Smoke Alarms with Integrated Strobe lights intended for the hearing impaired
should be located in the bedroom where a hearing impaired person sleeps.
Additional alarms should be located in any room where a hearing impaired person
may be present and need to be notified of a smoke danger.
According to NFPA 72, for wall mounting, a 177 candela strobe light must be used
in a sleeping area when mounting height of lens is less than 24 inches (61 cm) from
the ceiling. A Smoke Alarm with an integrated Strobe light must be placed in
accordance with the Smoke Alarm placement recommendations.
For Wall Mounting the alarm should be between 4 inches and 12 inches (102 mm
and 305 mm) from ceiling to avoid the "dead air space". For Ceiling Mounting the
alarm should be placed at least 4 inches (102 mm) from wall or corner (see
"Locations to Avoid for Smoke Alarms" below). In addition, for wall or ceiling
mounting, the unit must be located within 16 linear feet (4.8 meters) from top of
lens to the pillow (see diagram on next page).
STROBE LIGHT OUTPUT FOR WALL & CEILING MOUNTING
The intensity of the strobe light gradually lessens as the angle increases. In other
words, the light is brightest directly in front of the strobe light and is progressively
less bright to either side. As required by Underwriters Laboratories Inc. (UL), the
following illustrations show how the strobe light is dispersed. Use them to help you
choose where to locate units for the hearing impaired.
PHOTOSENSITIVE EPILEPSY AND STROBE FLASH RATES
Individuals who are susceptible to photosensitive epilepsy might have an increased
probability for seizures with multiple strobe lights flashing asynchronously. The
frequency or speed of flashing light that is most likely to cause seizures varies
from person to person. Generally, flashing lights most likely to trigger seizures are
between the frequency of 5 to 30 flashes per second (Hertz). This strobe light
flashes at about 1 flash per second.
Under the Americans with Disabilities Act, most workplaces and places serving the
public, including theaters, restaurants, and recreation areas, are required to have
fire alarms, which flash as well as ring so that people who cannot hear or cannot
hear well will know that there is an emergency.
90 90
Angle
(
In Degrees)
Percent
L
ight Intensity
0
5
-25
30-45
5
0
55
6
0
65
7
0
75
8
0
85
90
100
9
0
75
5
5
45
4
0
35
3
5
30
3
0
25
25
4
545
0
9
0
9
0
4
5
4
5
0
WALL
LIGHT
LIGHT
C
EILING
FIGURE 1: Light Output
for Ceiling Mount
FIGURE 2: Light Output
for Wall Mount
R
ECOMMENDED PLACEMENT
RECOMMENDED LOCATIONS FOR
SMOKE ALARMS
Installing Smoke Alarms in Single-Family Residences
T
he National Fire Protection Association (NFPA), recommends one Smoke Alarm on
e
very floor, in every sleeping area, and in every bedroom. In new construction, the
S
moke Alarms must be AC powered and interconnected. See “Agency Placement
R
ecommendations” for details. For additional coverage, it is recommended that
y
ou install a Smoke Alarm in all rooms, halls, storage areas, finished attics, and
b
asements, where temperatures normally remain between 40˚ F (4.4˚ C) and 100˚ F
(
37.8˚ C). Make sure no door or other obstruction could keep smoke from reaching
t
he Smoke Alarms.
More specifically, install Smoke Alarms:
• On every level of your home, including finished attics and basements.
•
Inside every bedroom, especially if people sleep with the door partly or
completely closed.
•
In the hall near every sleeping area. If your home has multiple sleeping areas,
i
nstall a unit in each. If a hall is more than 40 feet long (12 meters), install a unit
a
t each end.
•
At the top of the first-to-second floor stairway, and at the bottom of the
b
asement stairway.
S
pecific requirements for Smoke Alarm installation vary from state to state and
f
rom region to region. Check with your local Fire Department for current require-
m
ents in your area. It is recommended AC or AC/DC units be interconnected
f
or added protection.
DO NOT stand close to the Alarm when the horn is sounding. Exposure
at close range may be harmful to your hearing. When testing, step away
when horn starts sounding.
Do not look directly at or touch the lens while the strobe light is flashing.
Doing so can hurt your eyes or burn your fingers.
• NEVER use an open flame of any kind to test this unit. You might
accidentally damage or set fire to the unit or to your home. The built-
in test switch accurately tests the unit’s operation as required by
Underwriters Laboratories, Inc. (UL).
• If the Alarm ever fails to test properly, replace it immediately.
Products under warranty may be returned to the manufacturer
for replacement. See “Limited Warranty” at the end of this manual.
WEEKLY TESTING
