LAVATORY FAUCET
■ Windemere
®
Collection
■ Two Handle Widespread Deck Mount
STANDARD SPECIFICATIONS:
• Max flow rate: 1.50 GPM @ 60 PSI,
5.68 L/Min @ 414 kPa
• Max flow rate (ECO models only): 1.20 GPM @ 60 PSI,
4.54 L/Min @ 414 kPa
• Solid brass end valves and spout body
• Three hole mount
• Hot and cold stems are interchangeable
• 1/4 turn handle stops
• 3/8" O.D. coper supply lines
• Control mechanism is a rotating cylinder type with
stainless steel plate and 90° rotation, with replaceable
non-metallic seats
• Models have drain with pop-up type fitting with
plated flange and stopper
WARRANTY:
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes: or, for
commercial users, for 5 years from date of purchase.
• 5 year limited warranty on electronic parts (other than
batteries); or, for commercial users, for 1 year from the
date of purchase. No warranty is provided on batteries.
Certified by
CSA Group
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
• EPA WaterSense
®
• Verified compliant with 0.25% weighted average Pb
content regulations
35996LF-▲
35996LF-▲-ECO
▲ Designate proper finish suffix

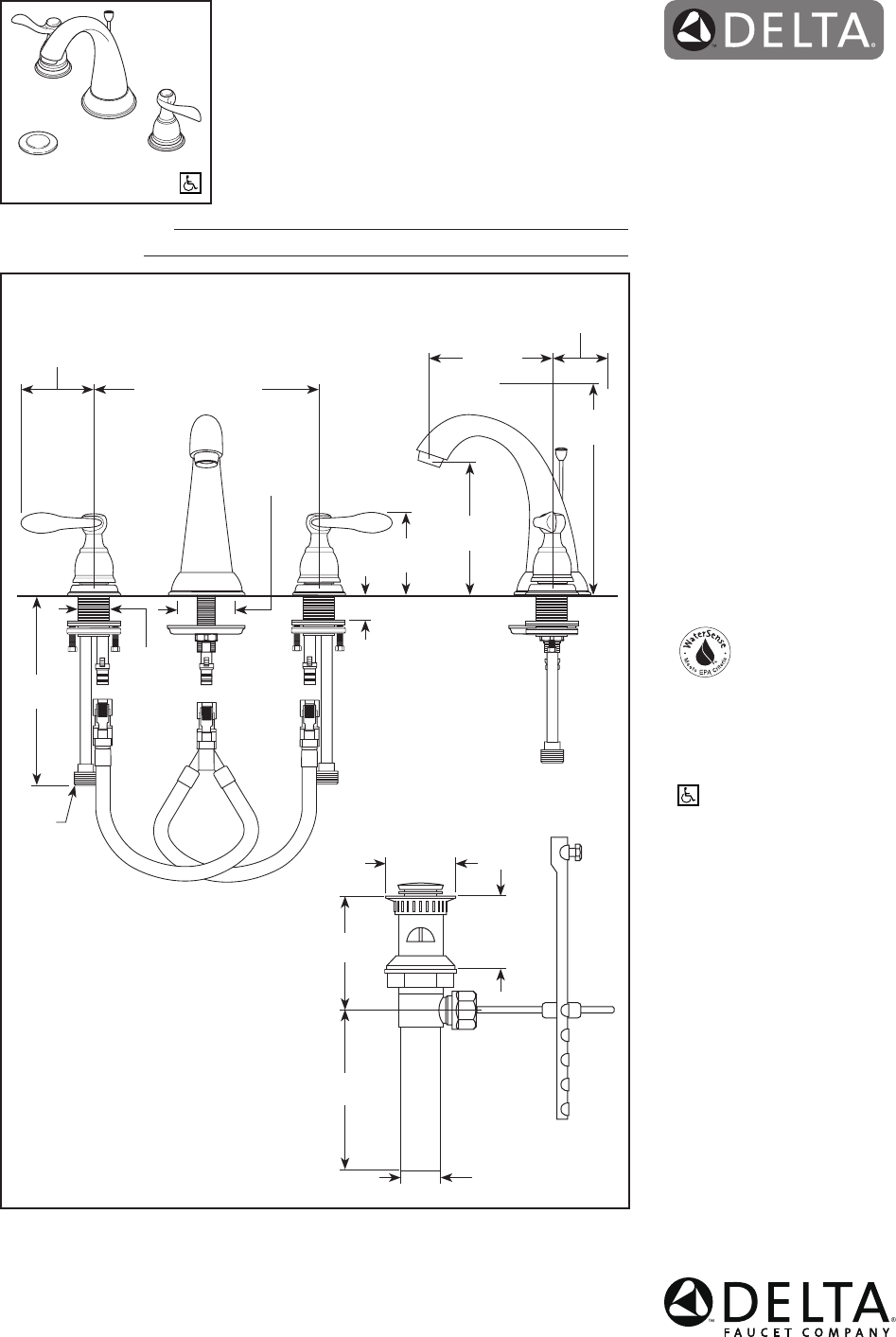

7"
(178 mm)
3"
(77 mm)
1 1/8"
(29 mm)
max. deck
thickness
4 9/16"
(117 mm)
6 16/16"
(173 mm)
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
1/2"-14
NPSM
2 1/8"
(54 mm)
Dia.
1 5/8" (42 mm)
to
2 3/8" (61 mm)
3 1/2"
(89 mm)
4 7/8"
(124 mm)
1 1/4"
(32 mm)
Dia.
6" to 16"
(152 mm to 406 mm)
2 3/4"
(70 mm)
1 1/8"
(29 mm)
3x 1 1/8" to
1 1/2" (29 mm
to 38 mm)
hole size
4 13/16"
(123 mm)
