1. Remove the louvers and screens or glass door.
2. Remove the burner/sandpan assembly, valve and pilot assembly from the firebox bottom
plate. Flip the plate over and leave the plate in place to support the gas insert.
3. Remove the facing cross members with an abrasive cutting disc or plasma cutter.
4. Remove the front top baffle with an abrasive cutting disc or plasma cutter.
5. Remove the flue deflector with a pair of sheet metal snips.
6. Replace the top louver.
7. The preparation of the host gas fireplace is complete. See Appendix A of the Euro-25-1
manual for further instructions. All installation requirements in the manual must also be
carefully observed and followed.
8. Use Archgard BCV5 connector kit to connect the insert to the host’s B-vent or connect a 4”
diameter flexible aluminum gas vent from the insert to the host’s vent cap.

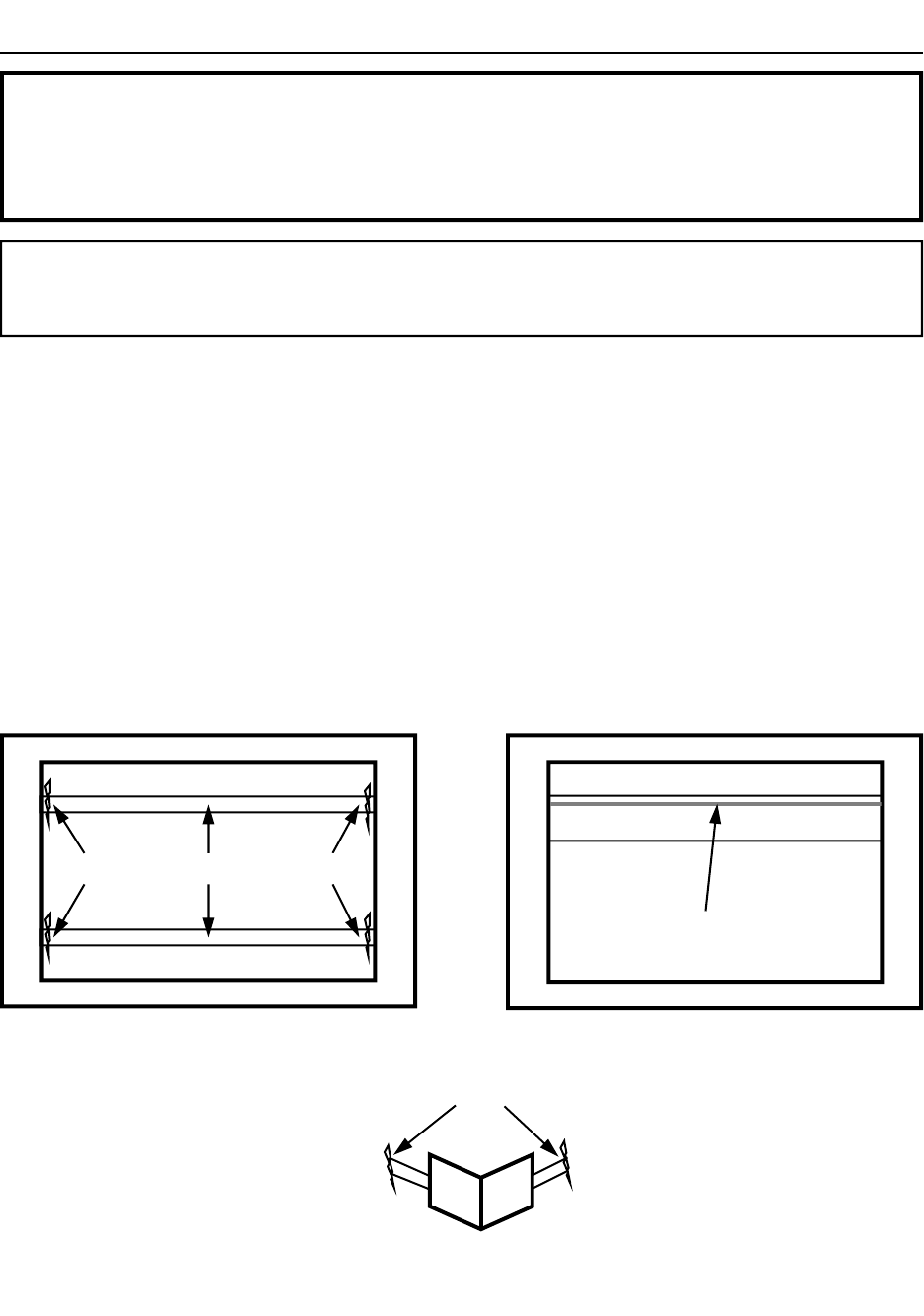

ITEM 3.
ITEM 5.
CUT CUT REMOVE
CUT
CUT OFF
ITEM 4.
INSTALLATION INSTRUCTIONS
INSTALLING THE EURO 25-1 GAS FIREPLACE INSERT HEATING APPLIANCE
INTO VENTED ZERO-CLEARANCE GAS FIREPLACE:
ARCHGARD T-100 SERIES
CAUTION: Installation must be conducted by a qualified gas appliance installer. Gas and
electrical power must be disconnected from the host gas fireplace before
installation can begin.
