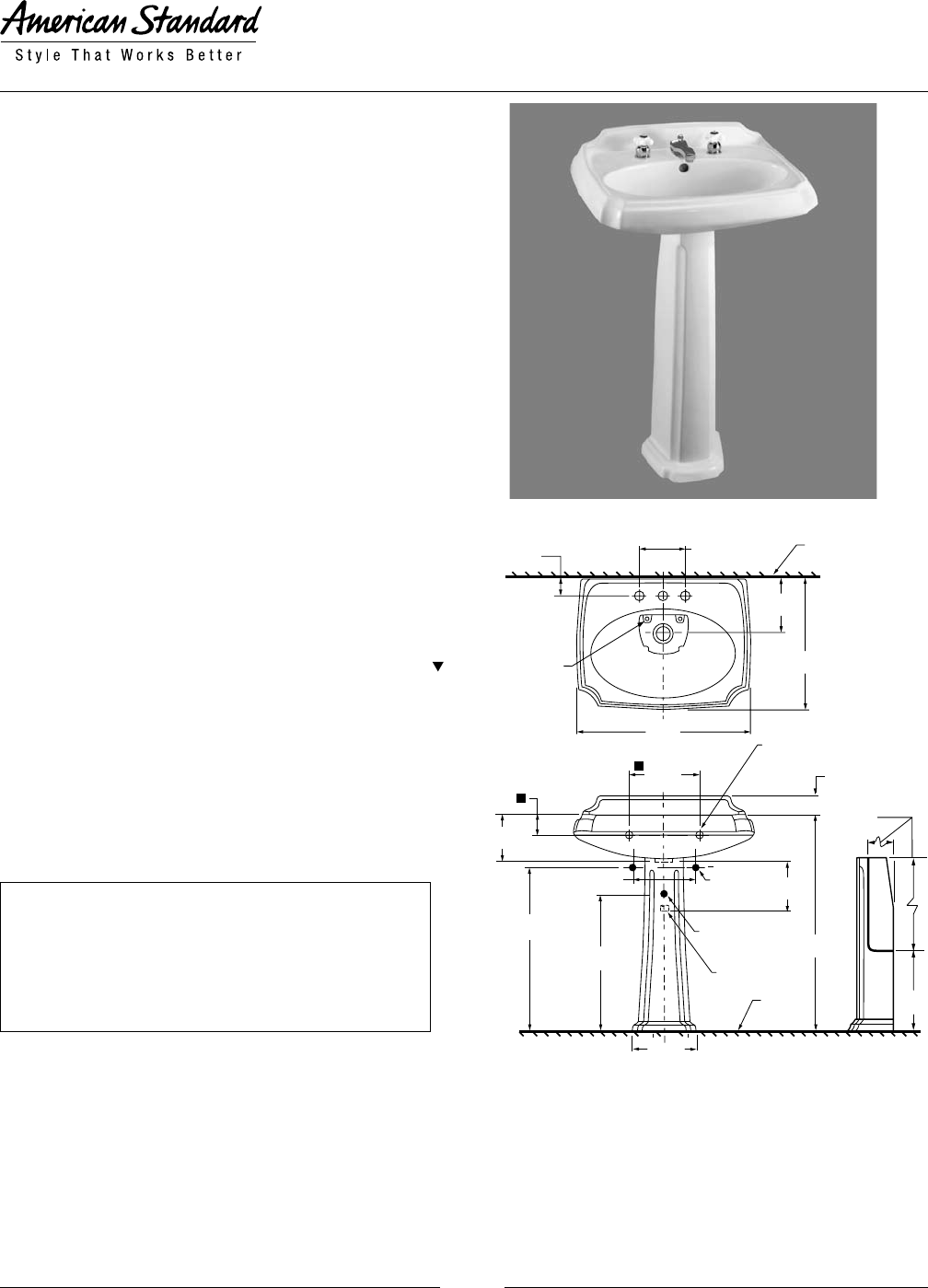

ANTIQUITY™
PEDESTAL SINK
VITREOUS CHINA
ANTIQUITY™ PEDESTAL SINK
Turn-of-the-century detailing on lavatory
and pedestal
Made from vitreous china
Rear overow
Supplied with mounting kit
Faucet ledge with large deck area
(faucet not included)
• Design matched to Antiquity toilets
0228.080 Faucet holes on 8" (203mm) centers
(Illustrated)
0224.040 Faucet holes on 4" (102mm) centers
Nominal Dimensions:
610 x 483 x 864mm
(24-1/2" x 19" x 34")
Separate Components:
0228.018 Pedestal top-8" (203mm) centers
0224.014 Pedestal top-4" (102mm) centers
731007-400 Pedestal only
Bowl sizes:
483mm (19") wide
298mm (11-3/4") front to back
140mm (5-1/2") deep
Compliance Certications -
Meets or Exceeds the Following Specications:
• ASME A112.19.2M for Vitreous China Fixtures
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TRAP ARE
SUGGESTED.
PEDESTAL ANCHORING SCREWS NOT INCLUDED.
SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
356mm
(14)
DRAIN
CHASE
FINISHED
WALL
483mm
(19)
622mm
(24-1/2)
89mm
(3-1/2)
203mm
(8)
203mm
(8)
PEDESTAL ANCHORING
SCREW HOLES
8mm (5/16) DIA.
264mm
(10-3/8)
REF.
203mm
(8)
203mm
(8)
178mm
(7)
13mm
(1/2") DIA.
HOLES FOR
ANCHOR BOLTS
864mm
(34)
*
578mm
(22-3/4)
*
521mm
(20-1/2)
51mm
(2)
241mm
(9-1/2)
1-1/4 O.D.
WASTE
SUPPLIES AS
REQUIRED
1-1/4 O.D.
TAILPIECE
FINISHED
FLOOR
To Be Specied:
Color: White Bone Linen
Faucet*:
Faucet Finish:
❏ Supplies:
1-1/4" Trap:
* See faucet section for additional models available
Revised 2/08
