J26
BARRIER FREE
© 2008 AS America Inc.
SAVONA™
COUNTERTOP SINK
VITREOUS CHINA

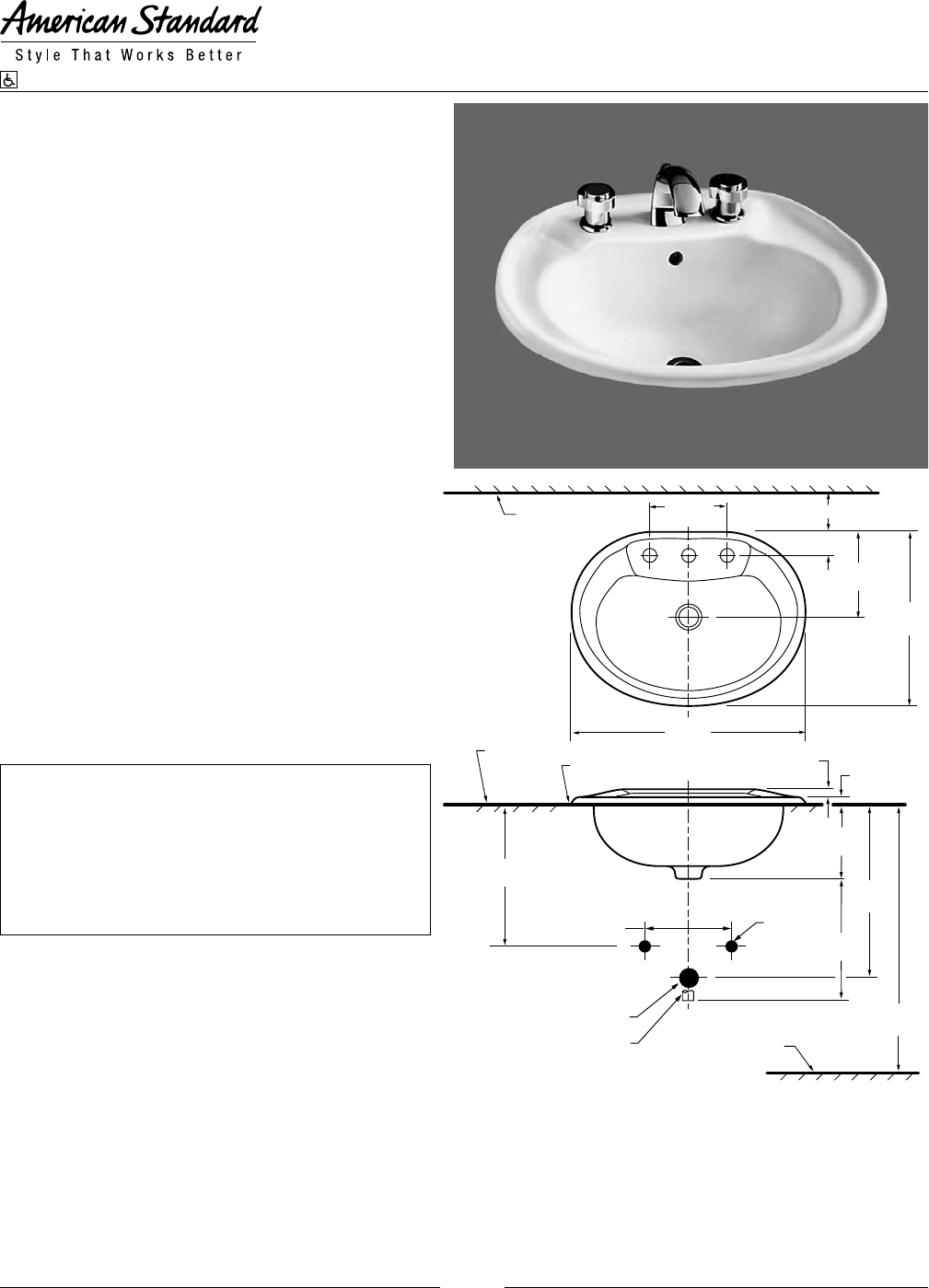

SAVONA™ COUNTERTOP SINK
• Raised faucet deck with backsplash rim
• Made from vitreous china
• Self-rimming with cutout template supplied
• Soap/accessory ledge
• Rear overow
• Design matched to Savona toilets
• Shown with 8871.902 Lexington spread faucet
❏ 0186.803 Faucet holes on 8" (203mm) centers
(illustrated)
❏ 0186.403 Faucet holes on 4" (102mm) centers
❏ 0186.001 Center hole only
Nominal Dimensions:
559 x 432mm
(22" x 17")
Bowl sizes:
406mm (16") wide
254mm (10") front to back
152mm (6") deep
Compliance Certications -
Meets or Exceeds the Following Specications:
• ASME A112.19.2M for Vitreous China Fixture
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TRAP ARE
SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
Revised 2/08
FINISHED WALL
OR SPLASHBACK
216mm
(8-1/2)
432mm
(17)
70mm
(2-3/4)
203mm
(8)
OPTIONAL
260mm*
(10-1/4)
178mm
(7)
25mm
(1)
25mm
(1)
178mm
(7)
318mm*
(12-1/2)
787mm
(31)
FINISHED
FLOOR
559mm
(22)
203mm
(8)
1-1/4 O.D.
TAILPIECE
1-1/4 O.D.
WASTE
SUPPLIES
AS REQ'D
COUNTERTOP
(BY OTHERS)
SEALING
COMPOUND
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Silver ❏ Fawn Beige ❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
